Measurement, Checking

Measurement, checking, 02J, 5 Spd. M/T

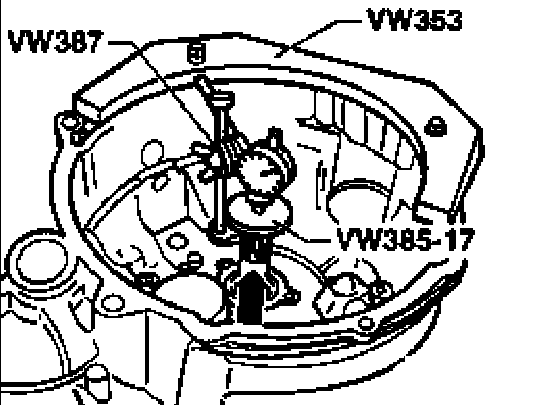

- Install measuring appliance and dial gauge
- Rotate input shaft so that tapered roller bearings settle.
- Press input shaft in direction of arrow.
- Bearing play should be min. 0.01... max. 0.09 mm.

Note: If the bearing clearance cannot be measured, but input shaft play is perceptible and the input shaft turns freely, the adjustment is acceptable.
