Adjustment Overview

Adjustment overview, 02J, 5 Spd. M/T

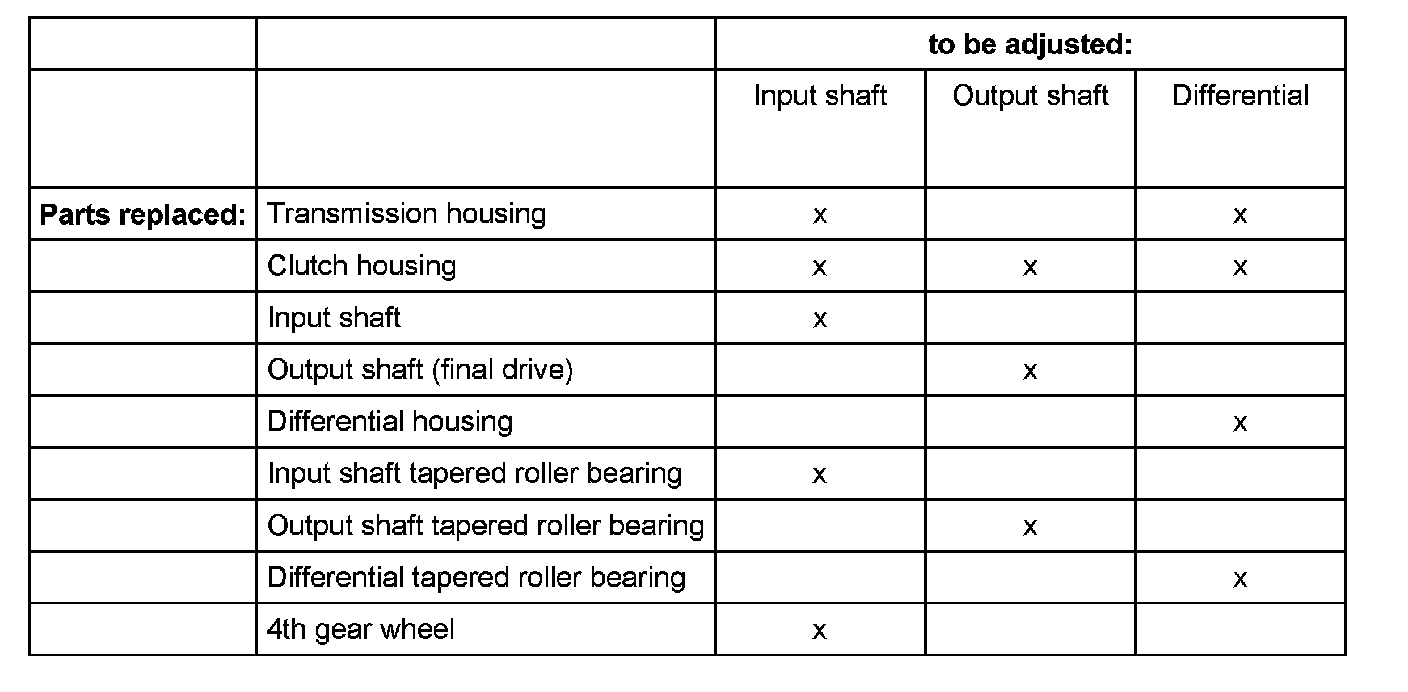

Note: If repairs have been carried out to the transmission it is necessary to adjust the input shaft, output shaft or differential if components have been replaced which have a direct effect on the adjustment of the transmission. Refer to the following table to avoid unnecessary adjustment:
