Transmission Overview

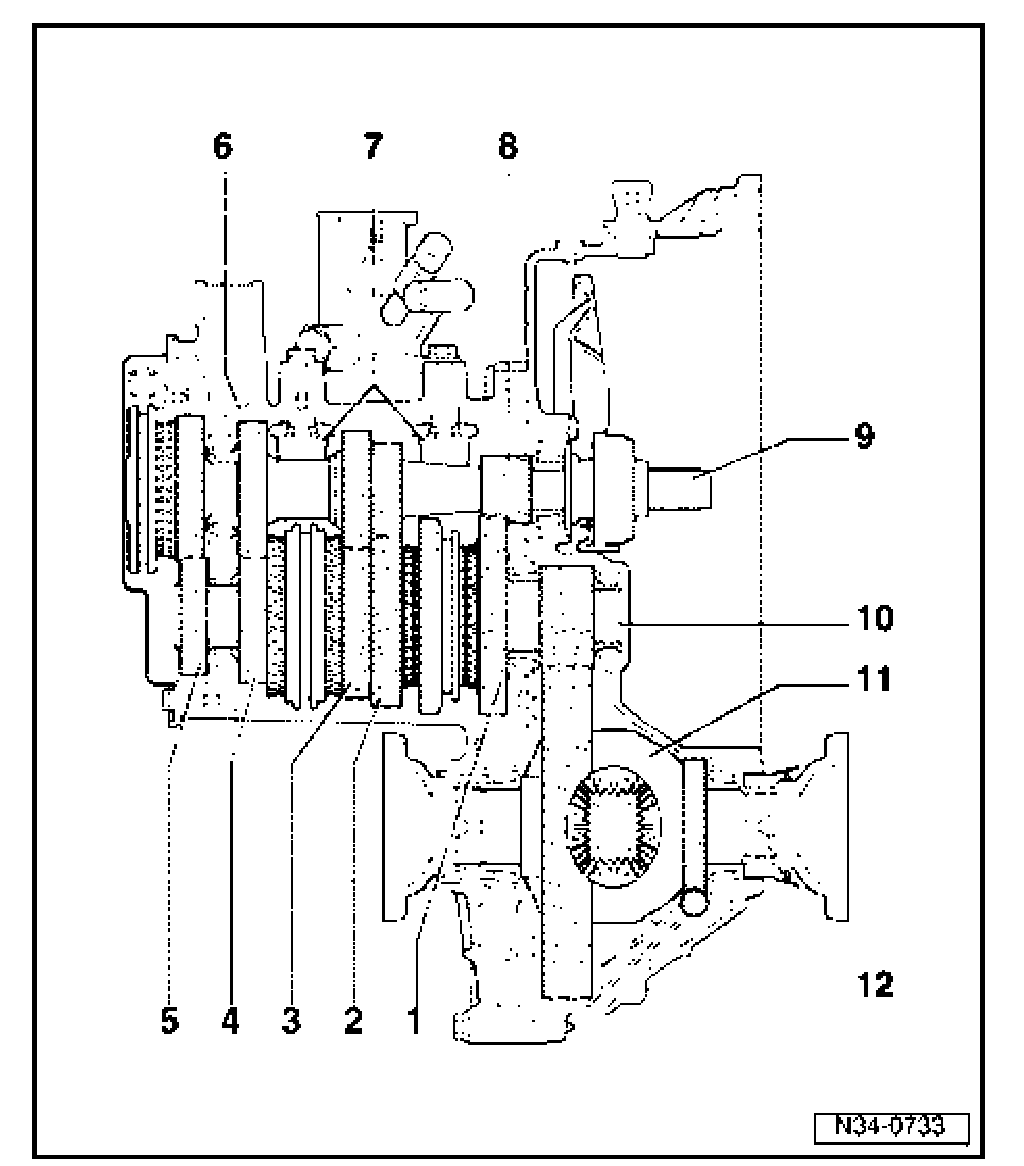

Transmission overview, 02J, 5 Spd. M/T





1. 1st gear
2. 2nd gear
3. 3rd gear
4. 4th gear
5. 5th gear
6. Transmission housing

7. Selector mechanism
^ (Selector forks)

8. Input gear for 1st and reverse gear
9. Input shaft
10. Output shaft
11. Differential
12. Clutch housing
