Transmission Housing and Selector Mechanism, Removing and Installing

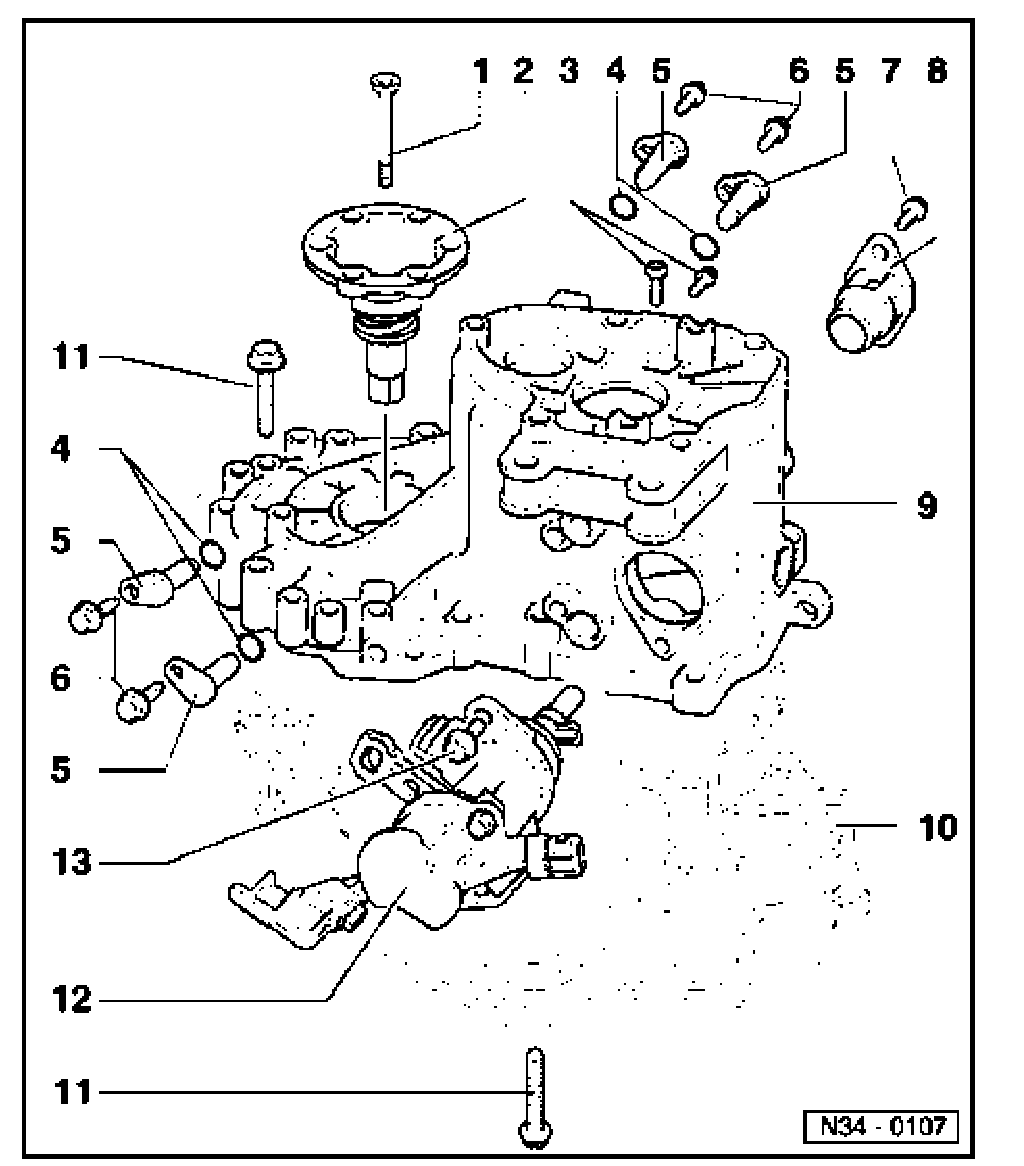

Transmission housing and selector mechanism, removing and installing, 02J, 5 Spd. M/T





1. Cone head bolt, 25 Nm
2. Flange shaft with spring
^ Complement

3. Torx socket head bolt, 30 Nm
^ For reverse shaft support
^ Self-locking
^ Always replace

4. O-ring
^ Always replace

5. Pivot pin
6. Bolt, 25 Nm





7. Bolt, 25 Nm
8. Cover plate
9. Transmission housing

10. Clutch housing

11. Hex bolt, 25 Nm then turn 90° further
12. Selector mechanism
^ Disassembling and assembling on vehicles as of 06.99

13. Hex bolt, 25 Nm
