Oil Seal For Right Flanged Shaft, Replacing

Oil seal for right flanged shaft, replacing, 02M, 5 and 6 Spd. M/T

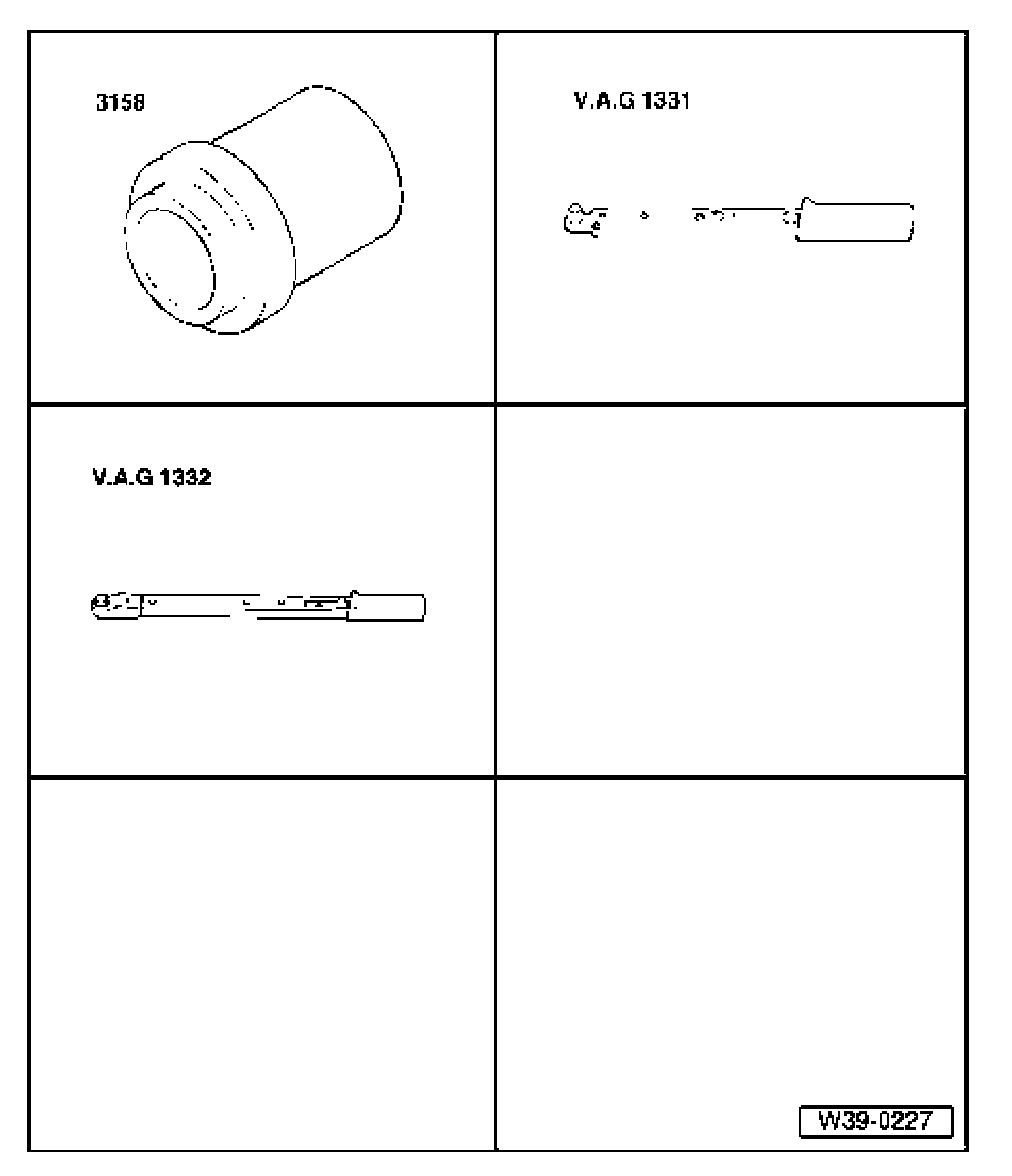

Special tools and equipment:

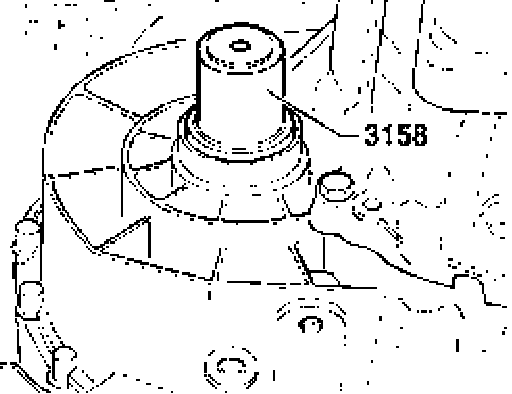

- 3158 Drift sleeve
- V.A.G 1331 Torque wrench or equivalent
- V.A.G 1332 Torque wrench or equivalent

Removing
- Transmission is mounted in vehicle.
- If installed, remove center and right part of insulation tray below engine/transmission.
- Turn steering to right onto full lock stop.
- Remove axle shaft.
- Remove flanged shaft securing bolts by threading two bolts into flange and counterholding flanged shaft using a lever.
- Place container under transmission.
- Remove flanged shaft with spring.
- Pry seal out with lever.

Installing





- Drive new seal in onto stop, do not tilt seal when doing this.
- Fill space between sealing lip and dust lip with grease G052 128 A1.
- Insert flanged shaft.
- Secure flanged shaft with countersunk bolt and tighten to specified torque.
- Install axle shaft:
- Connect ball joint to control arm using new bolts at old impression marks:
- Install wheel:
- Check transmission oil.
- Install sound insulation tray.
