02J, 5 SPD. M/T

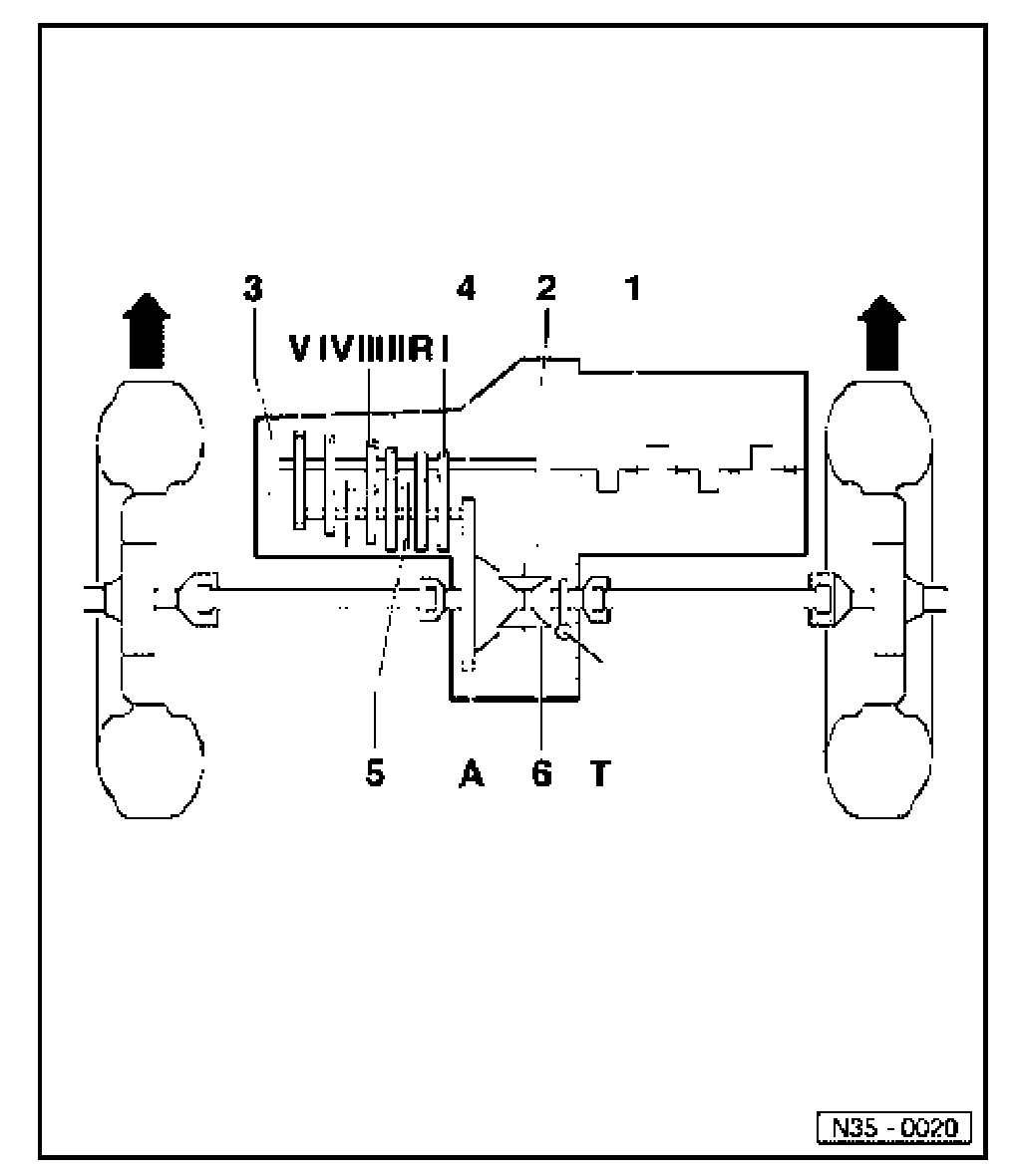

Transmission layout, 02J, 5 Spd. M/T





Designation
1 -Engine
2 -Clutch
3 -Transmission
4 -Input shaft
5 -Output shaft/pinion shaft
6 -Differential
Arrows point in direction of travel

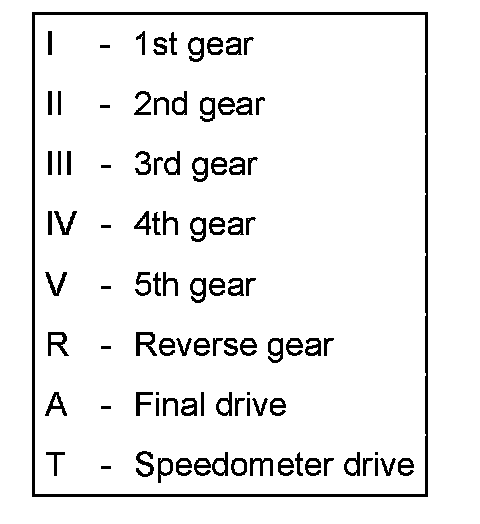

Gear ratios





Arrows point in direction of travel
