Transmission Identification

Transmission identification, 02M, 5 and 6 Spd. M/T
The 02M manual transmission is installed as a 5- or 6-speed transmission in conjunction with a 4-cylinder engine in the New Beetle from 1998.

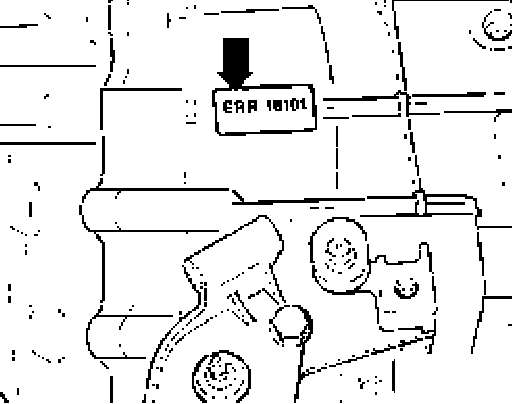

Location on transmission

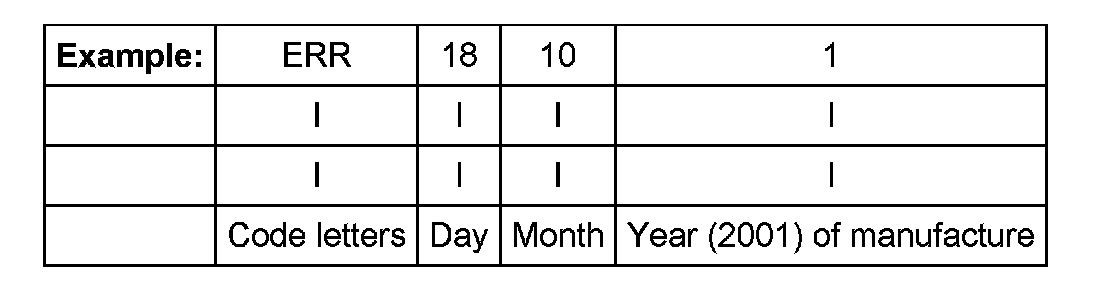

Code letters and date of manufacture (arrow)





Code letters and date of transmission manufacture (arrow)





Additional data depends on manufacture.

Note: The transmission code letters are also shown on the vehicle identification plates.
