Transmission Identification

Transmission identification, 02J, 5 Spd. M/T
The 5-speed manual transmission 02J is installed in the New Beetle from 1998 in conjunction with 4-cylinder engines.





Location on transmission

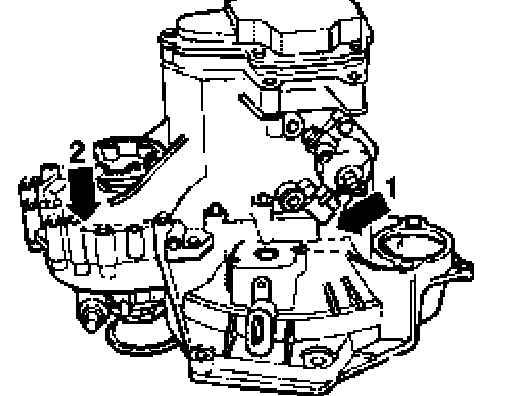

Code letters and date of manufacture (arrow 1) manual transmission 02J (arrow 2)

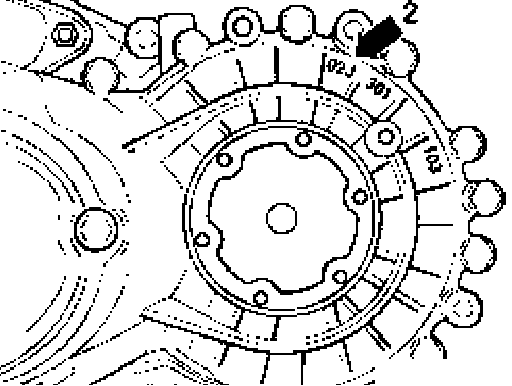

Manual transmission 02J (arrow -2-)

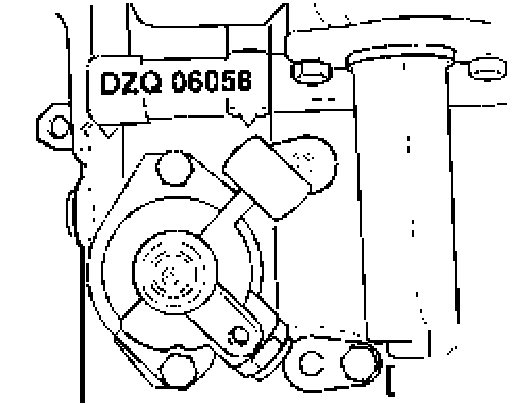

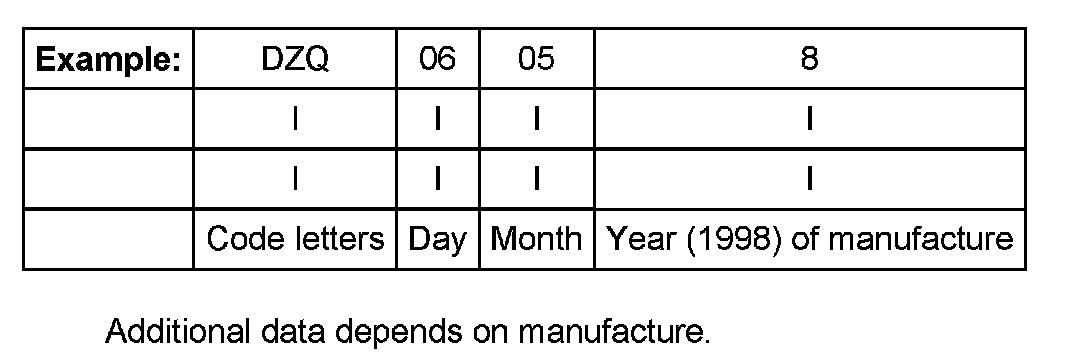

Code letters and date of manufacture of transmission





Additional data depends on manufacture.

Note: The transmission code letters are also shown on the vehicle identification plates.
