II - Front Drive Axle With Triple Roller Joint AAR 2000, Servicing

II - Front drive axle with triple roller joint AAR 2000, servicing

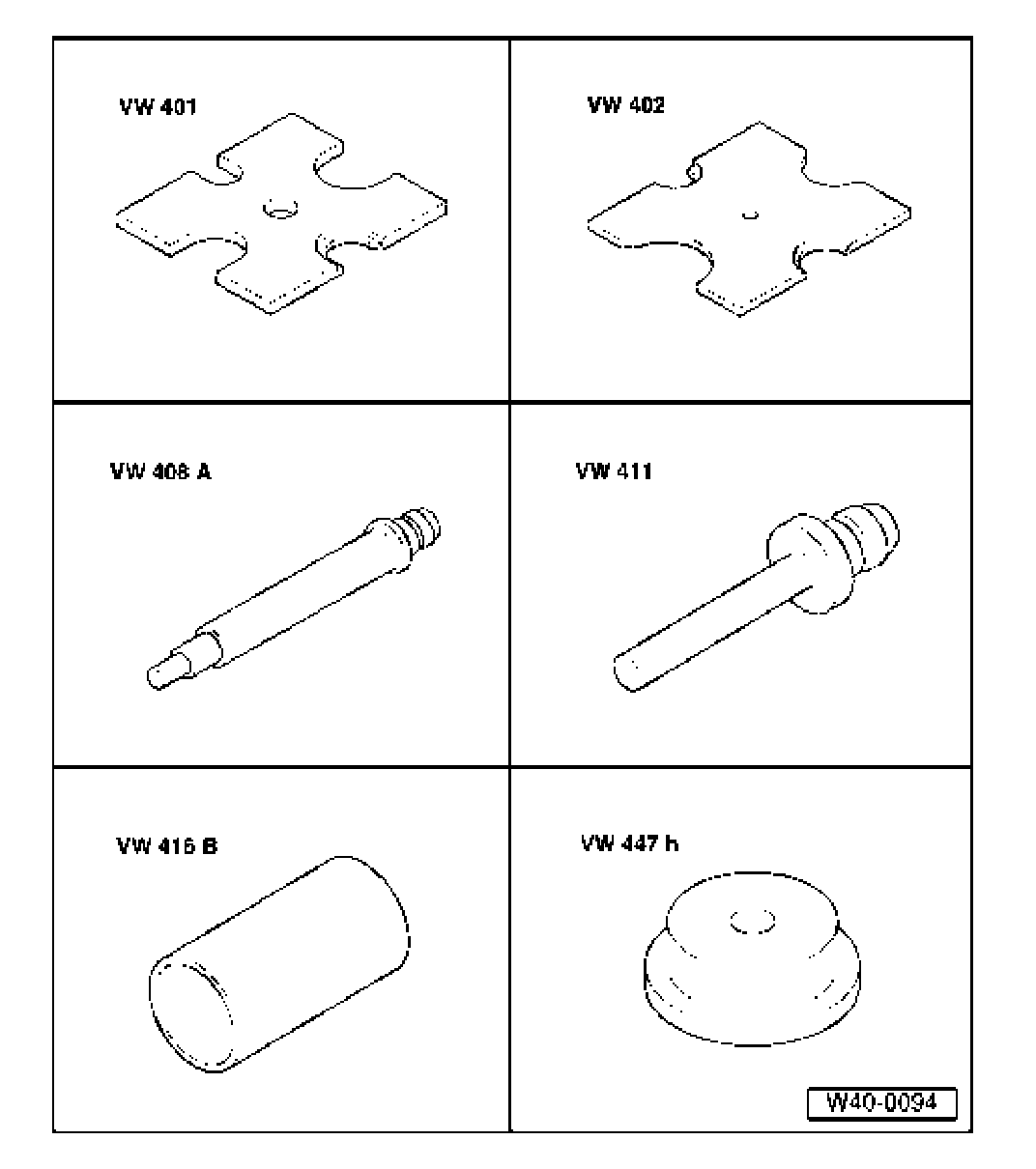

Special tools, testers and auxiliary items required:

- Thrust plate VW 401
- Thrust plate VW 402
- Punch VW 408 A
- Punch VW 411
- Tube VW 416 B
- Thrust pad VW 447 H

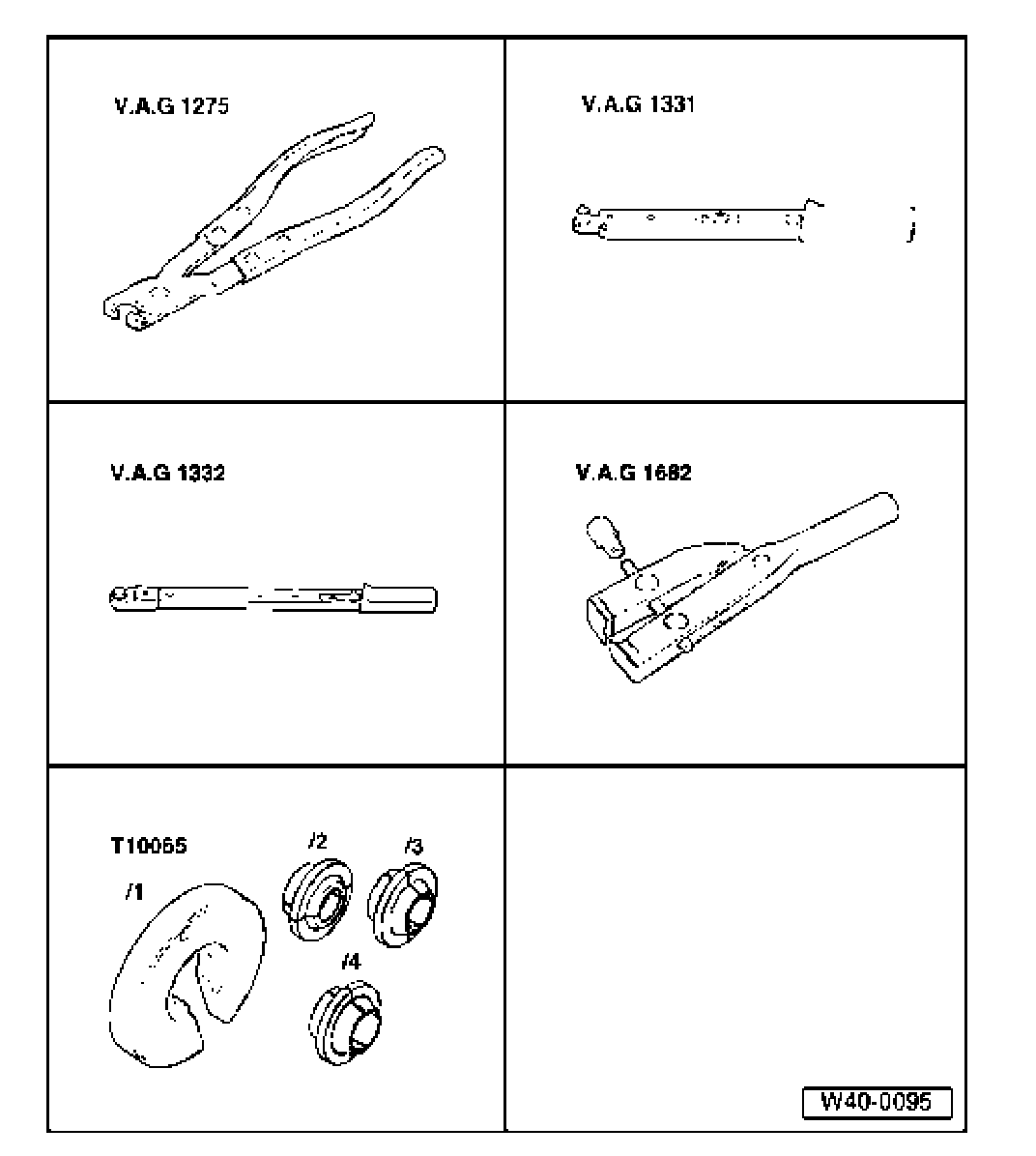

Special tools, testers and auxiliary items required:

- Pliers V.A.G 1275
- Torque wrench V.A.G 1331
- Torque wrench V.A.G 1332
- Pliers V.A.G 1682
- Assembly tool T10065

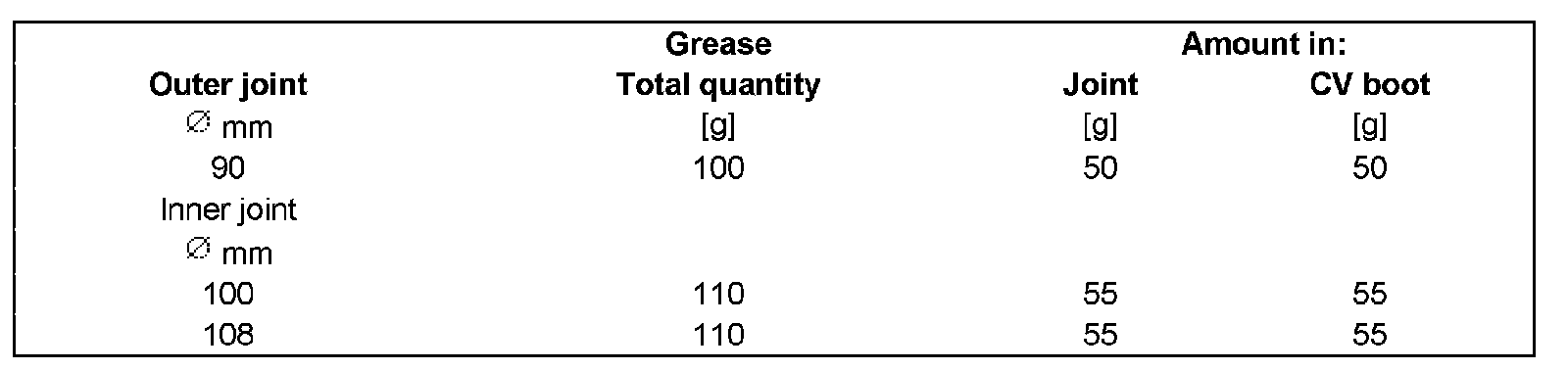

Grease quantities and types
Grease filling of joints with high temperature grease. Electronic parts catalog "ETKA"

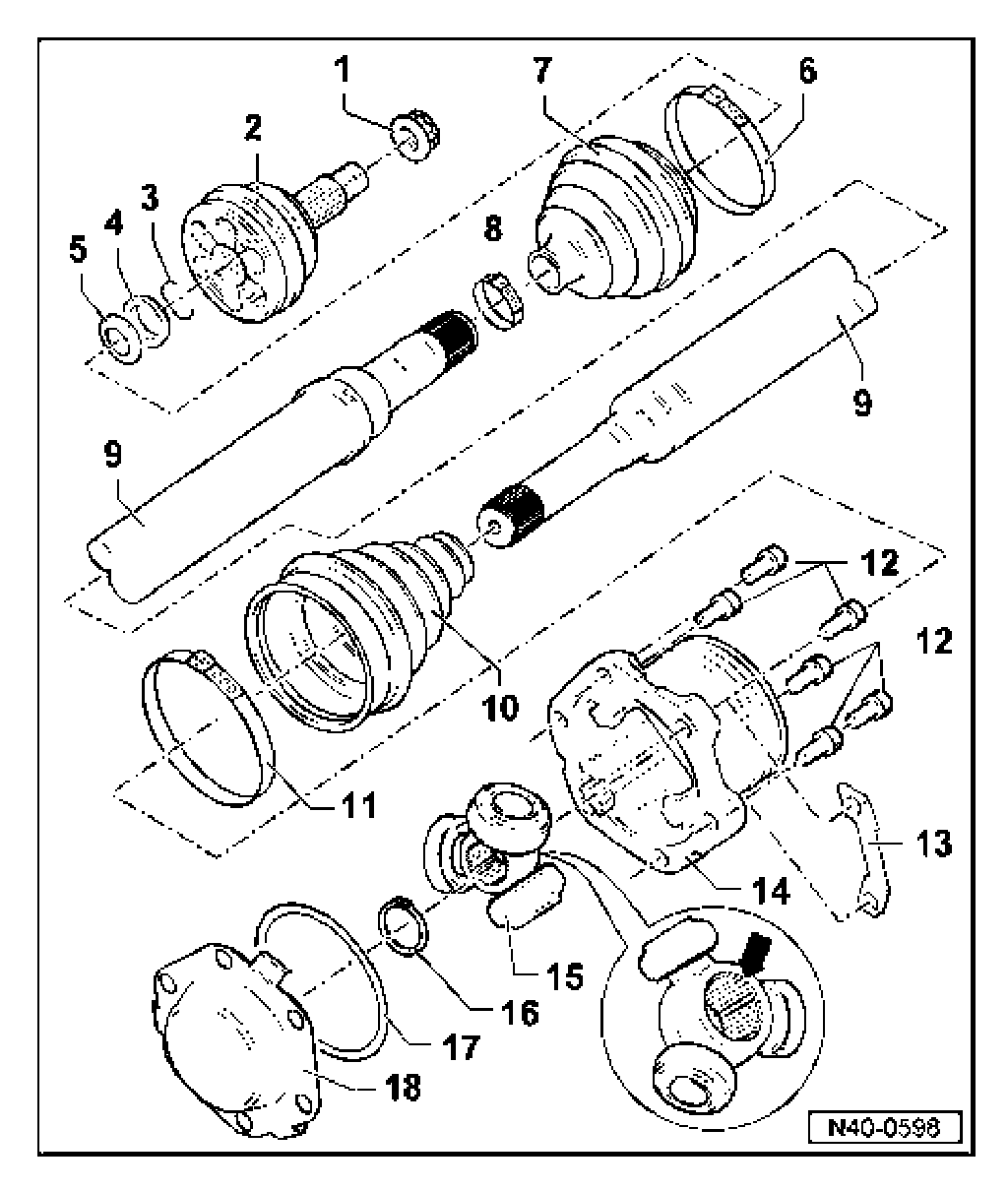

1. Self-locking 12-point nut
^ Tightening
^ Remove any corrosion in the threads of outer joint before threading nut on.

2. Outer CV joint
^ Replace only as complete unit
^ Removing
^ Installing: Drive onto shaft using plastic hammer, until expanded securing ring contracts
^ Checking Outer Constant Velocity (CV) joint, removing, checking and installing
^ Greasing

3. Circlip
^ insert in groove on shaft

4. Thrust washer
^ Installed position

5. Dished washer
^ Large (concave side) rests against thrust washer

6. Clamp
^ Always replace after removal
^ Tension using CV joint boot clamp tool V.A.G 1682

7. CV boot
^ Check for tears and scuffing

8. Clamp
^ Always replace after removal
^ Tightening

9. Axle shaft
10. CV boot for triple roller joint
^ Check for tears and scuffing

11. Clamp
^ For triple roller joint
^ Always replace after removal
^ Tensioning

12. Socket head bolt
^ Tightening torques

13. Backing plate
^ Only installed on joints with dia. 108 mm

14. Joint piece
15. Triple roller star with rollers
^ Chamfer - arrow - faces splines of drive axle

16. Circlip
^ Always replace

17. Sealing ring
^ Always replace

18. Cover
^ Always replace
