02M, 5 and 6 SPD. M/T

Clutch release mechanism, servicing, 02M, 5 and 6 Spd. M/T

Special tools and equipment

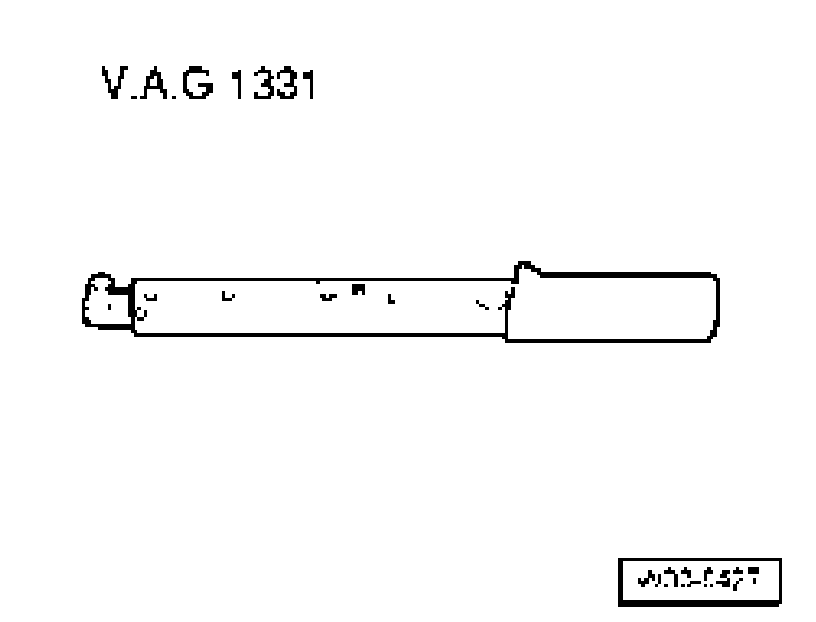

V.A.G 1331 Torque wrench or equivalent:

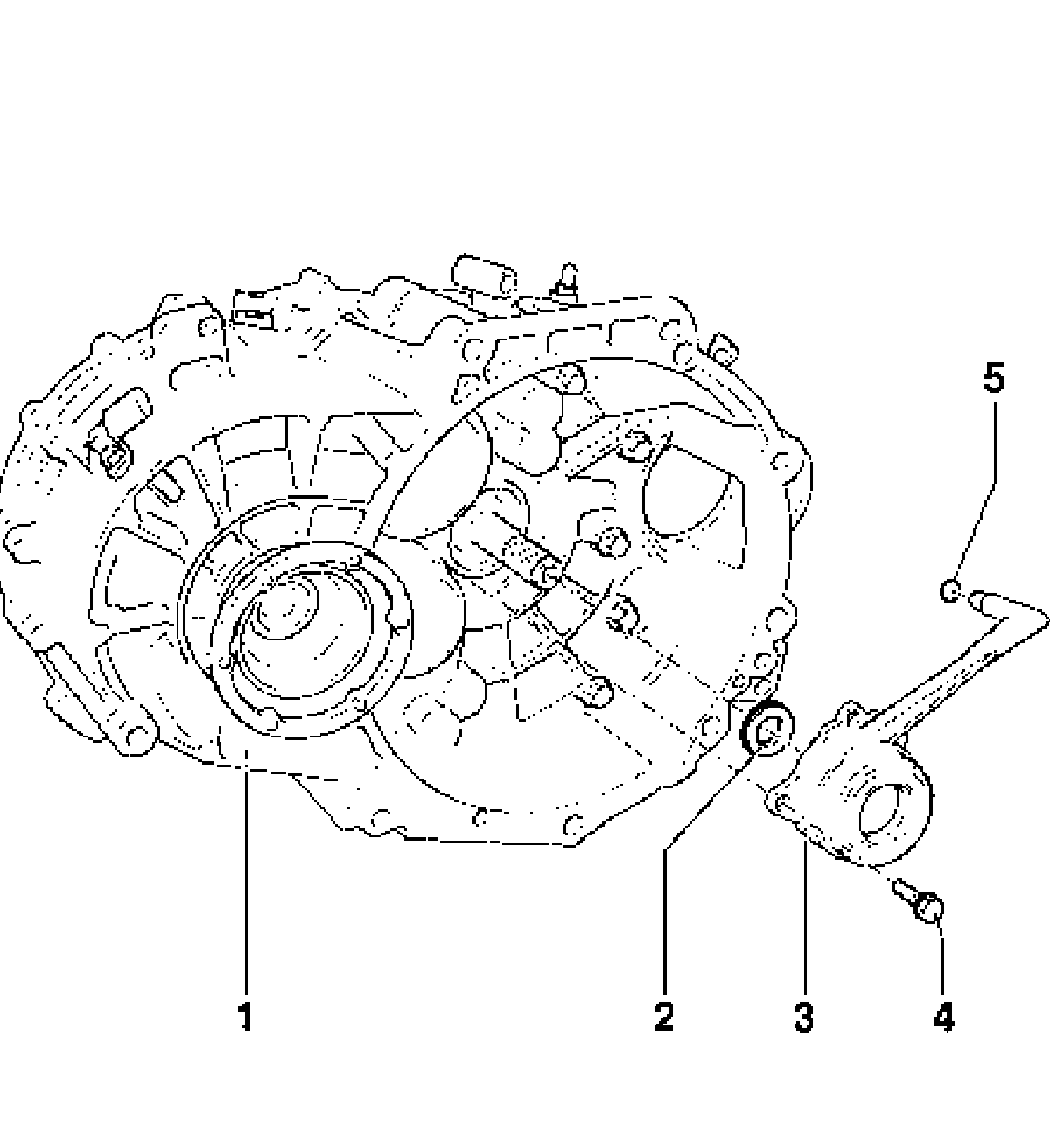

1. Transmission
2. Input shaft oil seal
^ Replacing

3. Slave cylinder with release bearing
^ One unit; can only be replaced together
^ Do not wash out bearing, only wipe
^ Replace noisy bearings together with slave cylinder

4. Bolt, 12 Nm
^ Qty. 3

5. Seal
^ Pull onto pipe/hose connection
^ Insert with brake fluid
