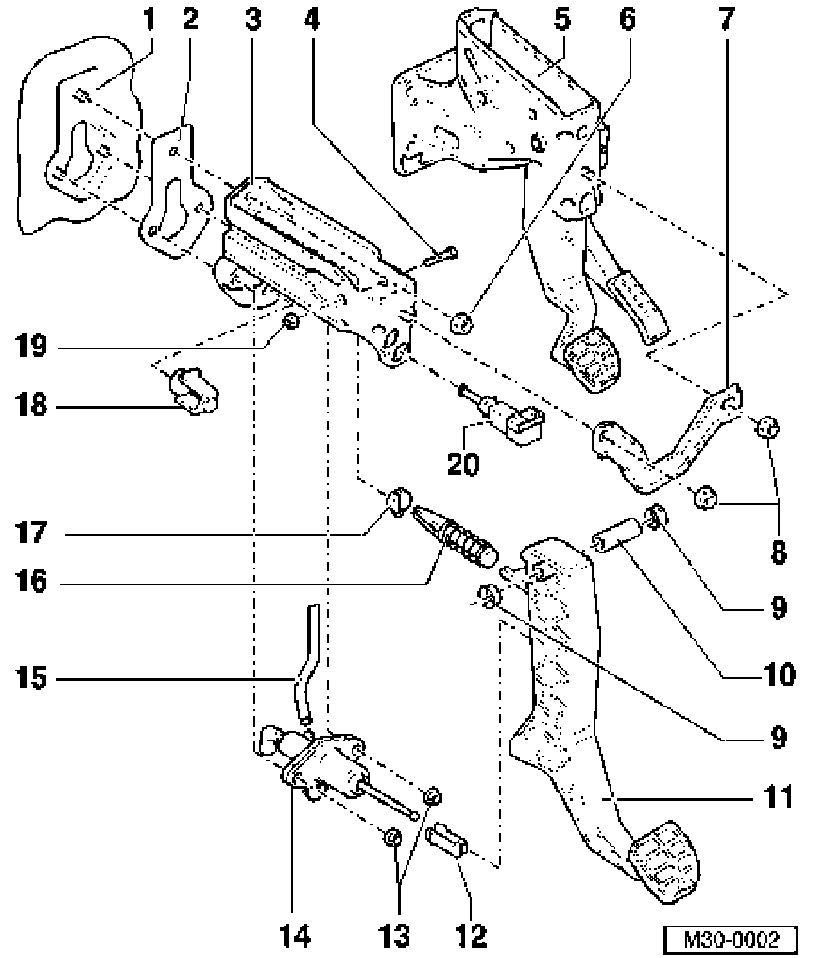

Pedal Assembly, Overview

Pedal assembly, overview, 02M, 5 and 6 Spd. M/T





1. Bulkhead
^ With support and clutch master cylinder housing

2. Gasket
^ Always replace

3. Support
^ For clutch pedal housing

4. Screw
5. Support
^ For accelerator and brake pedal housing

6. Hex nut, self-locking, 25 Nm
^ Always replace

7. Connecting plate
8. Hex nut, self-locking, 25 Nm
^ Always replace

9. Bearing socket
10. Mounting pin
11. Clutch pedal
12. Bearing bracket
13. Hex nut, self-locking, 25 Nm
^ Always replace

14. Clutch master cylinder
15. Circulation hose
16. Overcenter spring
17. Overcenter spring seating
^ Fit into support
^ To replace, remove and install clutch master cylinder

18. Stop flange
^ For clutch pedal
^ Installed position

19. Hex nut, self-locking, 25 Nm
^ Always replace

20. Clutch pedal switch
^ Remove with left turn of 90° and pull out from support
^ Install in support and turn right 90°
