Clutch Pedal, Removing and Installing

Clutch pedal, removing and installing, 02M, 5 and 6 Spd. M/T

Special tools and equipment

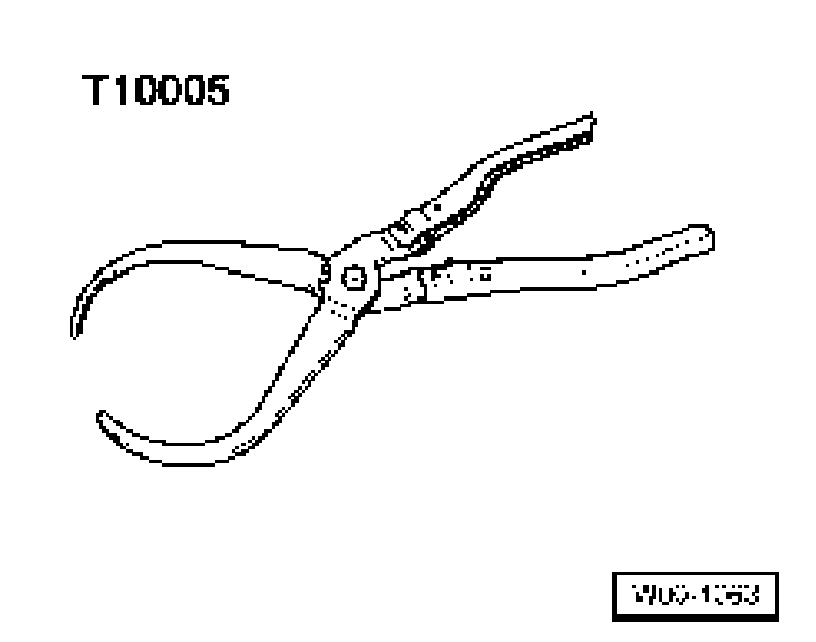

T10005 Pliers:

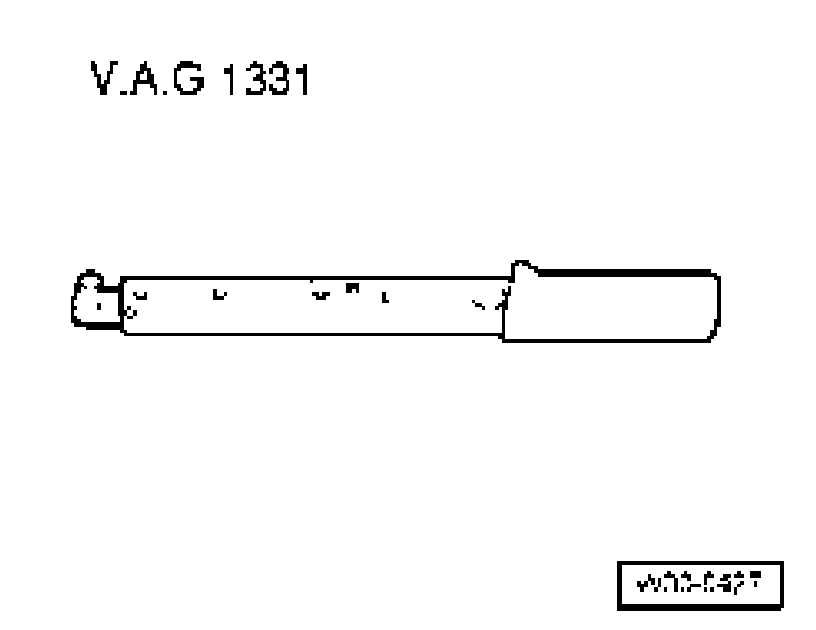

VAG 1331 Torque wrench:

Removing
- Check whether a coded radio is fitted. If so, obtain anti-theft coding.
- Turn clutch pedal switch 45 to left and pull out from support.
- With ignition switched off disconnect battery ground strap.
- Remove cover in driver's footwell:
- Remove overcenter spring.
- Separate clutch pedal from clutch master cylinder and push operating rod toward engine compartment onto stop.

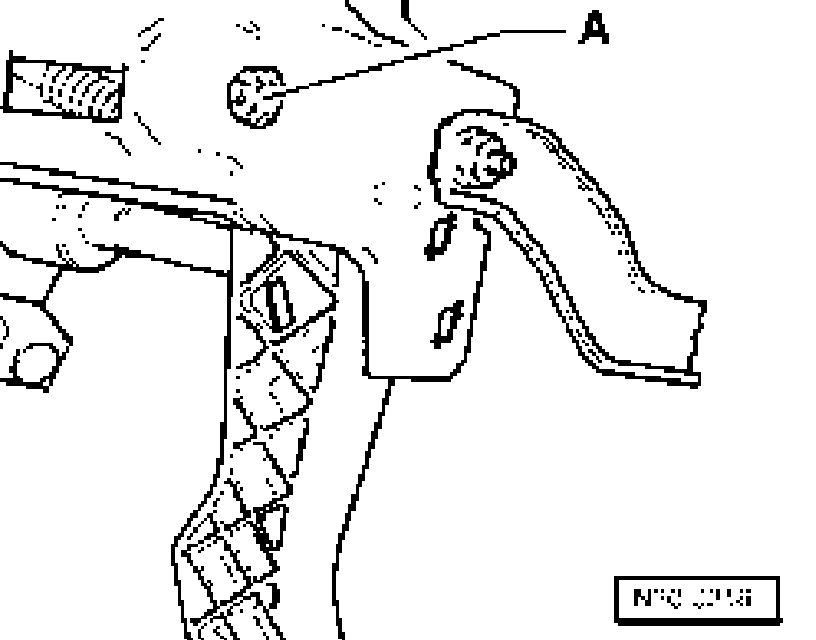

- Remove nut -A-.
- Pull bolt out until clutch pedal can be removed.

Installing
- Installation is performed in the reverse sequence. Note the following:

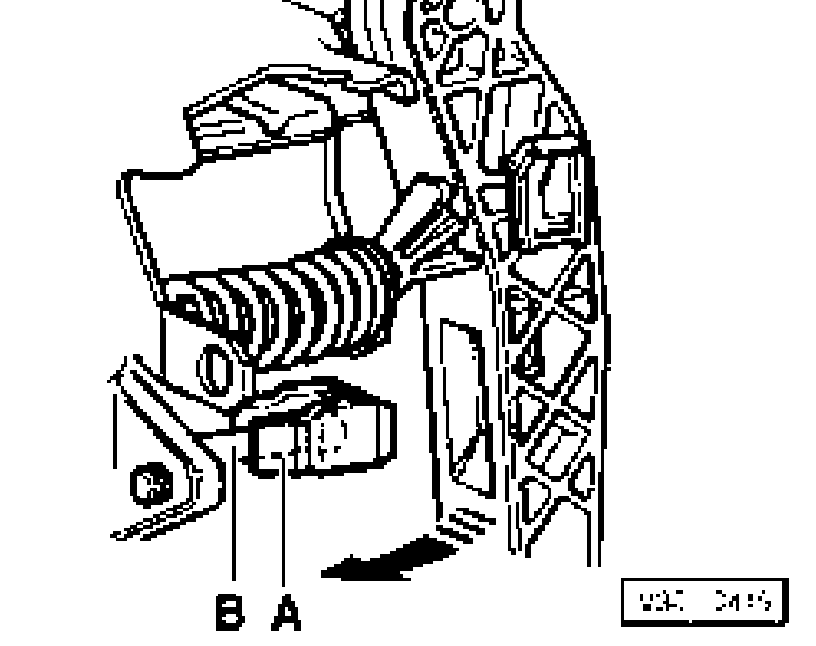

- The bearing bracket -A- must be installed to the clutch master cylinder operating rod -B-.
- Push clutch pedal in direction of arrow to engage it, and make sure it is well fitted.
- Install overcenter spring.
- Place clutch pedal switch in mounting hole and turn 45° to right.
