Clutch Mechanism, Repairing

Clutch mechanism, repairing, 02M, 5 and 6 Spd. M/T

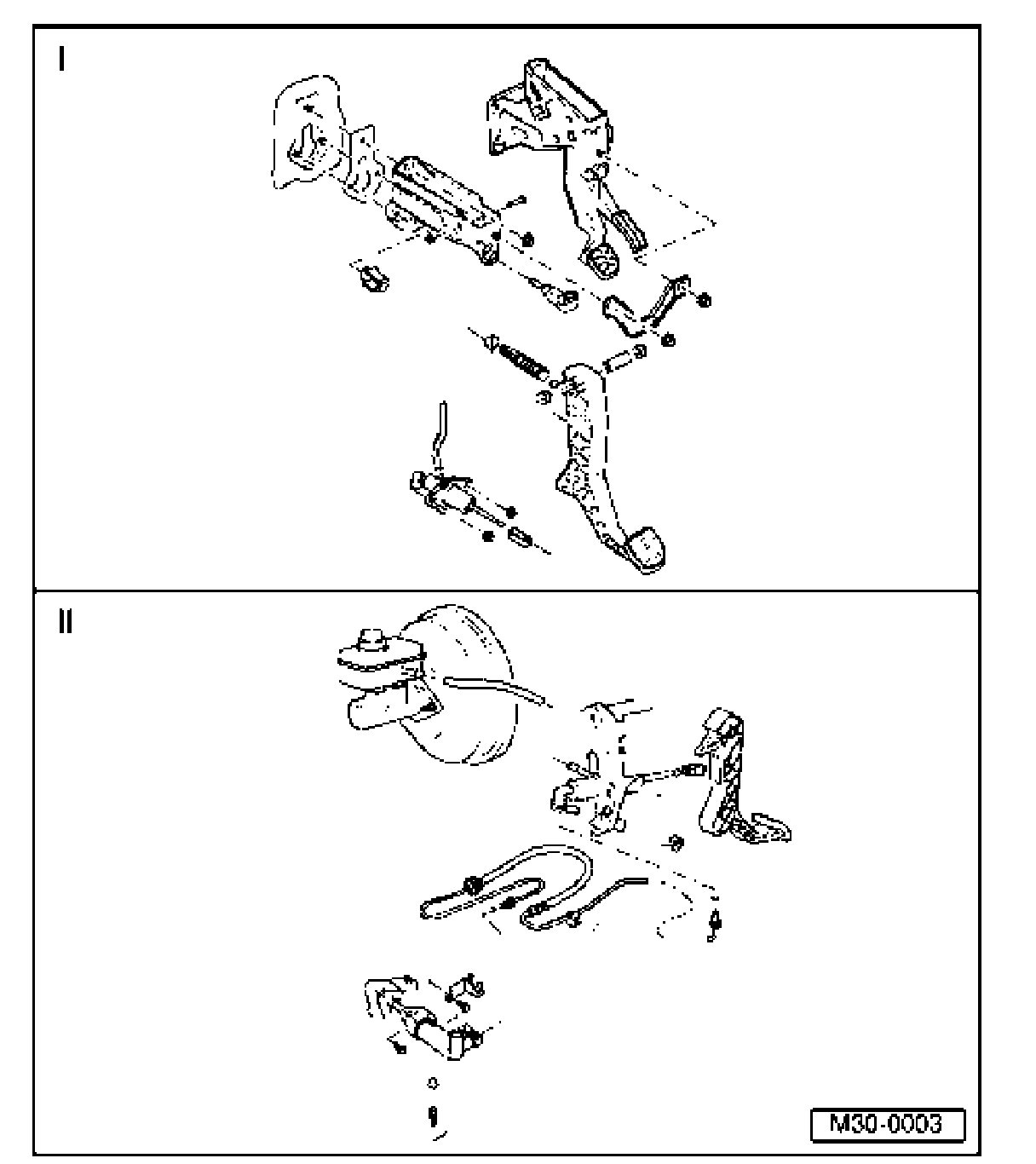

I - Pedal assembly, overview
II - Hydraulic components, assembly overview

Note:
- Disconnect the battery Ground strap.
- For vehicles fitted with a coded radio, take into account the radio code.
- Lubricate all bearings and contact surfaces with poly resin grease Part No. G 000 450 02.
