Pedal Cluster, Assembly Overview

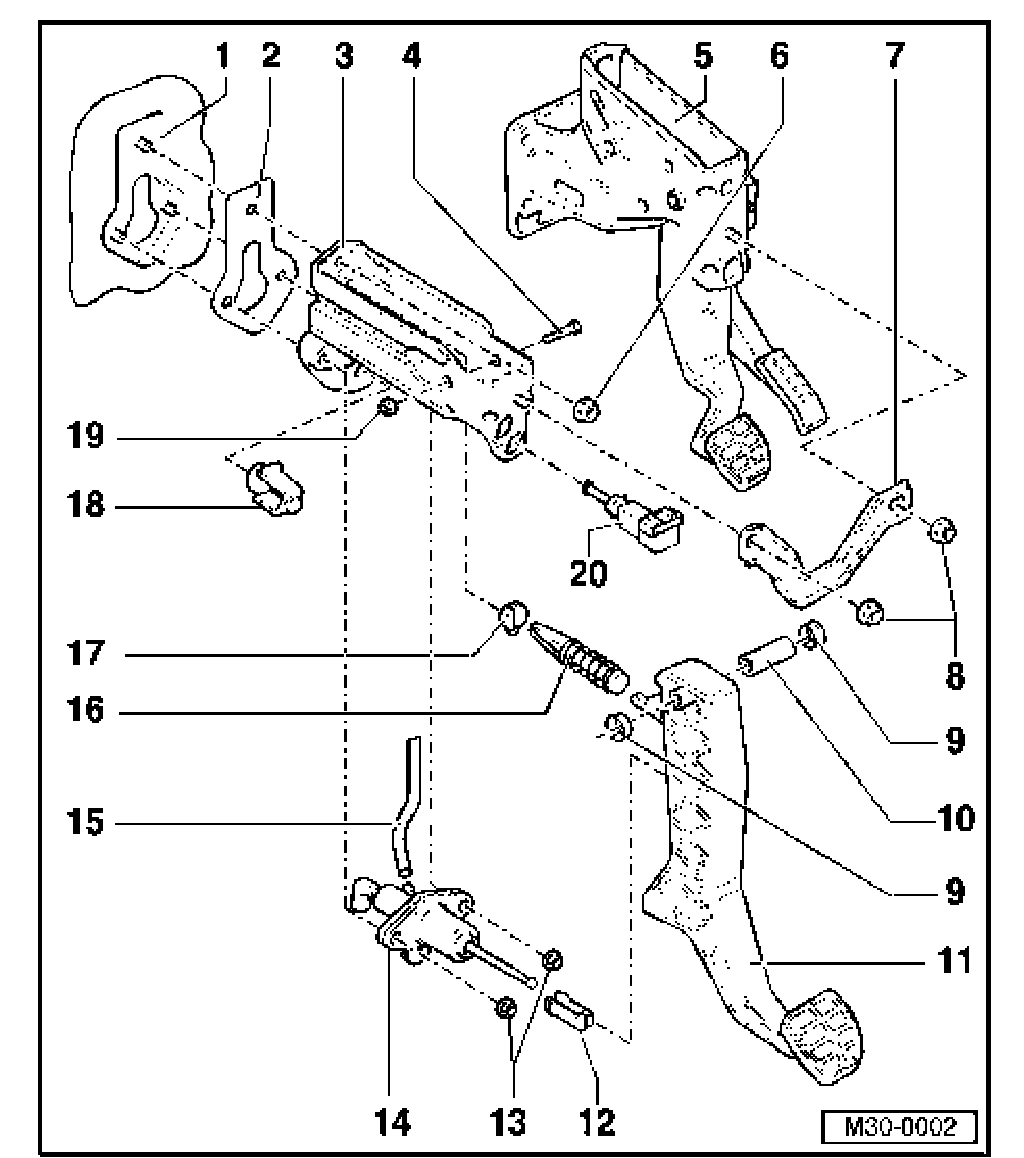

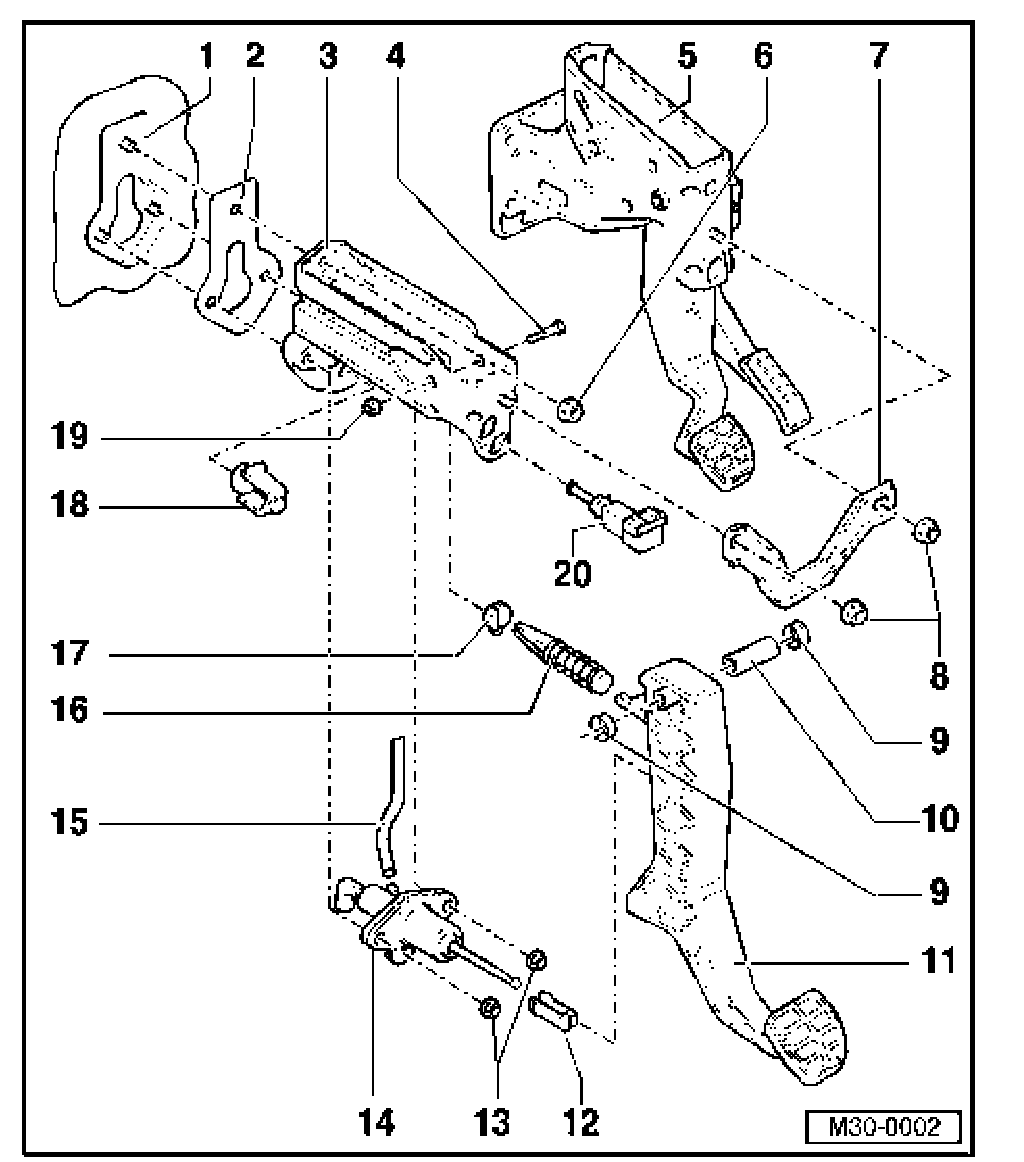

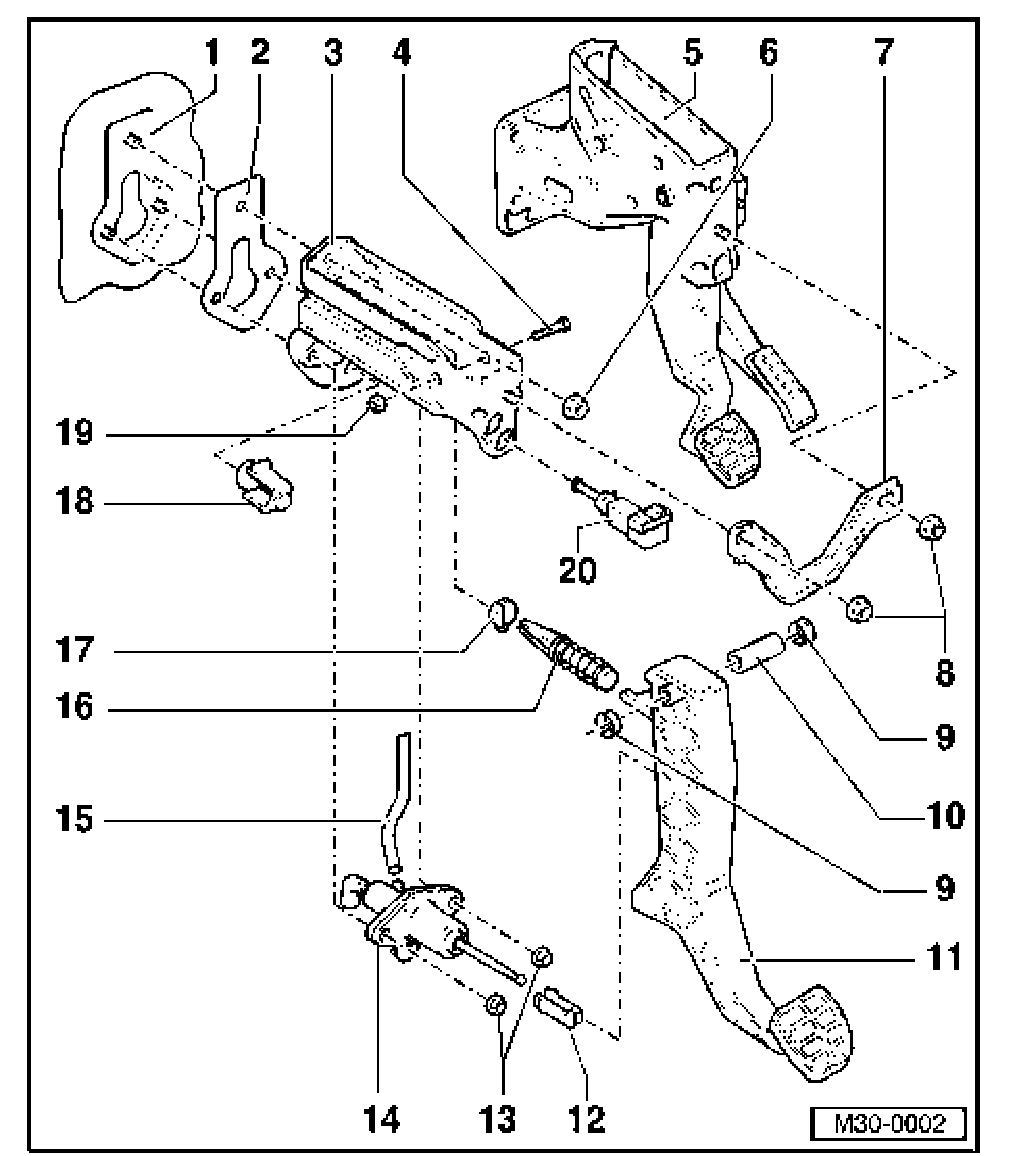

Pedal cluster, assembly overview, 02J, 5 Spd. M/T





1. Bulkhead
^ With mounting for mounting bracket and master cylinder

2. Seal
^ Always replace

3. Mounting bracket
^ For mounting clutch pedal

4. Bolt
5. Mounting bracket
^ For mounting accelerator pedal and brake pedal

6. Self-locking hex nut, 25 Nm
^ Always replace

7. Connecting plate





8. Self-locking hex nut, 25 Nm
^ Always replace

9. Mounting bushing
10. Fulcrum pin
11. Clutch pedal
12. Retainer
13. Self-locking hex nut, 25 Nm
^ Always replace

14. Master cylinder
15. Supply hose





16. Over-center spring
17. Over-center spring mounting
^ Install in mounting bracket
^ Removing and installing, to replace master cylinder

18. Stop
^ For clutch pedal
^ Installation position

19. Self-locking hex nut, 25 Nm
^ Always replace

20. Clutch pedal switch
^ For cruise control system
