Hydraulic Components, Assembly Overview

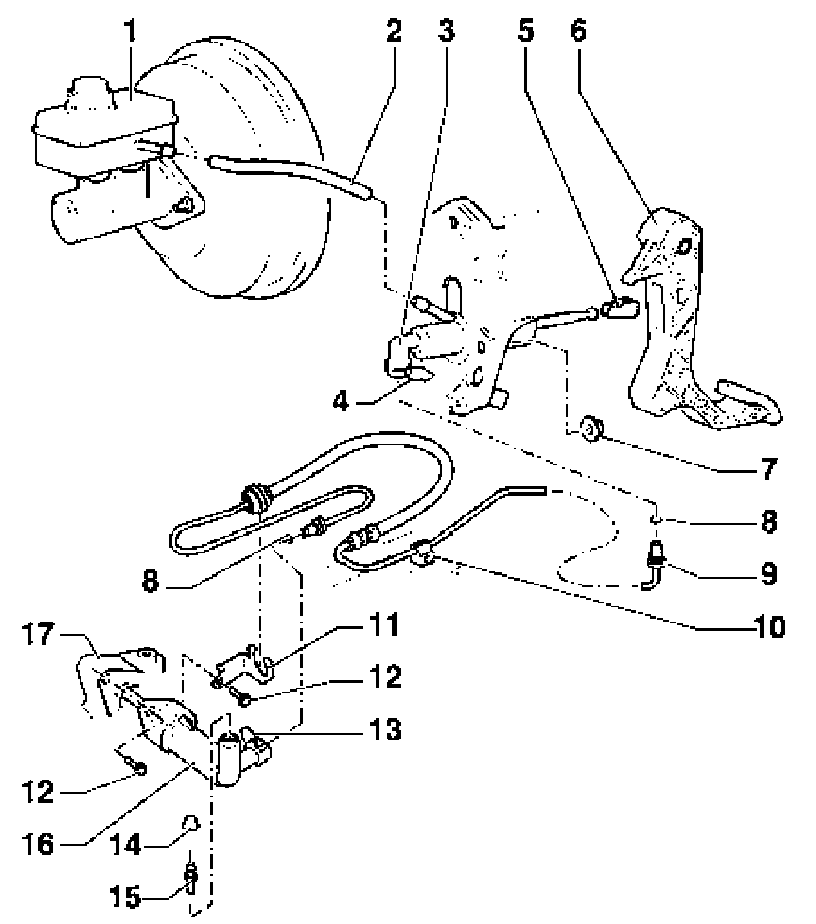

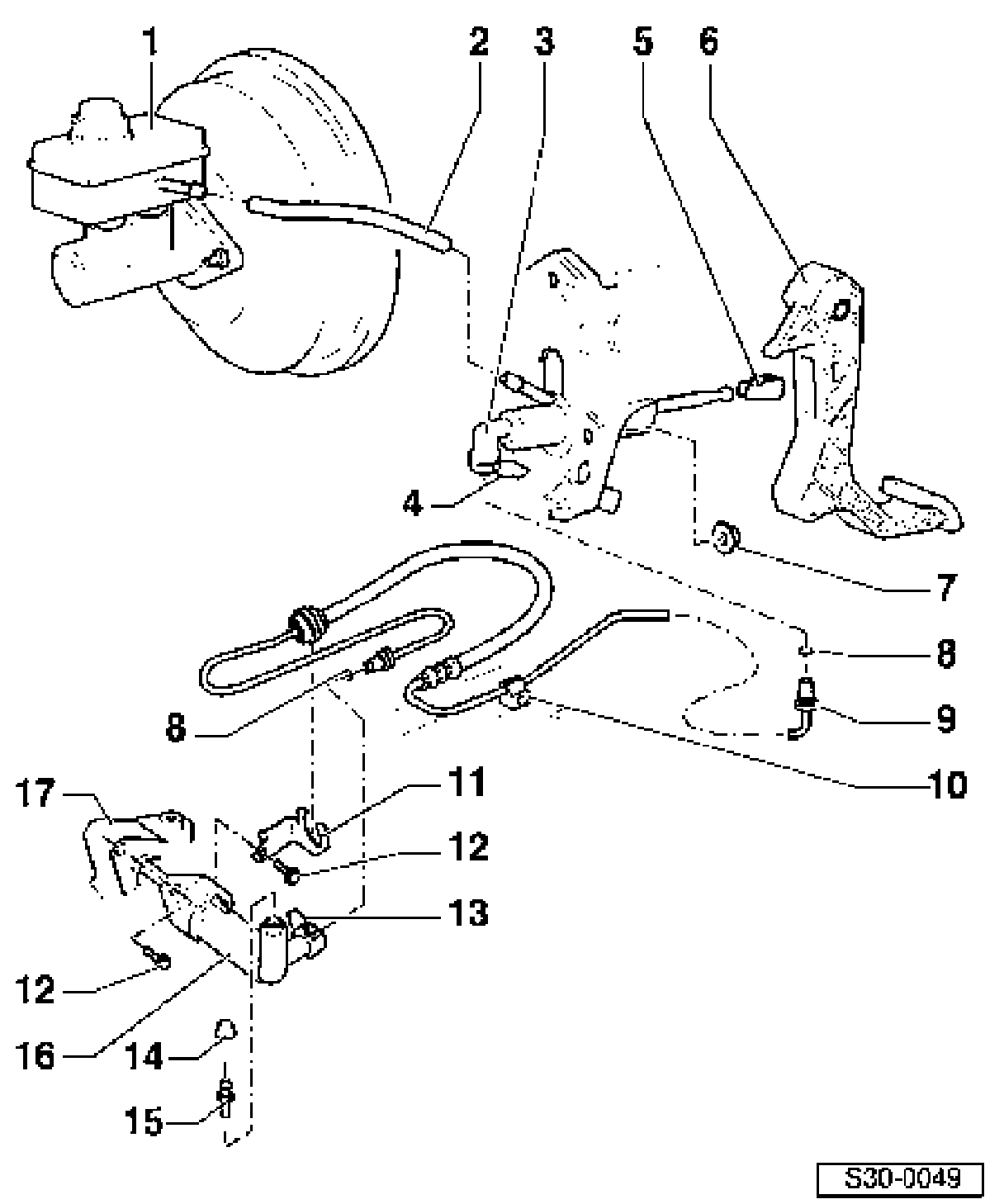

Hydraulic components, assembly overview, 02M, 5 and 6 Spd. M/T





1. Brake fluid reservoir
2. Supply hose
3. Clutch master cylinder
4. Clip
^ Fully remove retaining clip to remove and install pipe/hose assembly

5. Bearing bracket
^ Only replace with clutch master cylinder removed
^ Removing go to Fig. 1
^ Installing go to Fig. 2





6. Clutch pedal
7. Hex nut, self-locking, 25 Nm
^ Always replace

8. O-ring
^ Connect in cable connection
^ Use with brake fluid

9. Pipe/hose assembly
^ Check Parts Catalog for application

10. Support
^ Fixed onto body support
^ For pipe/hose assembly





11. Support
^ Fixed to clutch/gear cylinder

12. 20 Nm
13. Clip
^ Fully remove retaining clip to remove and install pipe/hose assembly

14. Protective cap
15. Bleeder valve
^ Bleeding clutch system

16. Clutch master cylinder
17. Transmission

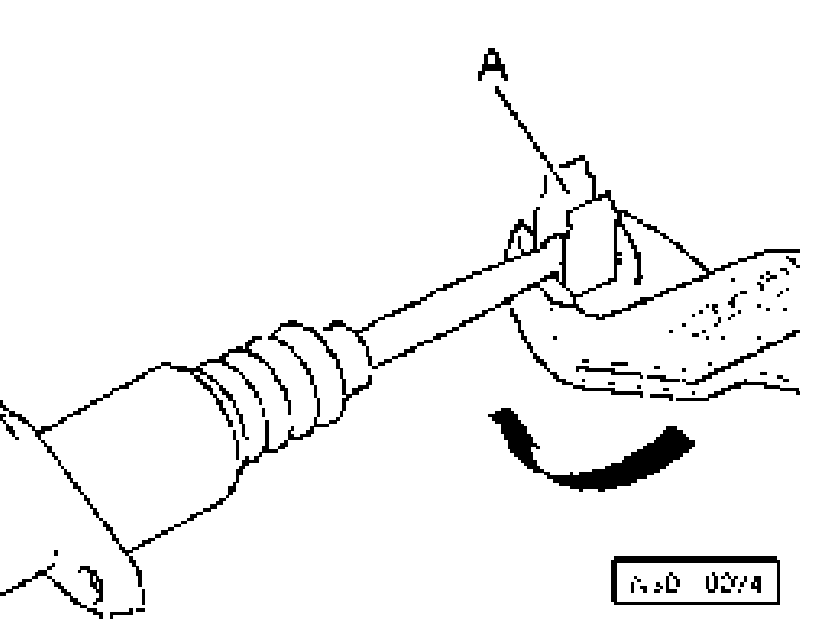

Fig. 1 Remove retainer -A- by prying in direction of arrow

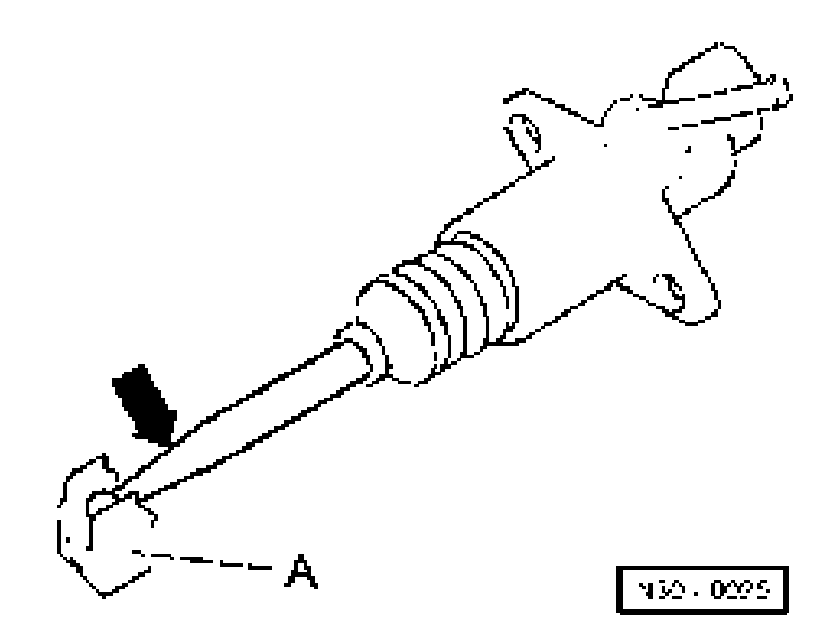

Fig. 2 Install clutch master cylinder operating rod in retainer -A- (direction of arrow)
