Hydraulic System, Assembly Overview

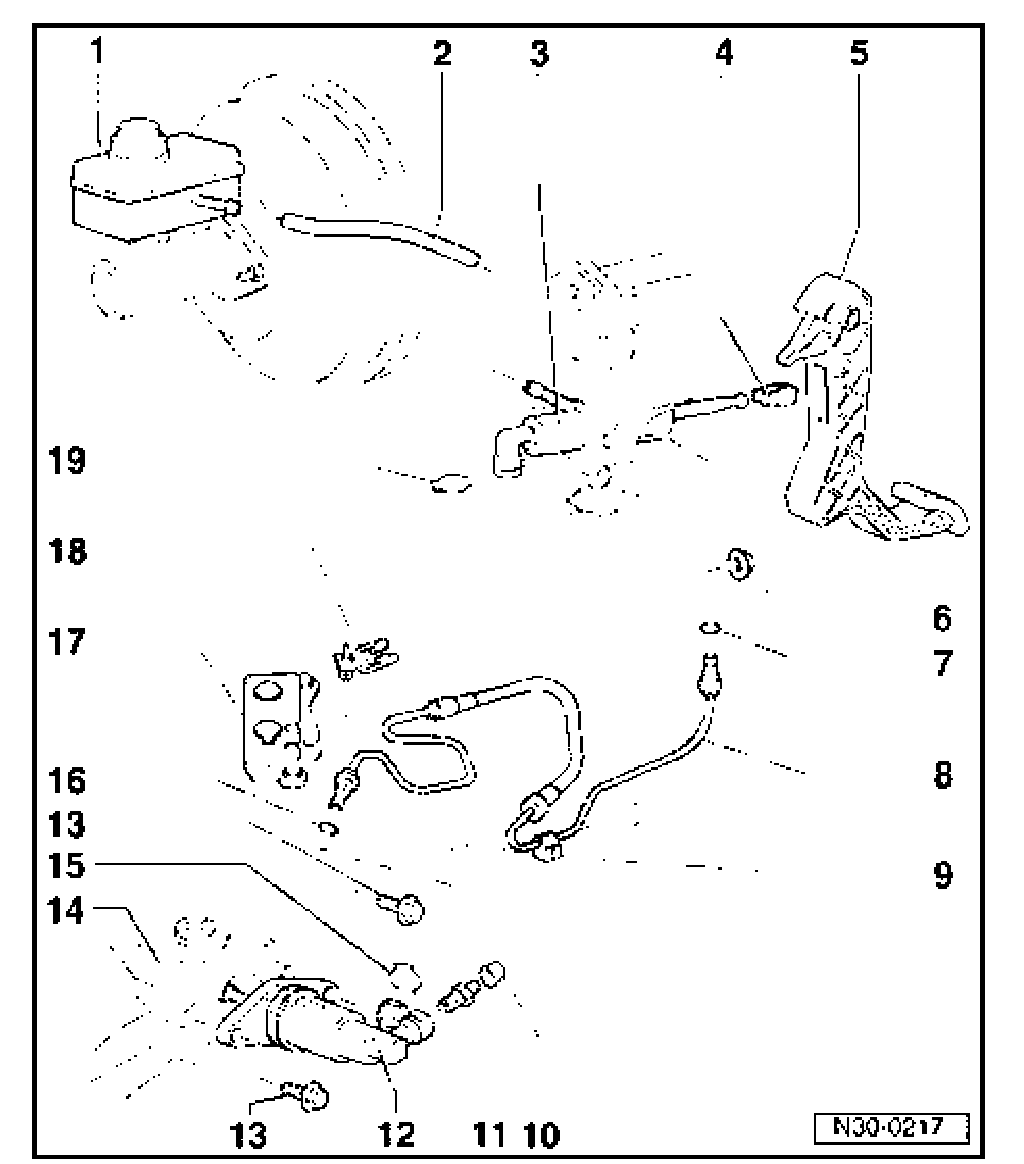

Hydraulic system, assembly overview, 02J, 5 Spd. M/T





1. Brake fluid reservoir
2. Supply hose
3. Master cylinder
4. Retainer
^ Replace only with master cylinder removed
^ Pressing on

5. Clutch pedal
6. Self-locking hex nut, 25 Nm
^ Always replace

7. O-ring
^ Pull onto line/hose connection
^ Insert with brake fluid

8. Line/hose assembly
^ Determine application using parts catalog

9. Bracket
^ Secured to body

10. Dust cap
11. Bleed valve
^ Bleeding clutch system

12. Slave cylinder
^ Remove the following components before removing slave cylinder:
^ Selector cable from transmission selector lever
^ Relay lever and follower gate cable
^ After installing, adjust selector mechanism

13. Collared securing bolt, 25 Nm
14. Transmission
15. Clip
16. O-ring
^ Pull onto line/hose connection
^ Insert with brake fluid

17. Support bracket
18. Hose bracket
^ Secure to control cable/gear selector cable support bracket

19. Clip

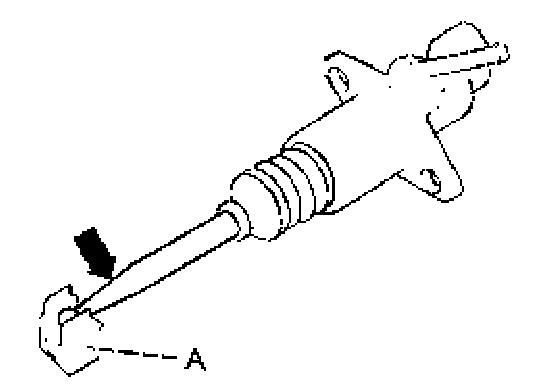

Fig. 1 Pry retainer -A- off in direction of arrow

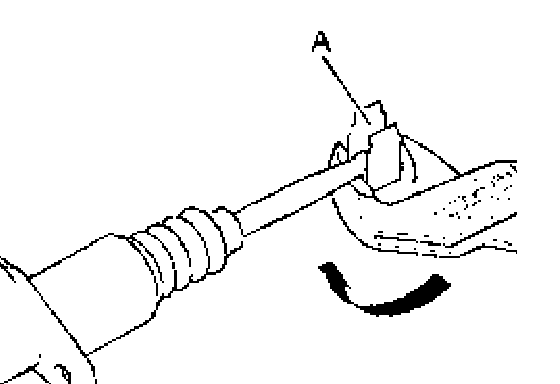

Fig. 2 Press master cylinder operating rod in retainer -A- in direction of arrow
