Torque Converter, Draining

Torque converter, draining, 09G, 6 Spd. A/T
Special tools, testers and auxiliary items required

Oil extractor unit V.A.G1358 A:

^ Oil extraction probe V.A.G1358A/1

Drain the torque converter when performing a major overhaul of the transmission or if the ATF has become contaminated by abrasion as follows:

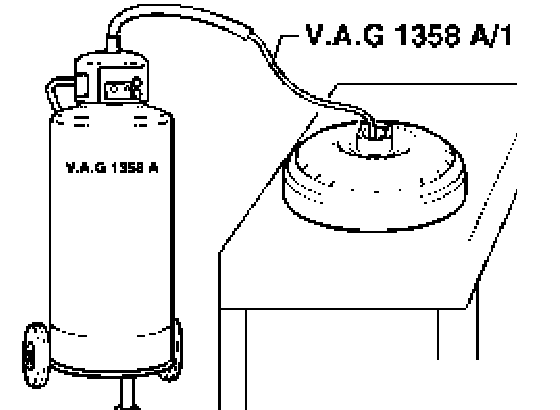

Extract ATF from torque converter using V.A.G1358A and probe V.A.G1358A/1.
