Display Group 001
Display Group 001

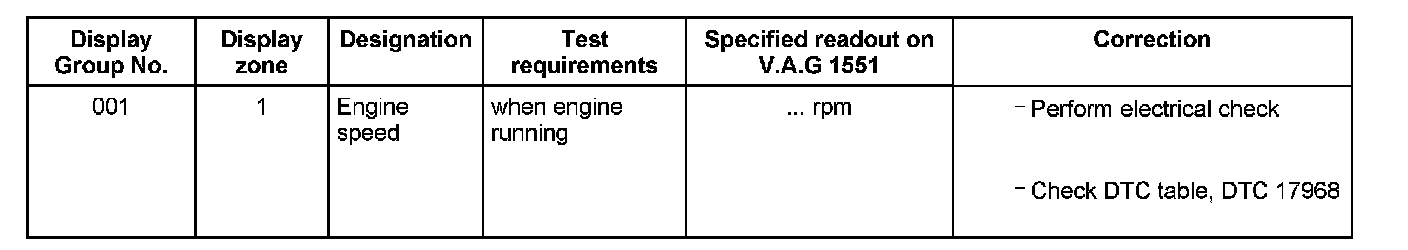

Display Group 001, Display Zone (1):

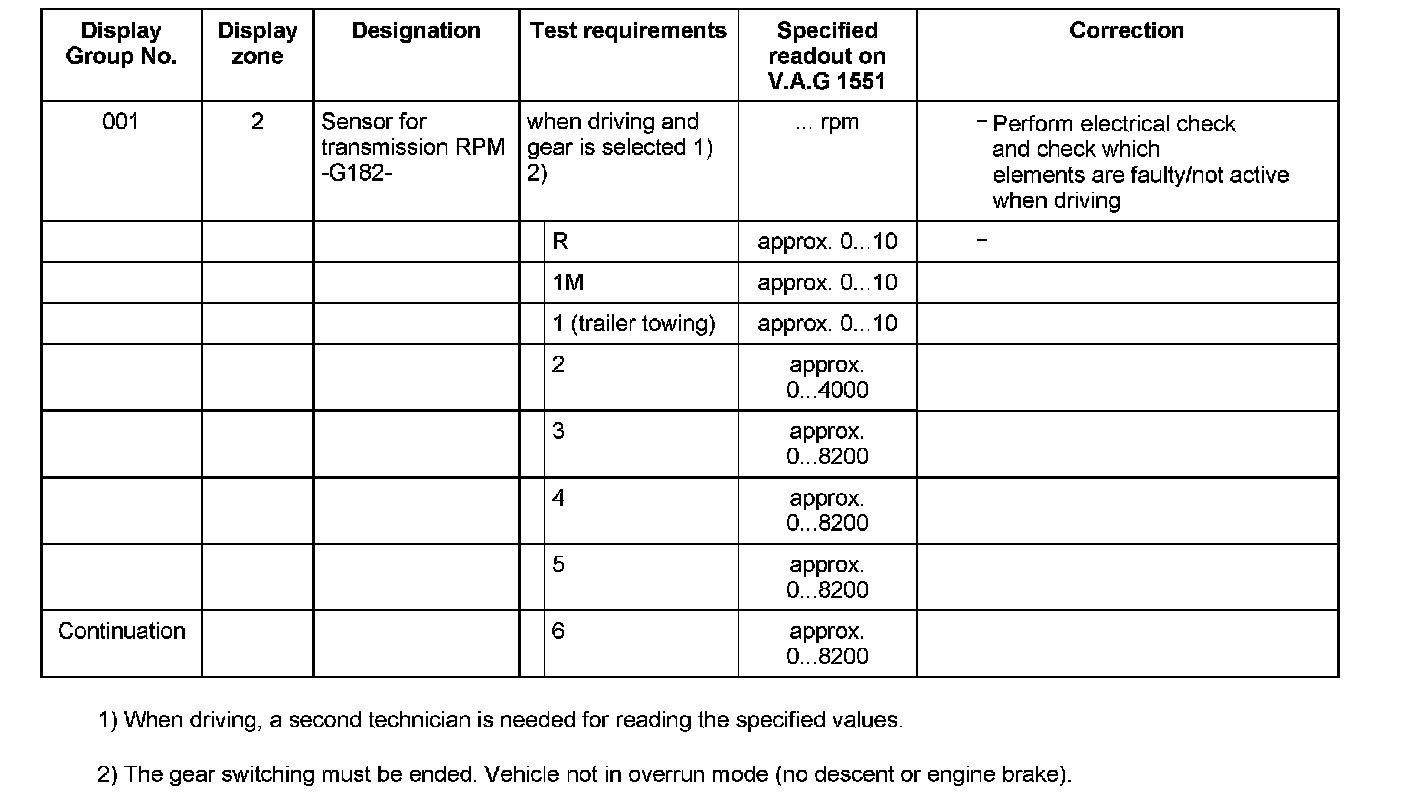

Display Group 001, Display Zone (2):

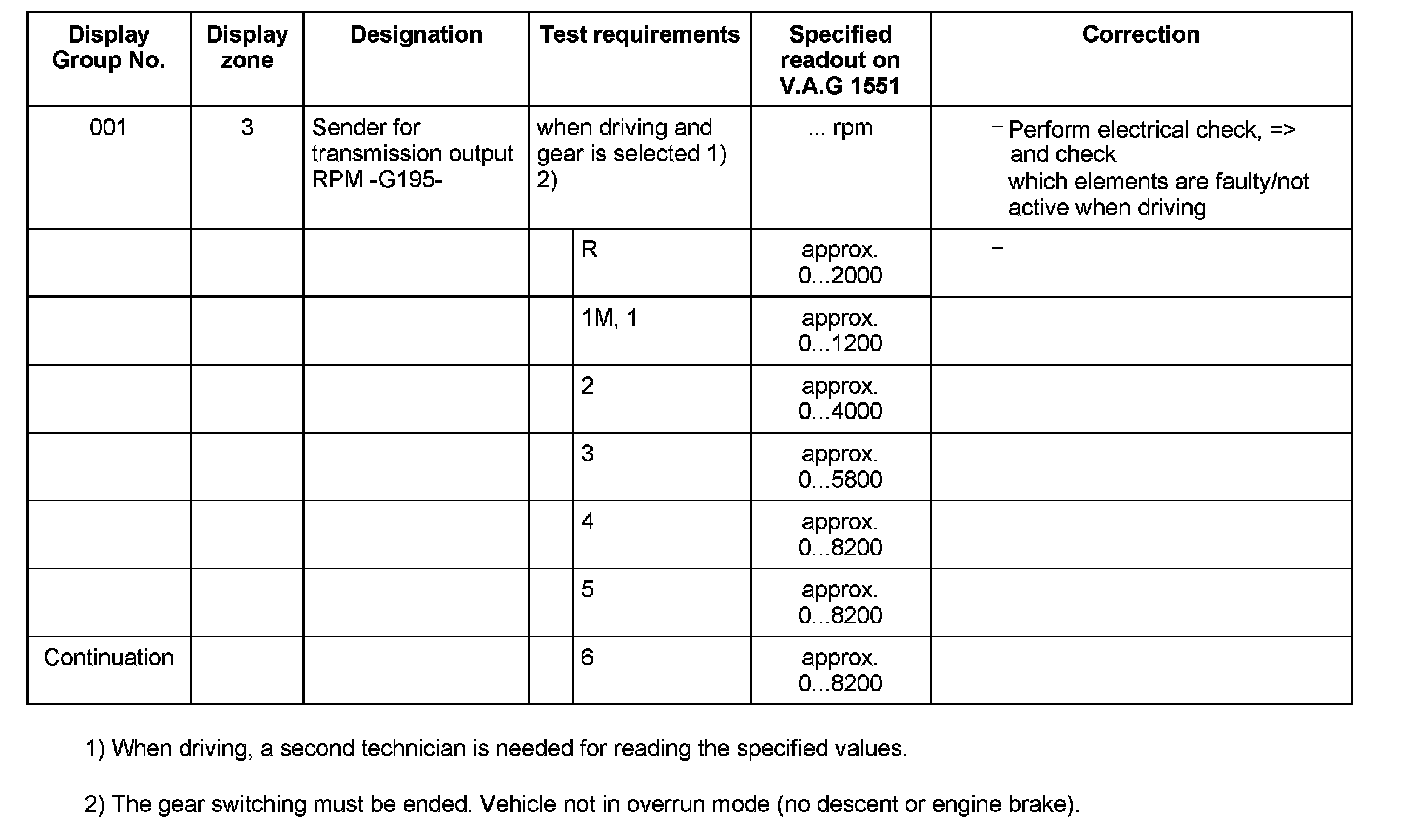

Display Group 001, Display Zone (3):
Display Group 001, Display Zone (4):
