Shift Interlock Cable: Adjustments



Locking cable, adjusting, 09G, 6 Spd. A/T

Requirements
- Locking cable in installation position.
- Center console removed.
- Selector lever in position "P".
- Ignition key in removal position.
- Steering wheel in position fully extended and downward toward floor.

Work sequence

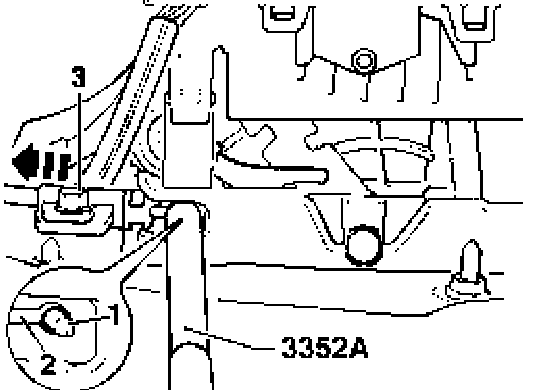

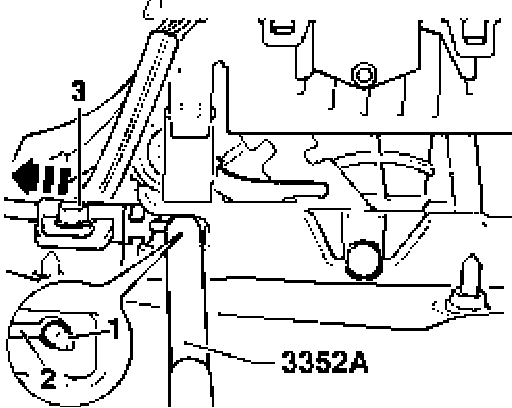

- Loosen bolts - 3 - on support mounting.
- Mount adjustment pin 3352A between locking lever - 1 - and locking eye - 2 -.
- Pull cable protective sleeve back in - direction of arrow - onto limit stop when adjusting play.
- Hold cable protective sleeve in this position.
- In this position it must be possible to insert and remove adjustment pin 3352 A easily.





- Tighten bolt - 3 - on support mounting to 10 Nm.
- Remove adjustment pin.
- Check function of ignition key removal lock.
