Torque Converter Oil Seal, Removing and Installing



Torque converter oil seal, removing and installing, 09G, 6 Spd. A/T

Special tools, testers and auxiliary items required

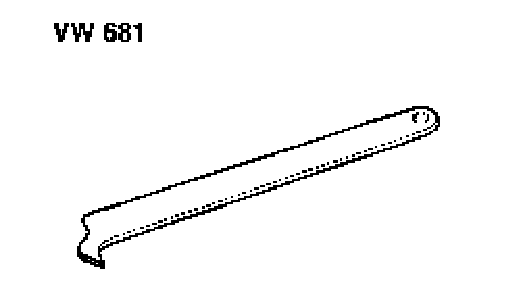

Oil seal extractor lever VW 681:

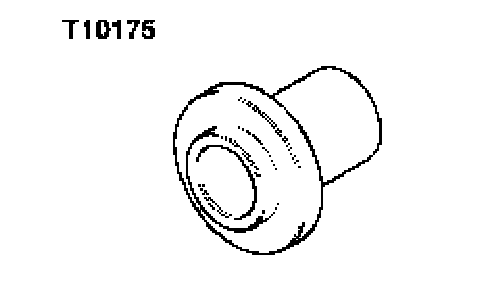

Thrust piece T10175:

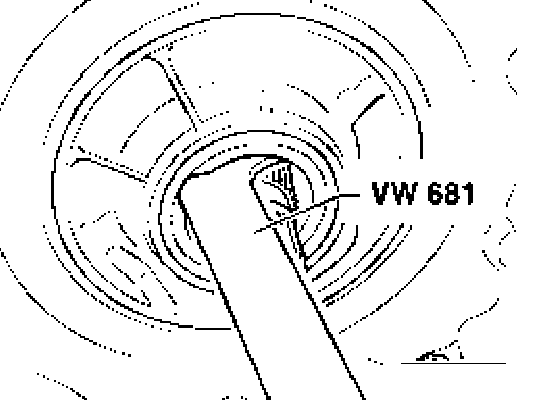

Removing torque converter oil seal

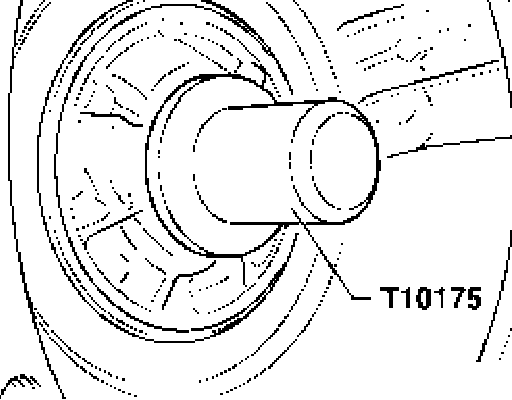

Driving in torque converter oil seal until flush
