Selector Shaft Seal, Replacing

Selector shaft seal, replacing, 09G, 6 Spd. A/T

Special tools, testers and auxiliary items required

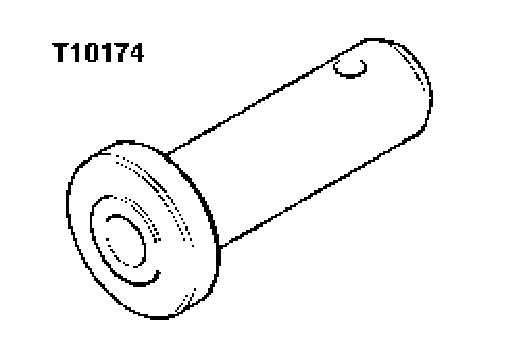

Thrust piece T10174:

Removing





- Remove Multi-function Transmission Range (TR) switch -F125-.

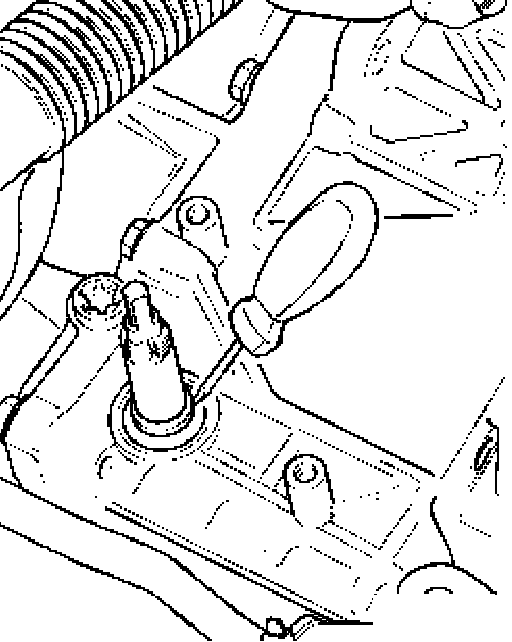

- Carefully pry out selector shaft oil seal with a screwdriver. Do not damage selector shaft when prying out seal.

Installing

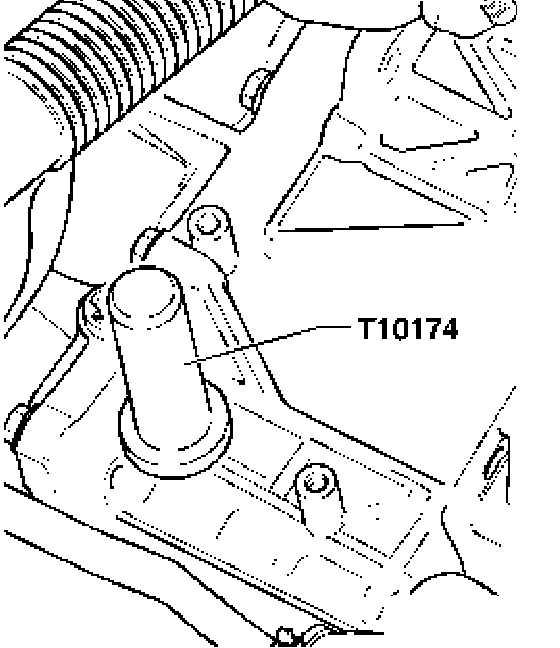

- Drive in new oil seal onto limit stop of press piece. Do not cant seal when driving in.
- Install Multi-function TR switch -F125-.
- Adjust Multi-function TR switch -F125-.
