Electrical/Electronic Components and Locations

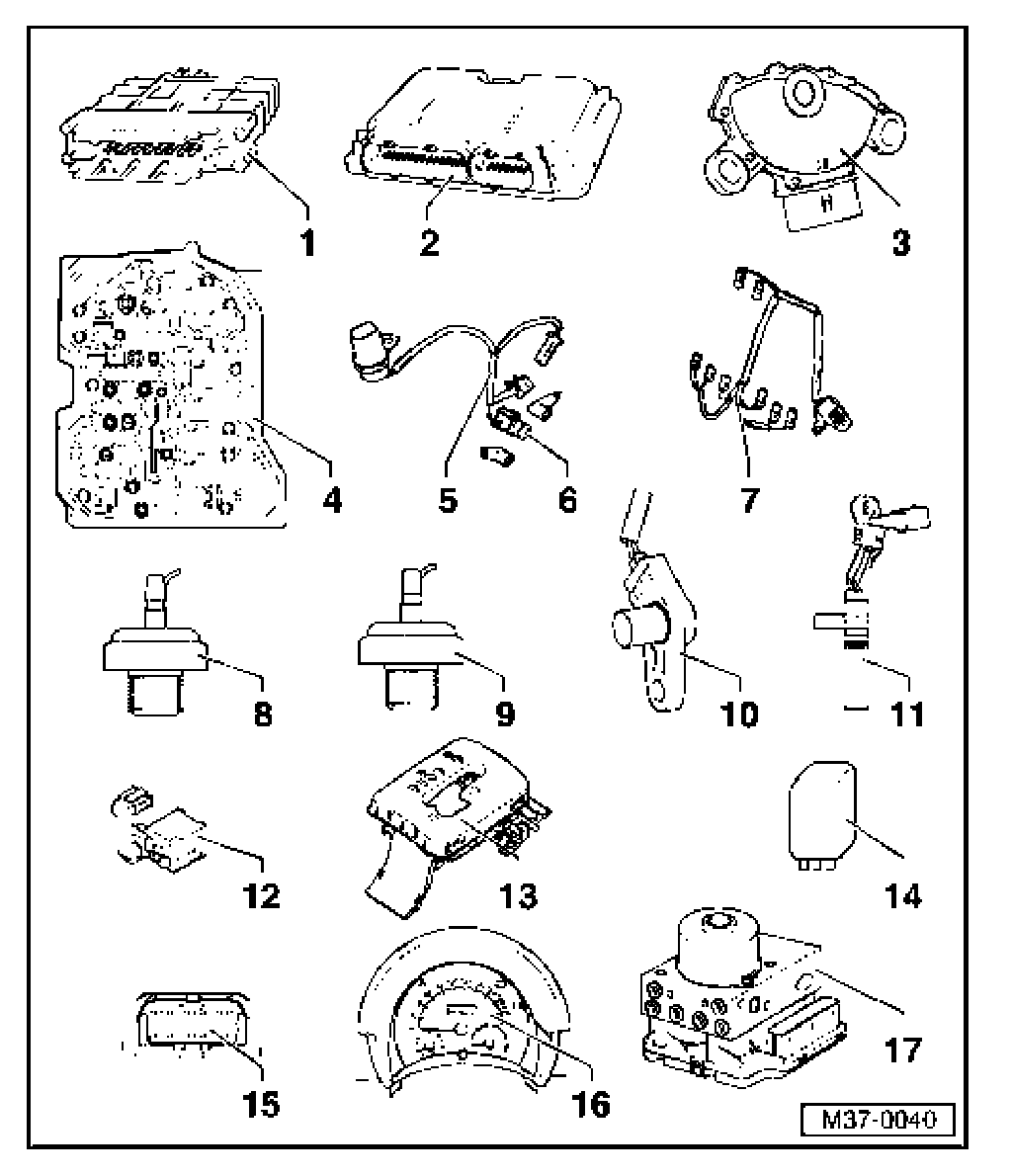

Electrical/electronic components and locations, 09G, 6 Spd. A/T





1. Automatic Transmission Control Module (TCM) -J217-
2. Engine Control Module (ECM)
3. Multi-function Transmission Range (TR) switch -F125-
4. Valve body
5. Wiring harness, 8-pin
6. Transmission fluid temperature sensor -G93-
7. Wiring harness, 14-pin
8. Automatic transmission hydraulic pressure sensor 1 -G193-
9. Automatic transmission hydraulic pressure sensor 2 -G194-
10. Transmission input speed (RPM) sensor -G182-
11. Transmission output speed (RPM) sensor -G195-
12. Shift lock solenoid N110
13. Tiptronic switch -F189-
14. Starting interlock relay -J207-
15. Data Link Connector (DLC)
16. Transmission Range (TR) display -Y6-
17. ABS control module
