Measuring Value Block, Reading

MEASURING VALUE BLOCK, READING

WARNING! Check wiring by visual inspection only. Do not check continuity or resistance of airbag igniter circuits. Only check wiring with ignition switched off.

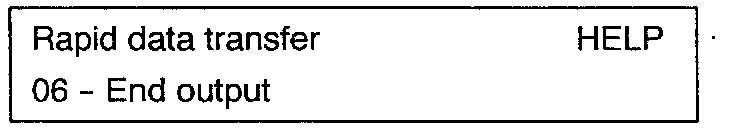

Indicated on display. If VAG 1551 is still in another function:

- Press buttons 0 and 6 to select "End Output" function.

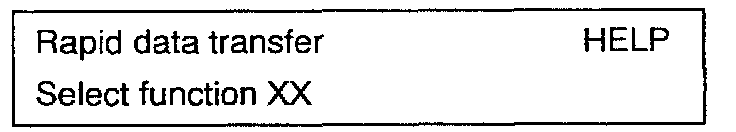

Indicated on display:

- Press Q button to confirm entry.

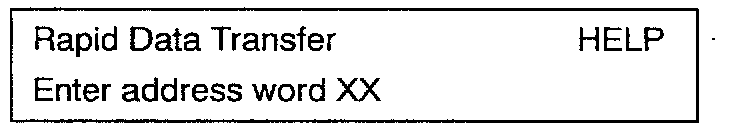

Indicated on display

- Press buttons 1 and 5 to insert "Airbag" address word 15.

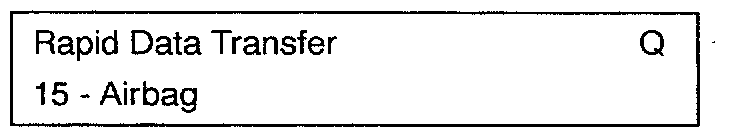

Indicated on display

- Press Q button to confirm input.

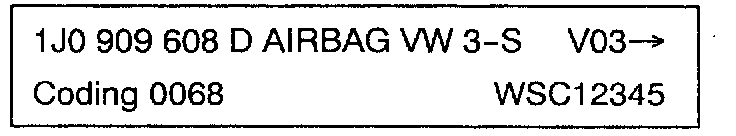

Indicated on display

- See parts catalog for latest control module version.
- Press -> button.

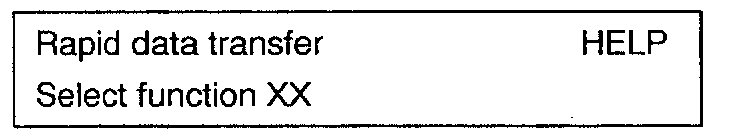

Indicated on display.

- Press buttons 0 and 8 to select "Read Measuring Value Block" function.

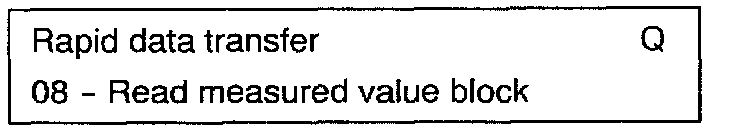

Indicated on display

- Press Q button to confirm entry.

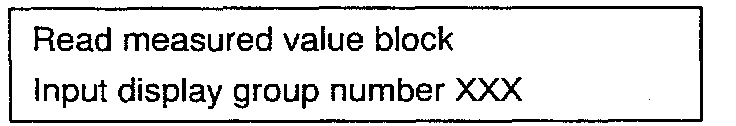

Indicated on display

- Press buttons -0-, -0- and -1- to select display group 001 and confirm entry with Q button.

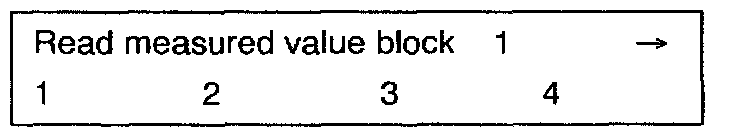

Indicated on display (1 - 4 = Display Fields)

- Explanation of individual display fields on display is found in evaluation of display group numbers.

- If displayed values in all display zones are "Correct":
- Press -> button.

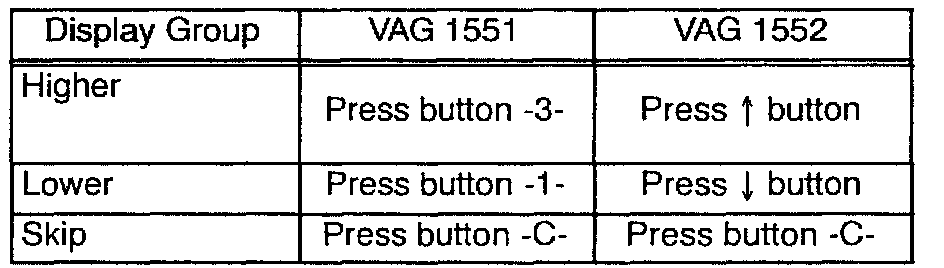

Note: To change to another display group, proceed as follows:

Note: Check DTC memory after completing the "Read Measuring Value Block" function 08.

For additional information, see Repair Manual, Body On Board Diagnostic (OBD), Repair Group 01.
