Airbag, Connecting Test Box to Driver's Airbag Components

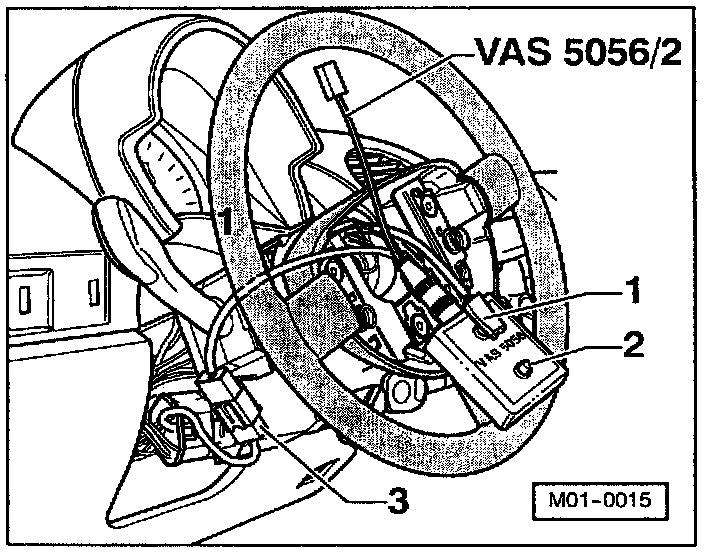

AIRBAG, CONNECTING TEST BOX TO DRIVER'S AIRBAG COMPONENTS, EXAMPLE

- Remove driver-side airbag and steering column switch lower trim.





- Connect airbag igniter connector -1- to inert igniter # 1.

- View display. See Evaluating display group 001 for specific diagnostic instructions. If diagnosis is not completed, disconnect air bag igniter connector to inert igniter # 1 and proceed to next step.

- Separate airbag wiring harness from airbag spiral spring/return spring with slip ring connector,

- Connect adapter harness with connectors for inert igniter # 2 -3- (VAS 5056/2) to airbag harness. See Evaluating display group 001 for specific diagnostic instructions. If diagnosis is not completed, proceed to next step.

- Press button -2- to simulate short circuit in airbag harness through connectors. Repair as directed.
