Airbag on Board Diagnostic (OBD)

AIRBAG ON BOARD DIAGNOSTIC (OBD)

For diagnosis using the VAS 5051, see VAS 5051 Tester.
For additional VAG 1551 information, see Repair Manual, Body On Board Diagnostic (OBD), Repair Group 01.

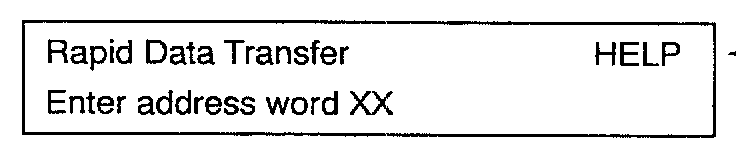

Indicated on display

Note: With the address word 00 the automatic test sequence is carried out i.e., the DTC memories of all systems in the vehicle capable of On Board Diagnostic (OBD) are checked via the rapid data transfer.

Press buttons 1 and 5 to insert "Airbag" address word 15.

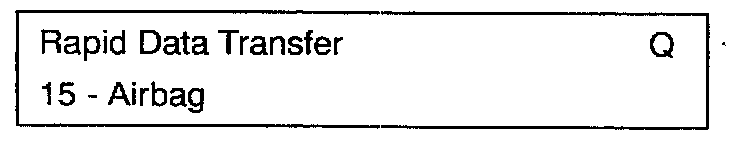

Indicated on display

- Press Q button to confirm input.

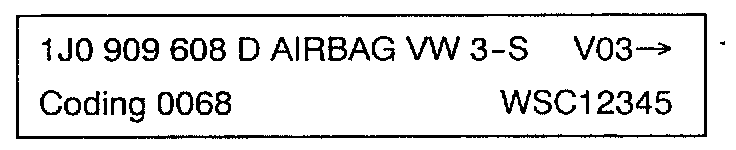

Indicated on display

- See parts catalog for latest control module version.
- Press -> button.

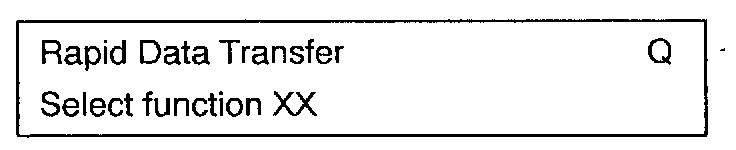

Indicated on display

- Press buttons 0 and 2 to select "Check DTC Memory" function 02.

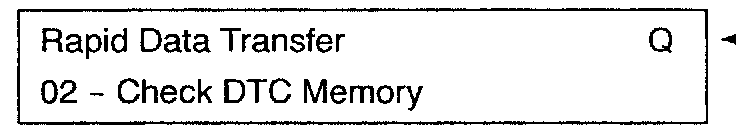

Indicated on display

- Press Q button to confirm input.




Indicated on display (number of DTCs recognized)

- Stored DTCs are displayed and printed out one after the other.
- Eliminate DTCs by referencing DTC table.
