Shock Absorber, Assembly Overview

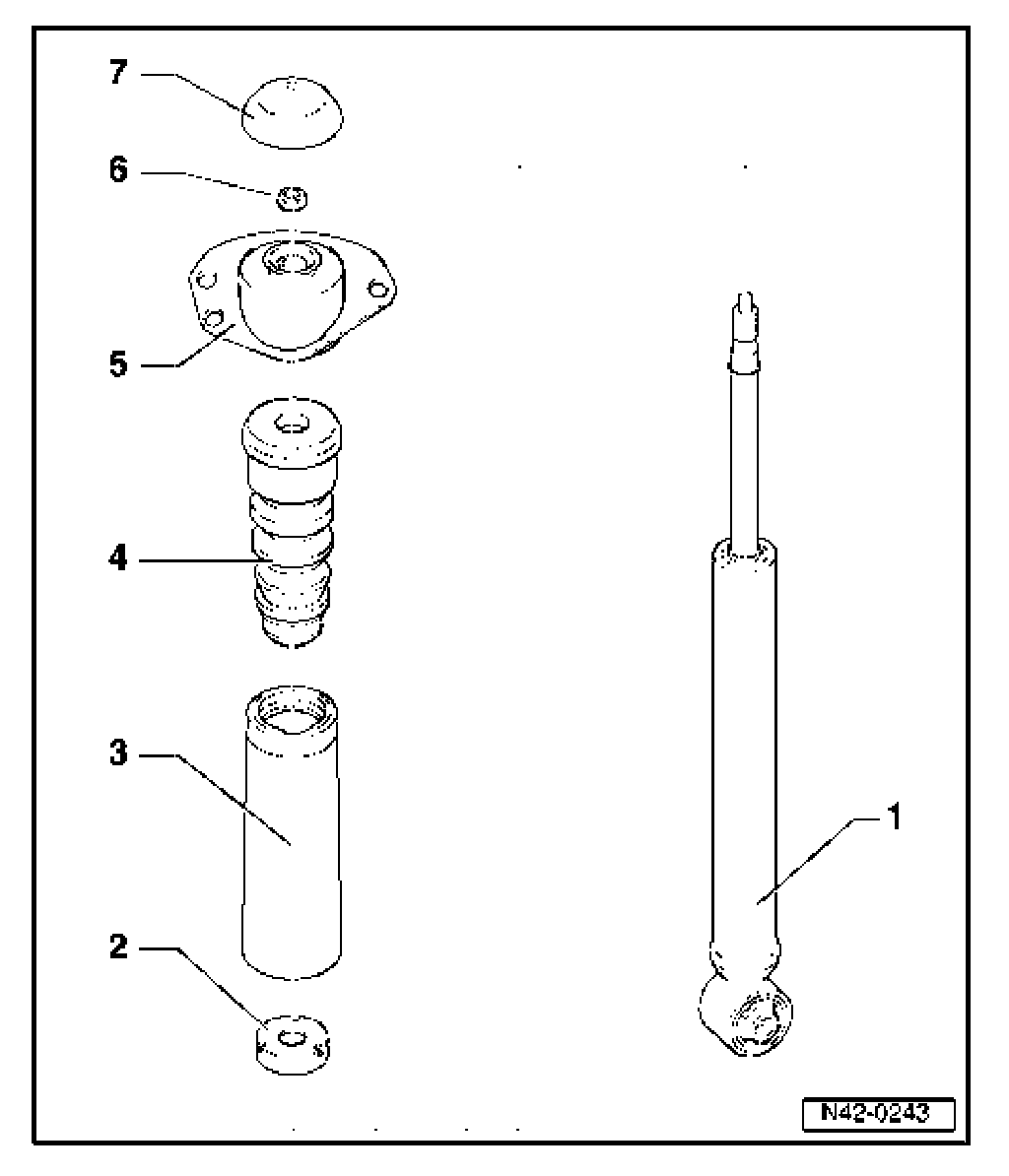

Shock absorber, assembly overview





1. Gas shock absorber
^ Can be replaced individually
^ Allocation Electronic parts catalog "ETKA"

2. Protective cap
3. Protective tube
4. Buffer stop
5. Shock absorber mount
6. Self-locking hex nut
^ M10 X 1
^ Tightening torque: Refer to Tightening torques of rear axle
^ Always replace after removal
7. Cover

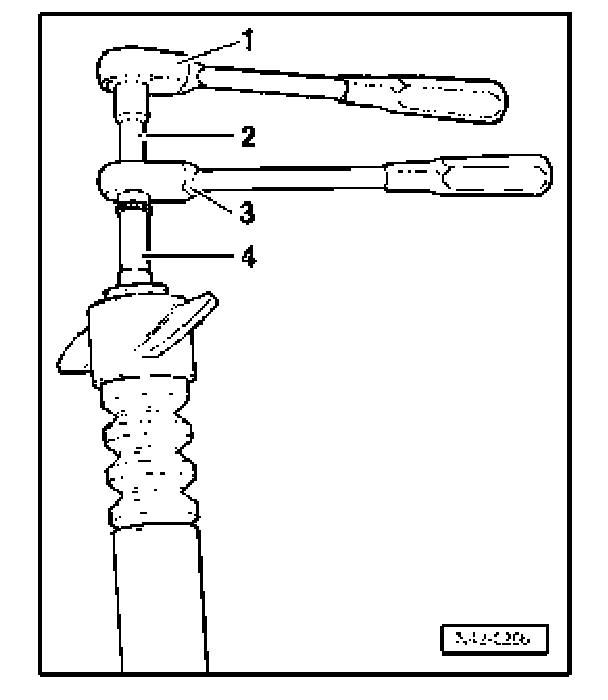

Removing hex nut from shock absorber
1. Commercially available ratchet
2. Socket T10001/9
3. T10001/11
4. Socket T10001/1
