Suspension Strut Assembly Overview

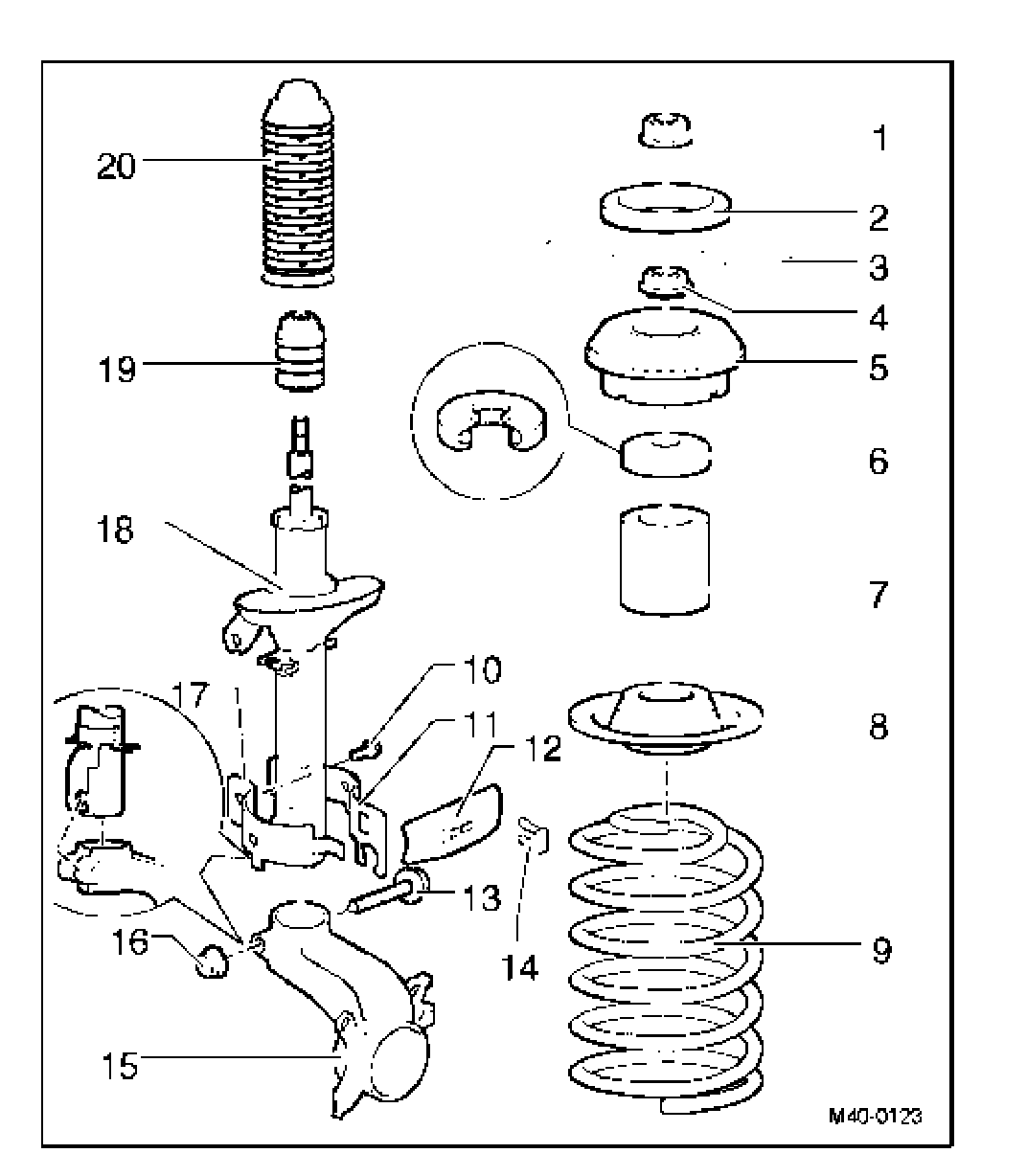

III - Suspension strut, assembly overview





1. Self-locking hex nut
^ M14 x 1.5

2. Stop plate
3. Suspension strut dome
4. Hex nut
^ M14 x 1.5

5. Suspension strut bearing
6. Axial groove ball bearing
7. Socket
^ Only available in Mexico vehicles

8. Spring plate
9. Coil spring
^ Note color code
^ Surface of spring coil may not be damaged

10. Hex bolt

11. Bracket
12. Heat shield
13. Hex bolt
^ Always replace
^ Hex bolt point must face in direction of travel

14. Clip
15. Wheel bearing housing
16. Self-locking nut
^ M14 x 1.5
^ Always replace

17. Clamp
18. Shock absorber
^ Can be replaced individually
^ Allocation Electronic parts catalog "ETKA"

19. Buffer stop
20. Protective sleeve
