Bonded Rubber Bushing For Control Arm, Replacing

Bonded rubber bushing for control arm, replacing

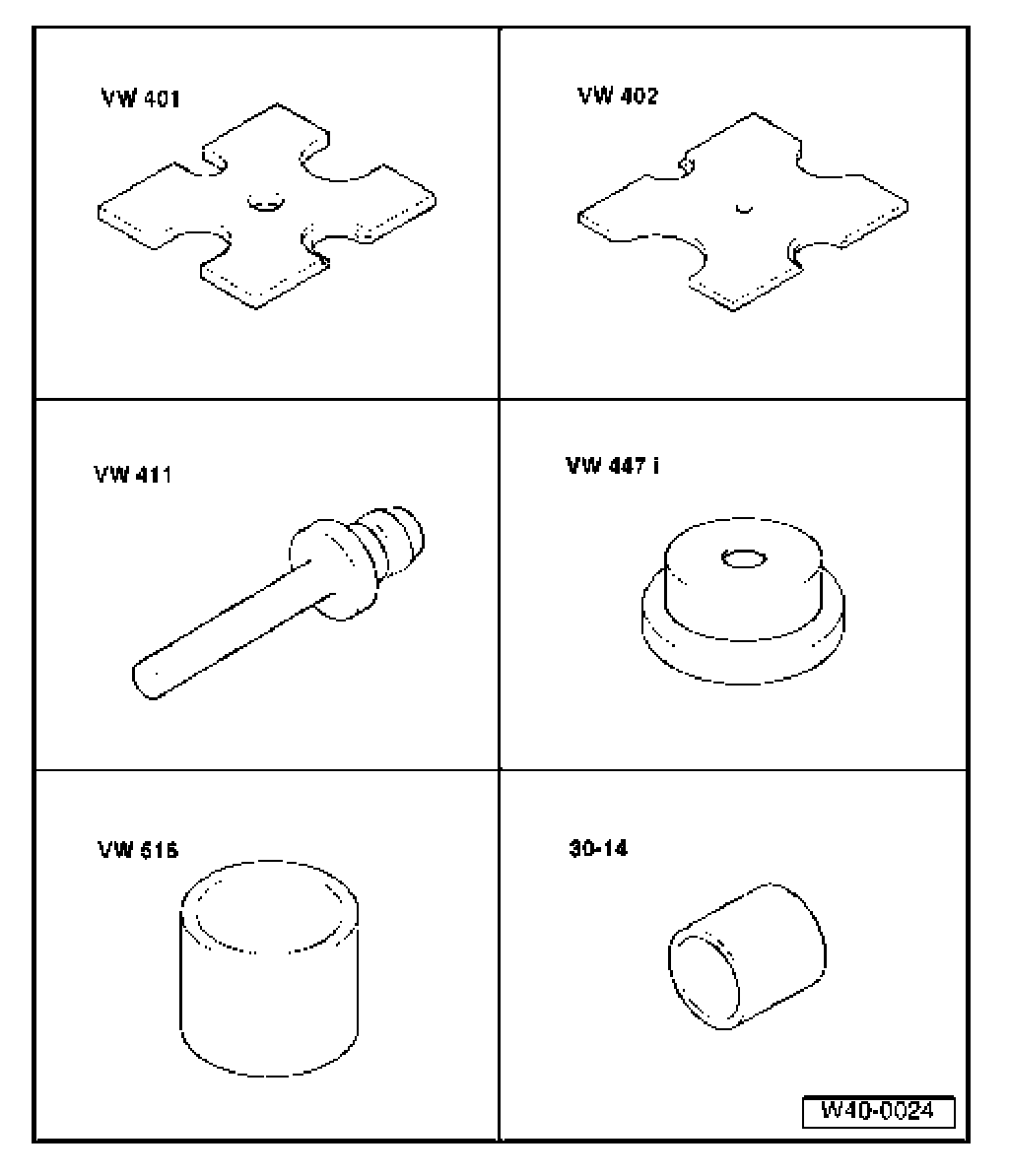

Special tools, testers and auxiliary items required:

- Thrust plate VW 401
- Thrust plate VW 402
- Punch VW 411
- Thrust pad VW 447 i
- Tube 42 mm dia. VW 516
- Sleeve 30-14

Special tools, testers and auxiliary items required:

- Sleeve 40-103
- Tube 2010
- Thrust piece 3288/2
- Assembly tool 3301
- Torque wrench V.A.G 1331

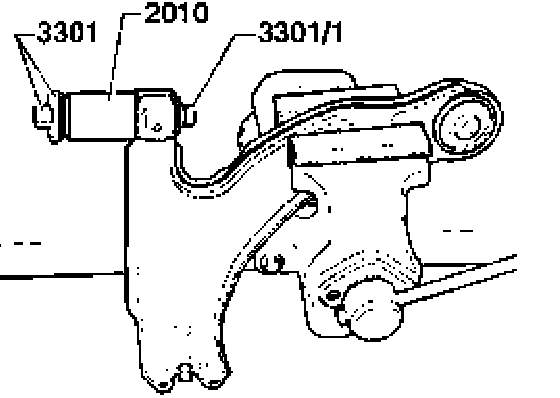

Pressing off front bushing for control arm

Note: To press in the bonded rubber bushings use, for example, sliding oil G 294 421 A1

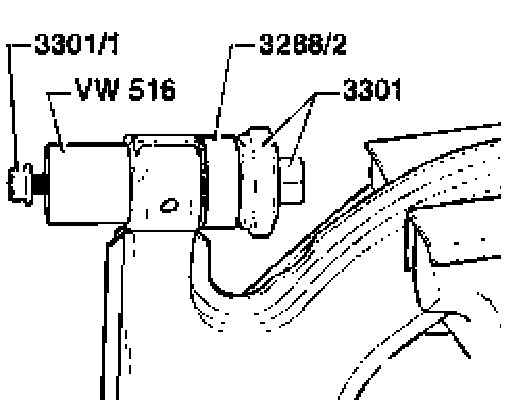

Press in front bushing for control arm





Installation position for rear bushing in control arm

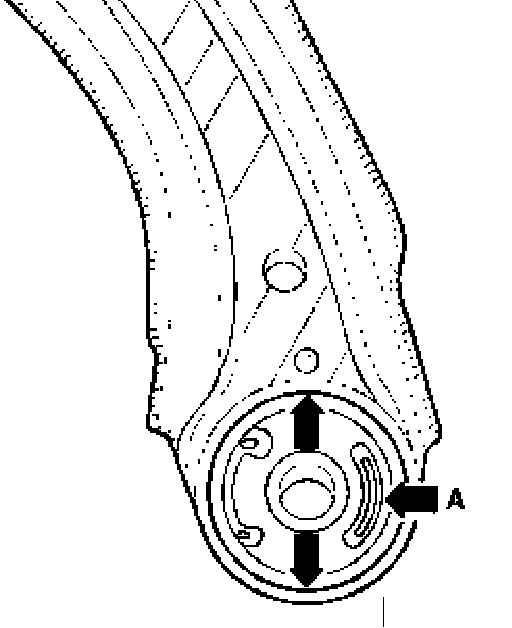

One of the arrows stamped on points to impression in control arm, kidney-shaped recess - arrow A - in bushing points toward vehicle center.

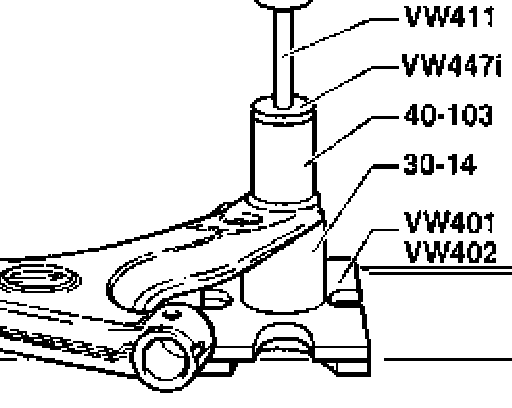

Pressing out/in control arm rear bushing
