Tie Rods, Modified

Tie rods, modified
Tie rods were shortened.

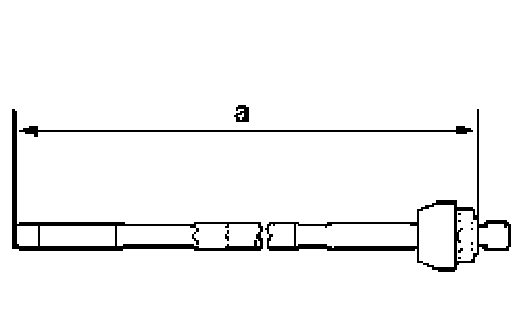

Dimension of tie rods
^ Previous tie rod; dimension - a - = 343.1 mm
^ New tie rod; dimension - a - = 318.9 mm

Note: A mixed installation of previous and new tie rods is not permitted!
