Center Position of Steering Rack, Determining

Center position of steering rack, determining
Before installing power steering gear, the steering rack should be set into center position.

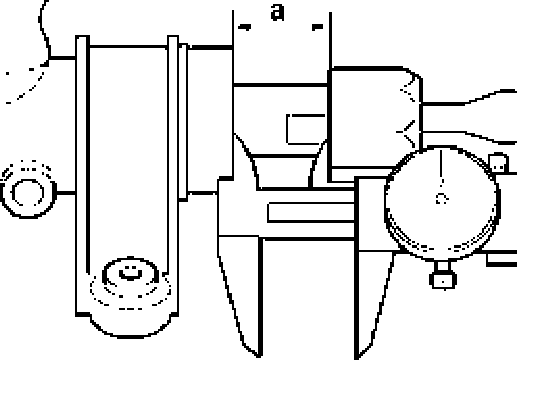

- Slide steering rack far enough so that dimension - a - is reached.
- Dimension - a - = 30.5 mm
