Ignition Key Removal Lock Locking Cable, Disengaging and Engaging

Ignition key removal lock locking cable, disengaging and engaging

Applies only to vehicles with automatic transmission
Adjust locking cable.

Disengaging
- Remove steering wheel.
- Remove steering column switch trim.
- Place selector lever in position "P" if necessary.

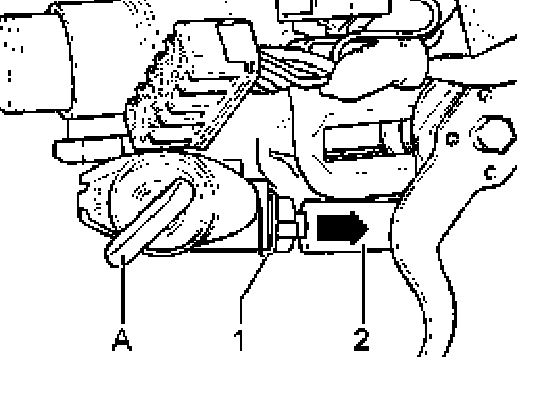

- Turn ignition key - A - into position "ignition on".
- Press clip - 1 - upward or downward according to installation position and simultaneously pull out locking cable - 2

Engaging
- Place selector lever in position "P".

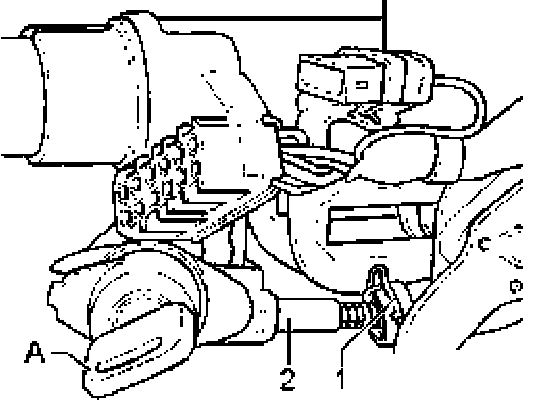

- Turn ignition key - A - into position "ignition on".
- Slide locking cable - 2 - in steering lock housing until clip - 1 - engages.
