Cross Member For Steering Column - New Beetle Convertible, Assembly Overview

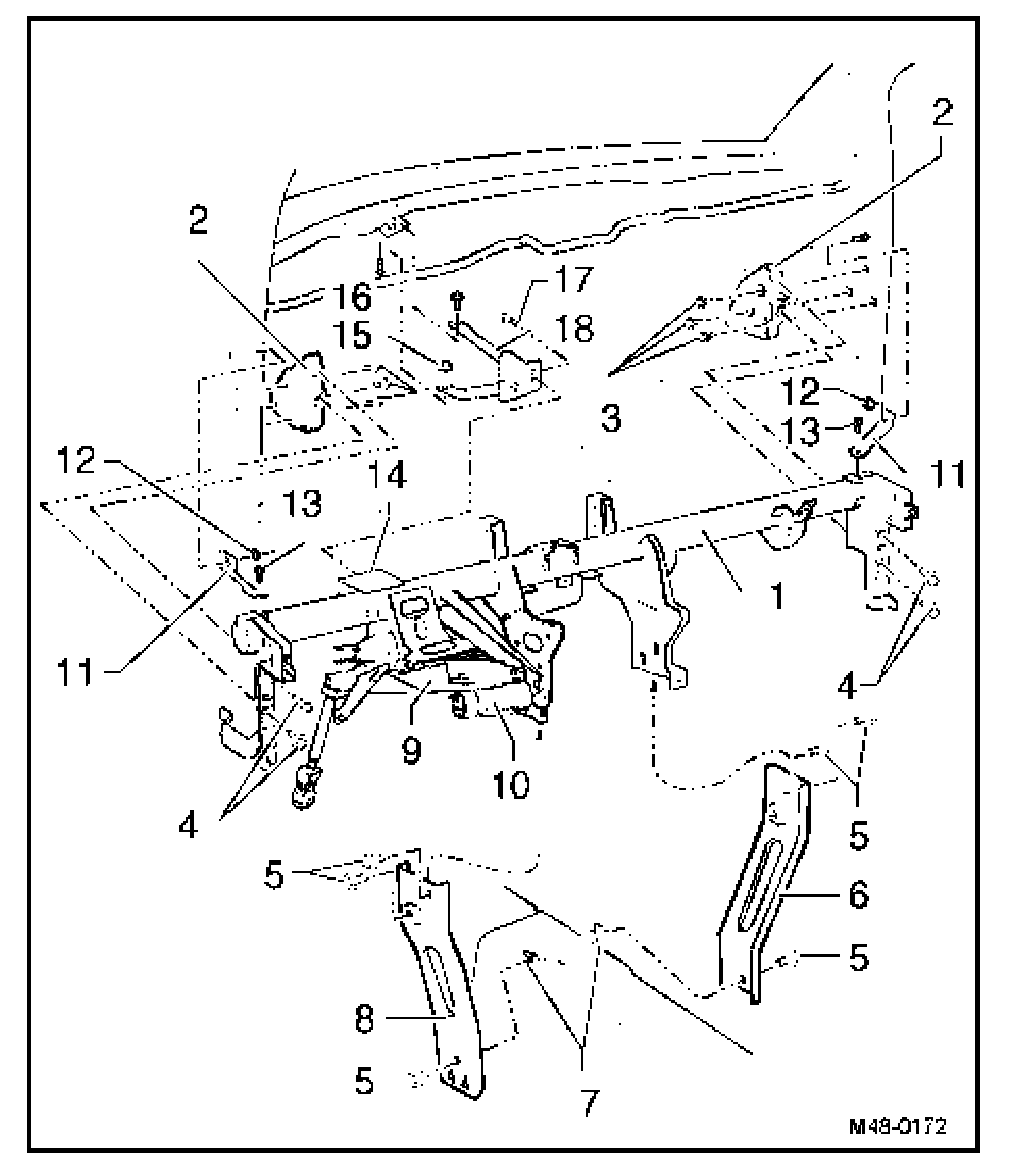

Cross member for steering column - New Beetle Convertible, assembly overview





1. Cross member for steering column
2. Adjustment bracket
3. Hex bolt
^ M8 x 22

4. Hex bolt
^ M8x 18

5. Hex bolt
^ M8x 18

6. Right brace
7. Speed nut
8. Left brace
9. Steering column
10. Steering lock housing
11. Fitting bracket
12. Hex nut
^ M8

13. Socket head bolt
^ M8x 16

14. Bulkhead connection
15. Hex nut
^ M8

16. Hex bolt
^ M8x 18

17. Hex bolt
^ M8 x 23

18. Support
