Power Steering Pump With Hydraulic Lines, Vehicles With Direct Shift Transmission 02E, Assembly Overview

Power steering pump with hydraulic lines, vehicles with direct shift transmission 02E, assembly overview

Assembly notes for pressurized line and intake hose mount on power steering pump

Assembly notes for pressurized line and intake hose mount on direct shift transmission 02E





1. Refill tank
2. Power steering pump
^ Checking delivery pressure
^ Before installing, fill with power steering fluid.

3. Pressurized line mount
^ On power steering pump

4. Intake hose mount
^ On power steering pump

5. Intake hose
6. Intake hose mount
^ On cylinder block

7. Pressurized line
8. Pressurized line mount
^ On direct shift transmission 02E

9. Return hose mount
^ On direct shift transmission 02E

10. Pressurized line mount
^ On transmission console

11. Return hose

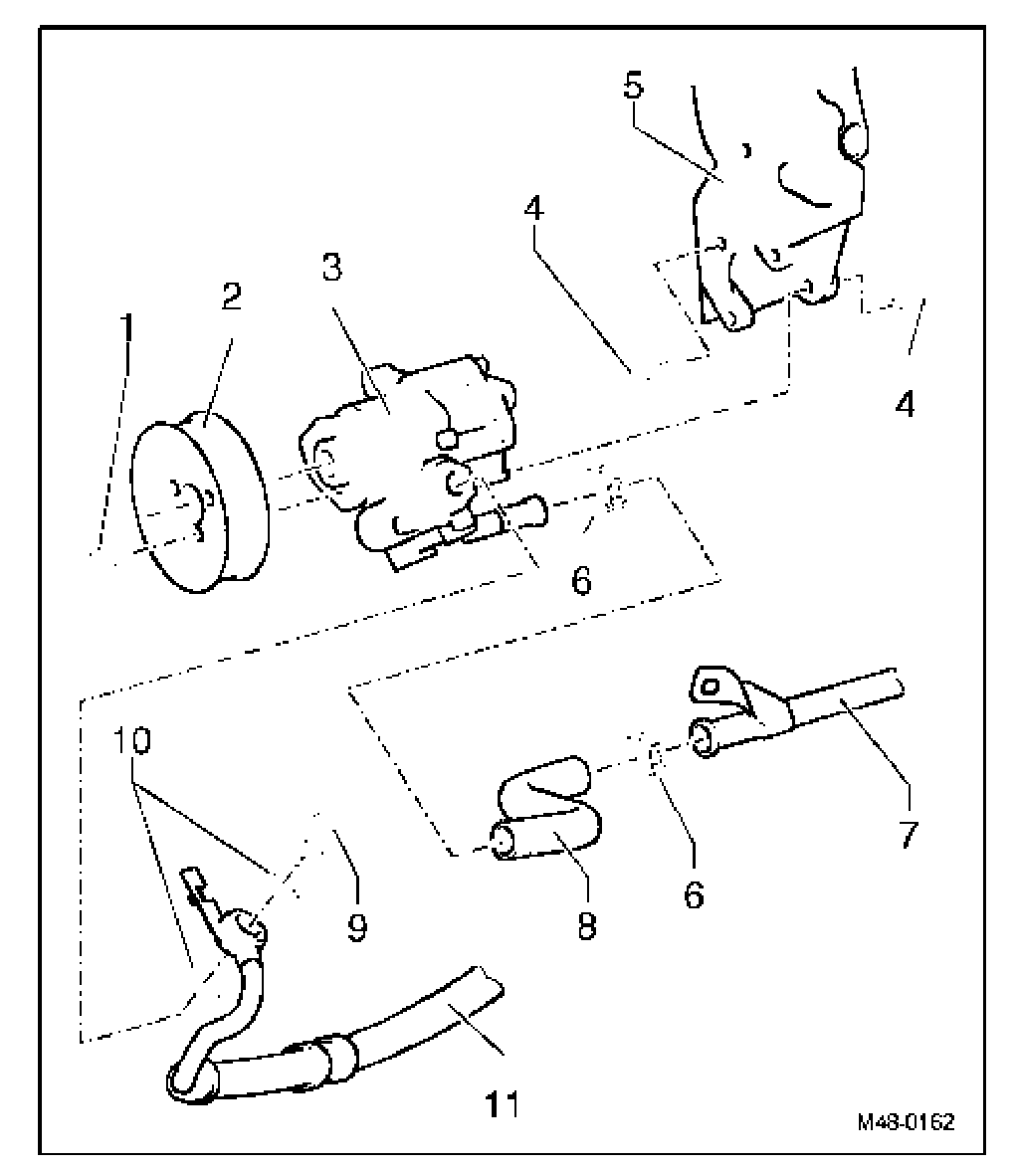

Pressurized line and intake hose mount on power steering pump, vehicles with direct shift transmission 02E and 74 kW TDI pump injector engine





1. Socket head bolt
^ M8x 14

2. Belt pulley
3. Power steering pump
^ Checking delivery pressure
^ Before installing, fill with power steering fluid; High-mounted power steering pump

4. Hex bolt
^ M8 x 40

5. Bracket
^ On cylinder block

6. Spring clip
7. Intake line
8. Intake hose
9. Banjo fitting
^ M16 x 1.5

10. Seals
^ Replace

11. Pressurized line

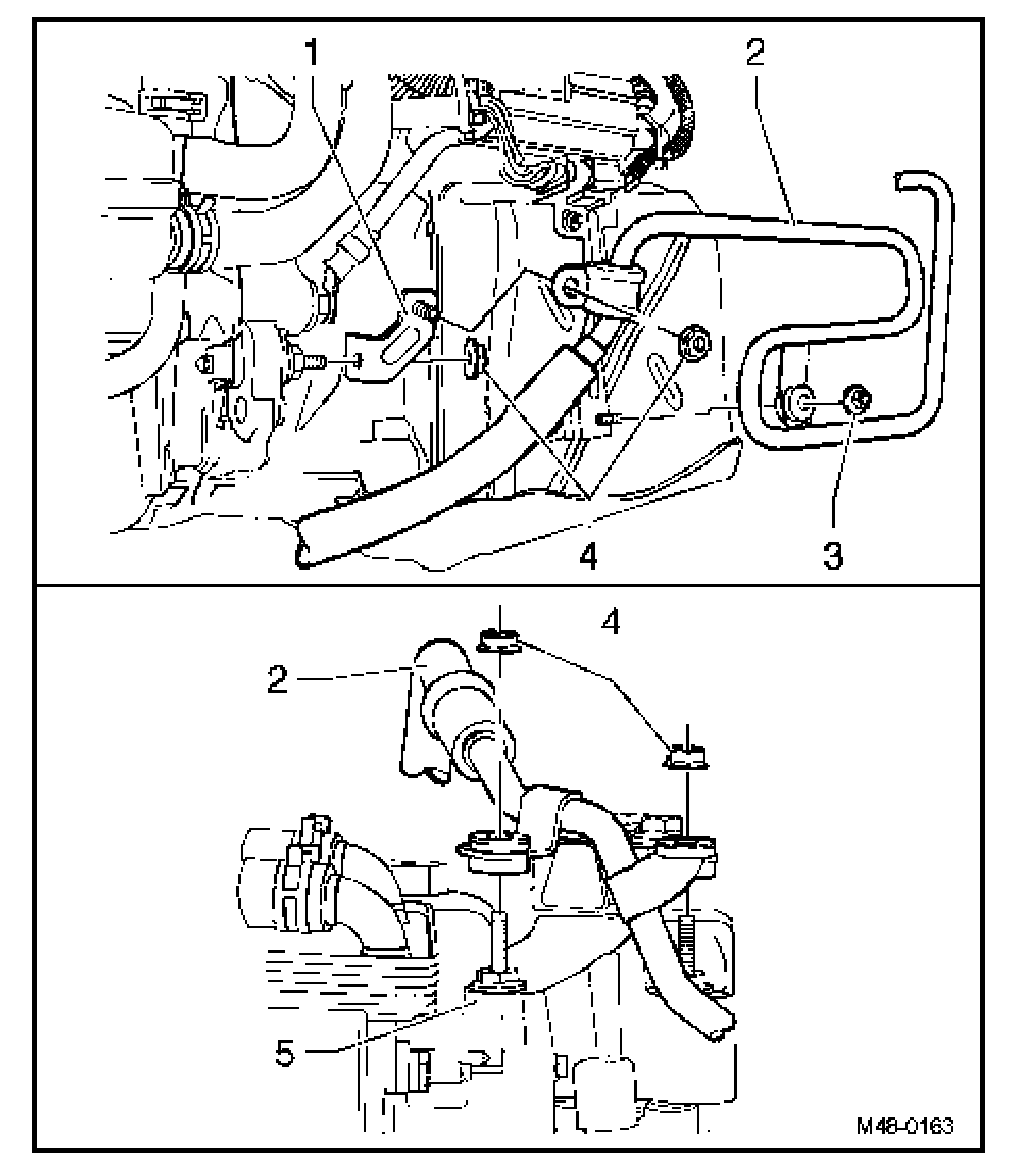

Pressurized line and return hose mount on direct shift transmission 02E





1. Bracket
2. Pressurized line
3. Hex nut
^ M6

4. Hex nut
^ M8

5. Transmission console
