Power Steering Pump With Hydraulic Lines, Vehicles With Automatic Transmission 09G, Assembly Overview

Power steering pump with hydraulic lines, vehicles with automatic transmission 09G, assembly overview

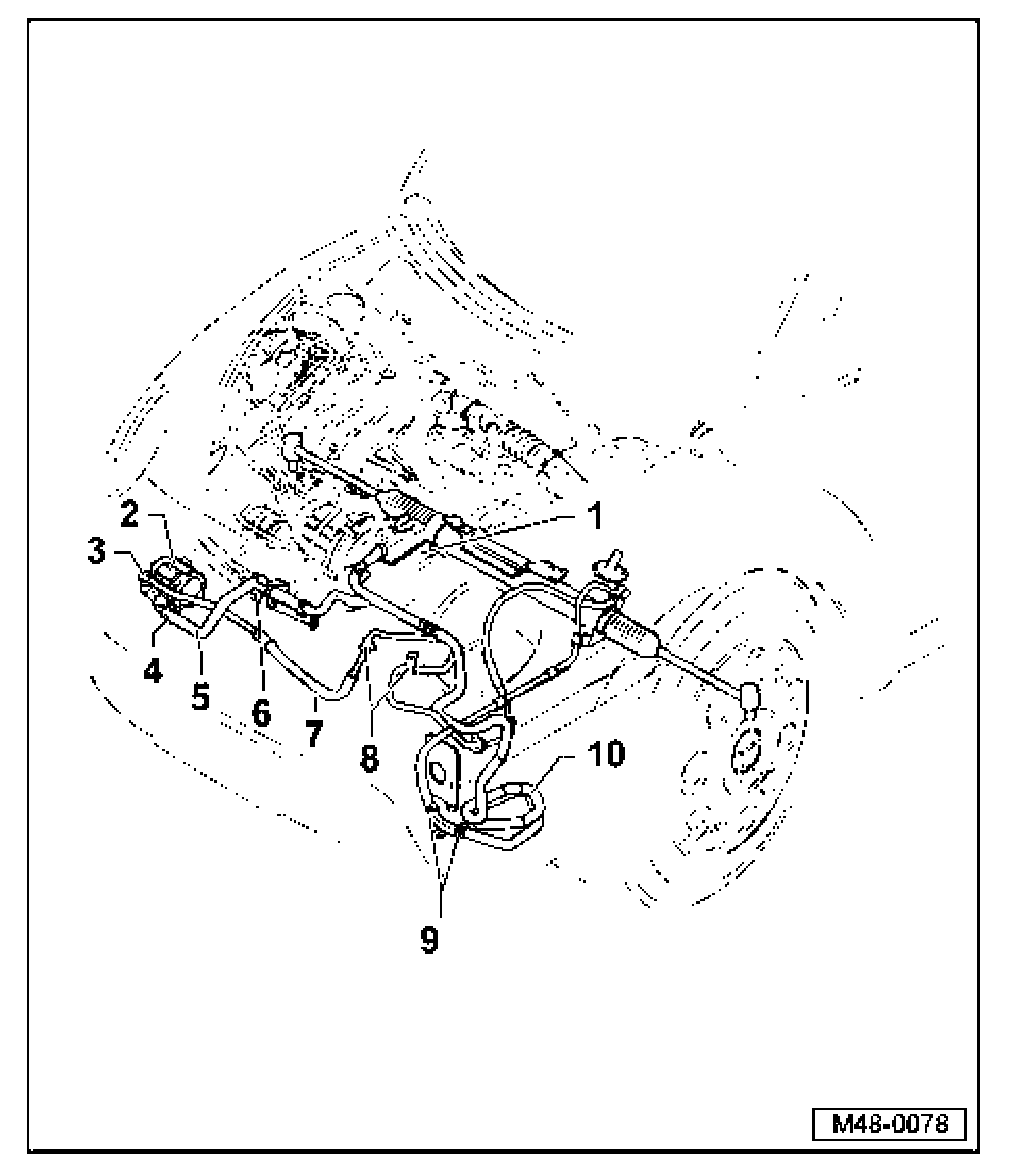

Assembly notes for pressurized line and intake hose mount on power steering pump

Assembly notes for pressurized line and intake hose mount on automatic transmission





1. Refill tank
2. Power steering pump
^ Check delivery pressure
^ Before installing, fill with power steering fluid

3. Pressurized line mount
^ On power steering pump

4. Intake hose mount
^ On power steering pump

5. Intake hose
6. Intake hose mount
^ On cylinder block

7. Pressurized line
8. Pressurized line mount On automatic transmission 09G

9. Return hose mount
^ On automatic transmission 09G

10. Return hose

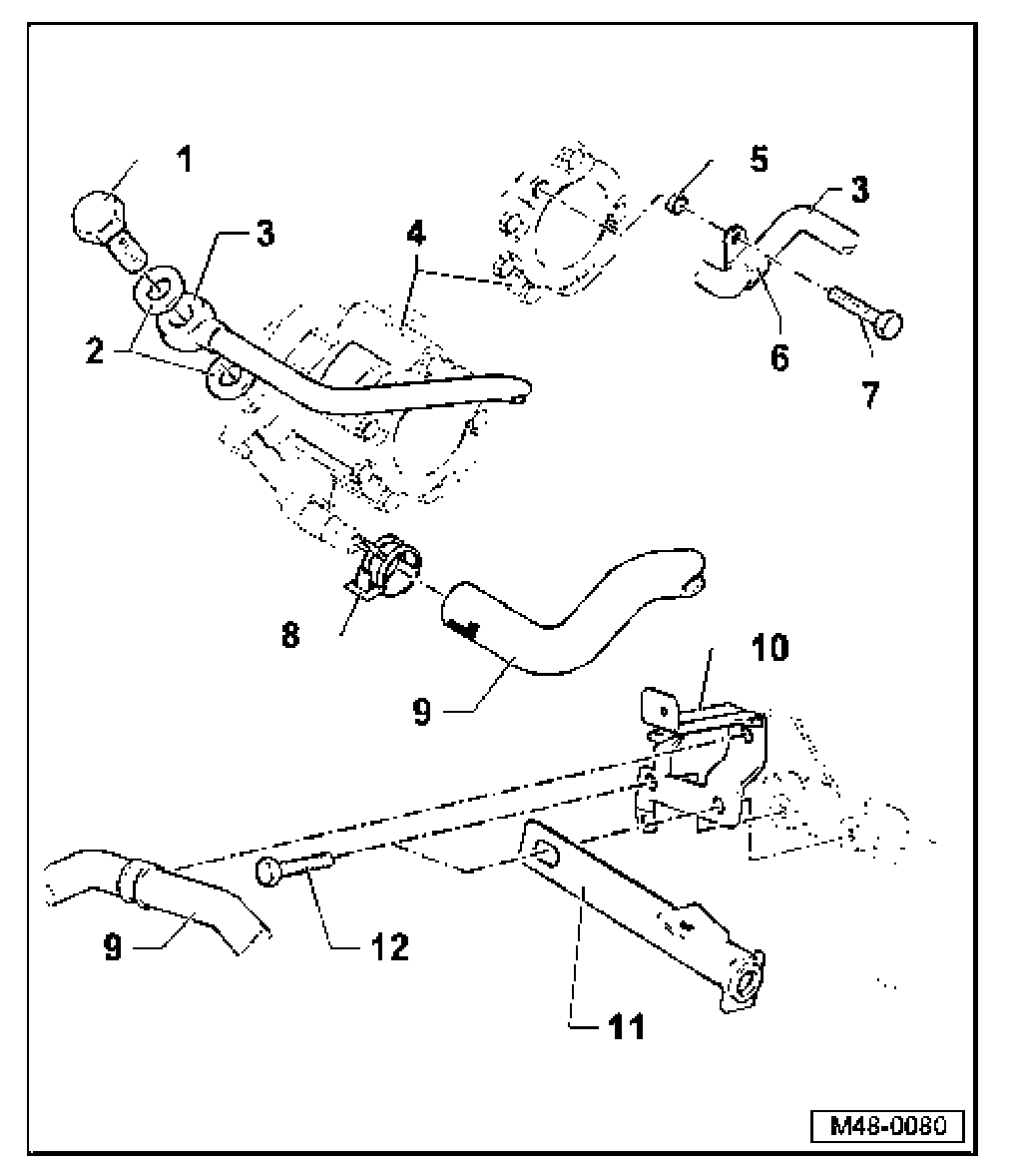

Pressurized line and intake hose mount on power steering pump





1. Banjo fitting
^ M16 x 1.5

2. Seals
^ Replace

3. Pressurized line
4. Power steering pump
^ Checking delivery pressure
^ Before installing, fill with power steering fluid

5. Socket
^ For power steering pumps manufactured by Kayaba

6. Clamp
7. Hex bolt
^ M8 x 28

8. Spring clip
9. Intake hose
10. Bracket
^ On cylinder block

11. Bracket
12. Hex bolt
^ M10 X 25

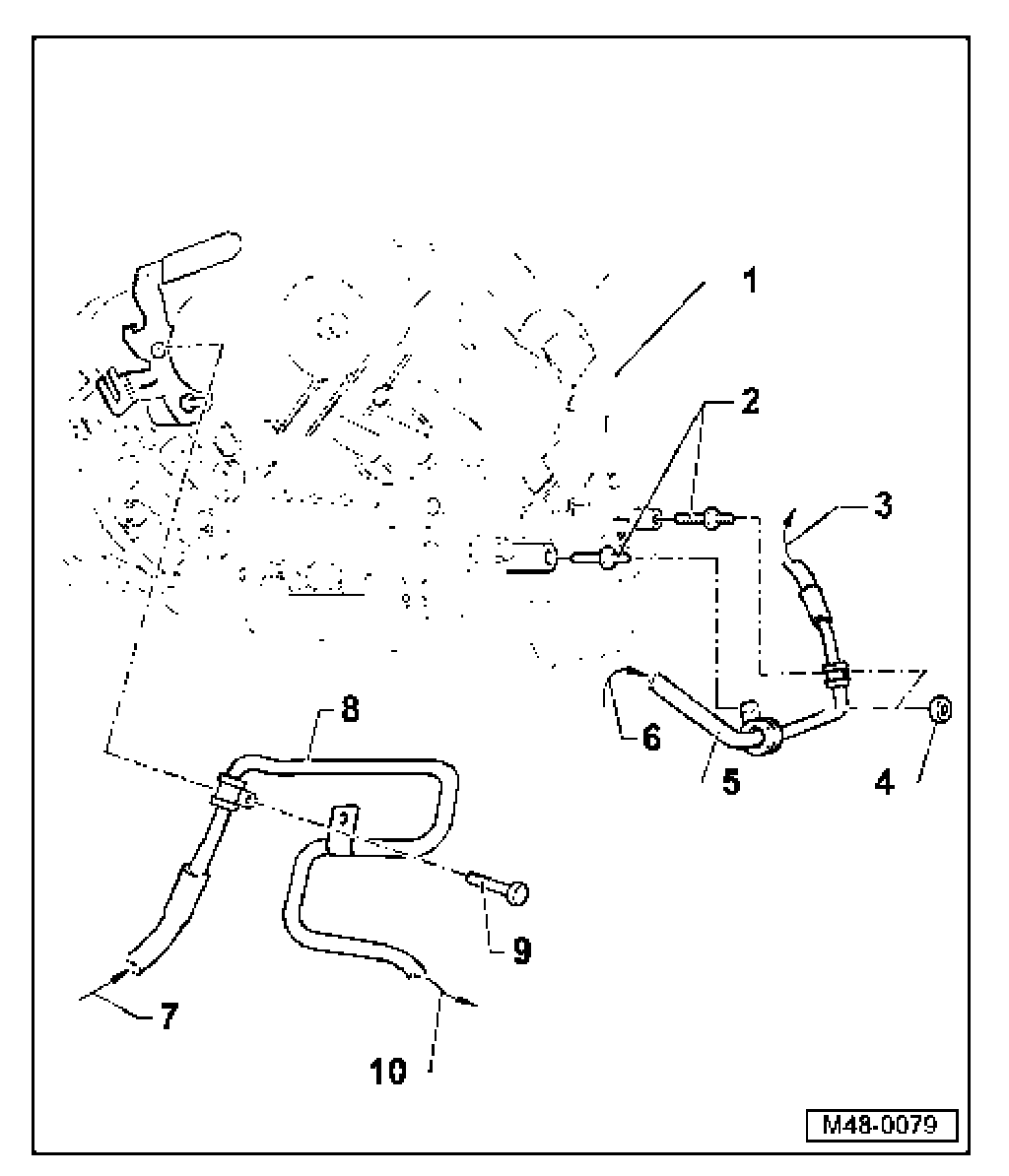

Pressurized line and return hose mount on automatic transmission 09G





1. Automatic transmission
2. Double bolt
^ M10 x 20 - M8 x 12

3. To refill tank
4. Hex nut
^ M8

5. Pressurized line
6. From steering gear
7. From power steering pump
8. Pressurized line
9. Hex bolt
^ M8 x 28

10. To steering gear
