Low-Mounted Power Steering Pump, Assembly Overview

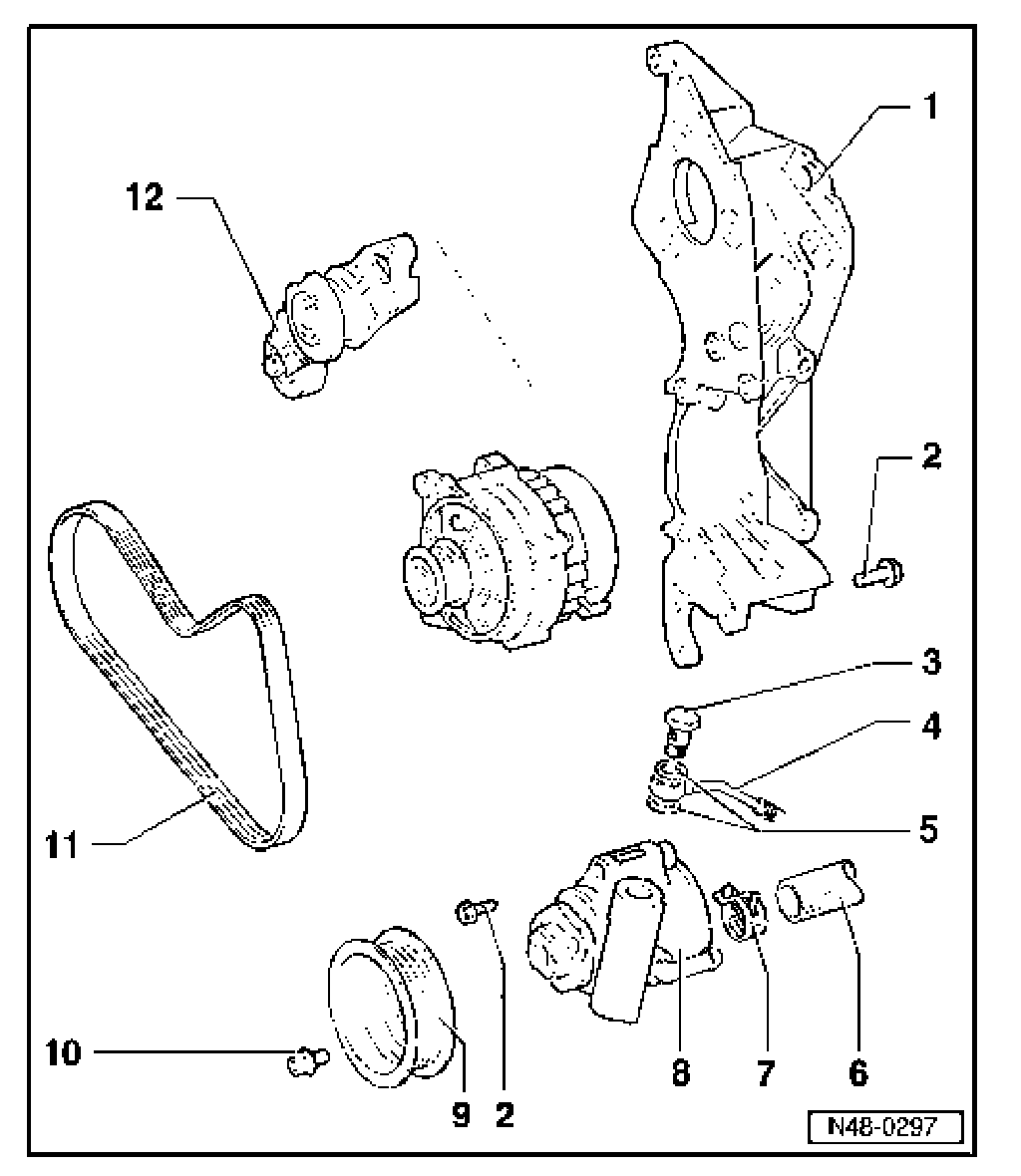

Low-mounted power steering pump, assembly overview





1. Bracket
2. Hex bolt
^ M8 x 40

3. Banjo fitting
^ M16 x 1.5

4. Pressurized line
5. Seals
^ Replace

6. Intake hose
7. Spring clip
8. Power steering pump
^ Check delivery pressure
^ Before installing, fill with power steering fluid

9. Belt pulley
10. Socket head bolt
^ M8x 14

11. Ribbed belt
^ Mark direction of travel before removing
^ Allocation Electronic parts catalog "ETKA"
^ Inspect condition Ribbed belt

12. Ribbed belt tensioner
