High-Mounted Power Steering Pump, Assembly Overview

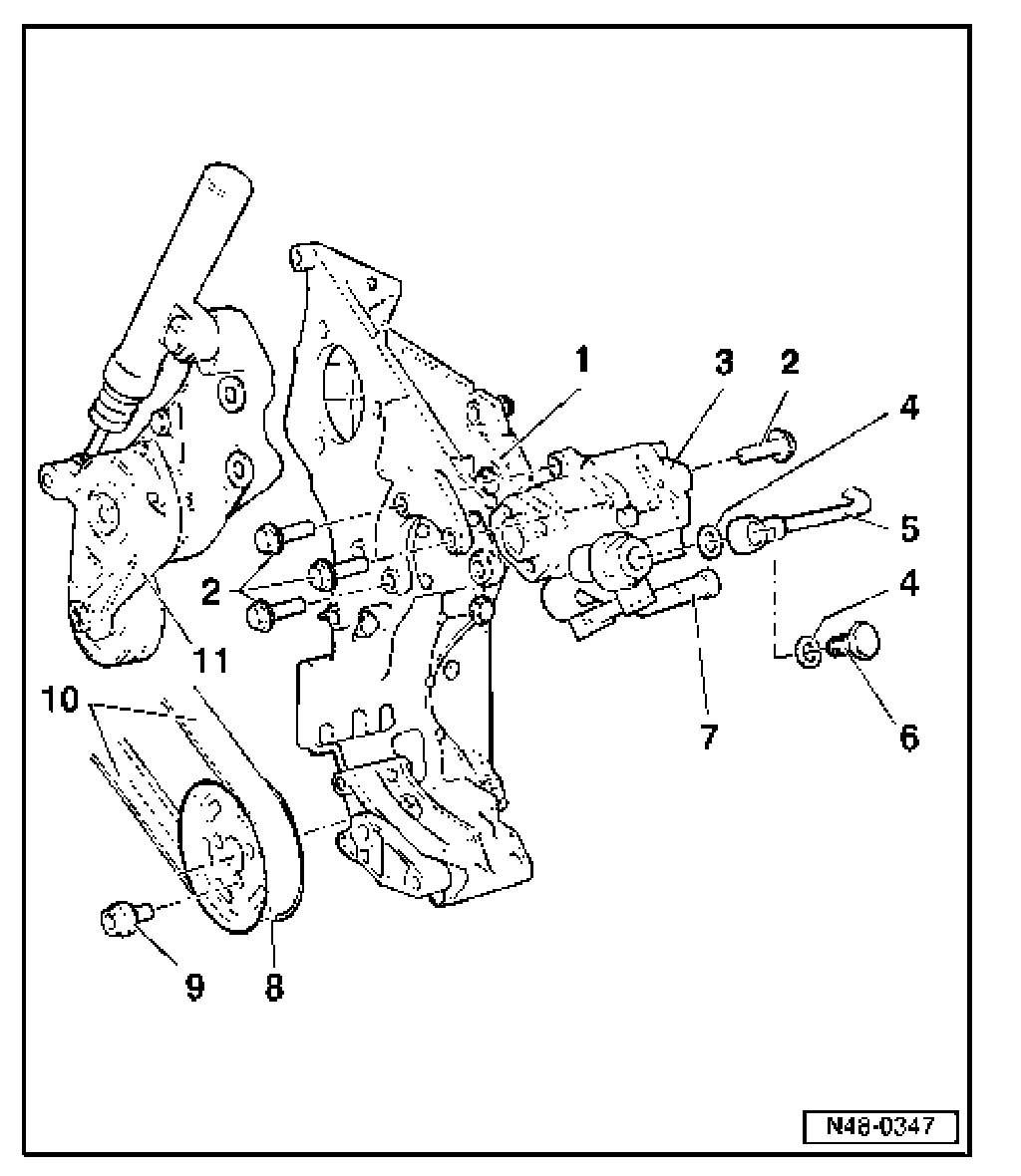

High-mounted power steering pump, assembly overview





1. Bracket
2. Hex bolt
^ M8 x 40

3. Power steering pump
^ Checking delivery pressure
^ Before installing, fill with power steering fluid

4. Seals
^ Replace

5. Pressurized line
6. Banjo fitting
^ M16 x 1.5

7. Intake hose
8. Belt pulley
9. Socket head bolt
^ M8x 14

10. Ribbed belt
^ Mark direction of travel before removing
^ Allocation Electronic parts catalog "ETKA"
^ Inspect of condition Ribbed belt

11. Ribbed belt tensioner
