Compact Generator (GEN) From 06.99

Compact Generator (GEN) From 06.99

As of model year 2000, compact generators are being implemented with new structures and new terminal assignments.

External characteristics of the new compact generators that differ from the previously used generators, include:
- modified Voltage Regulator (VR)
- oval, radially sealed connector mount for the 2-pin connector housing in place of the previous, angular 2-pin plug connection
- modified terminal assignments at connections

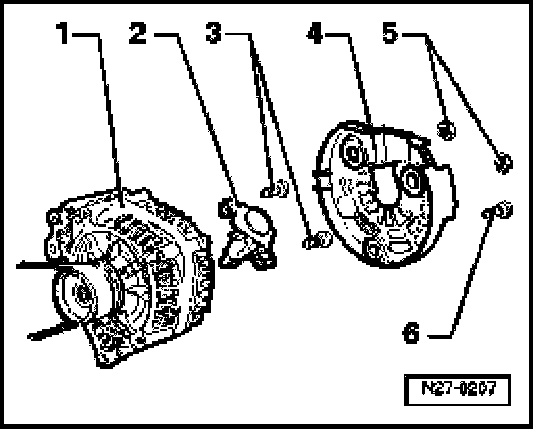

- Components

1. Generator (GEN)
2. Voltage regulator (VR)
3. Screws
4. Protective cap
5. Hex nuts
6. Screws
