Generator (GEN) Ribbed Belt Pulley, Replacing

Generator (GEN) Ribbed Belt Pulley, Replacing

Special tools and equipment

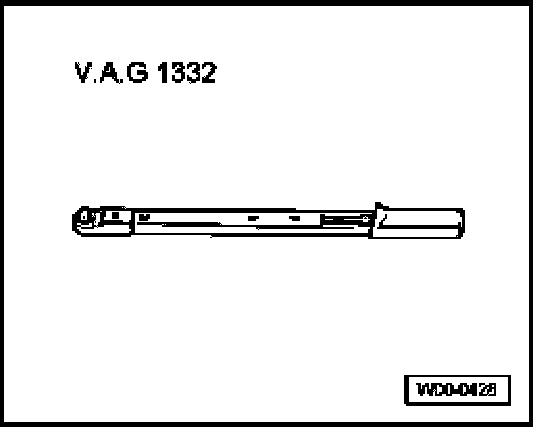

- VAG1332 torque wrench (40 - 200 Nm) or equivalent







- Multi-point socket 3310

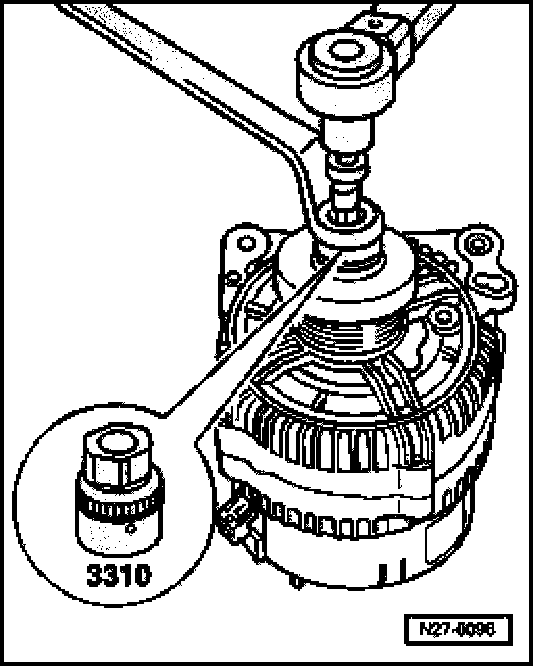

Use multi-point socket 3310 to loosen and tighten ribbed belt pulley as illustrated.

Ribbed belt pulley nut tightening torque: 65 Nm ± 5 Nm (48 ± 5 ft lb).
