Rear Suspension
Rear Suspension
Tightening torques of rear axle

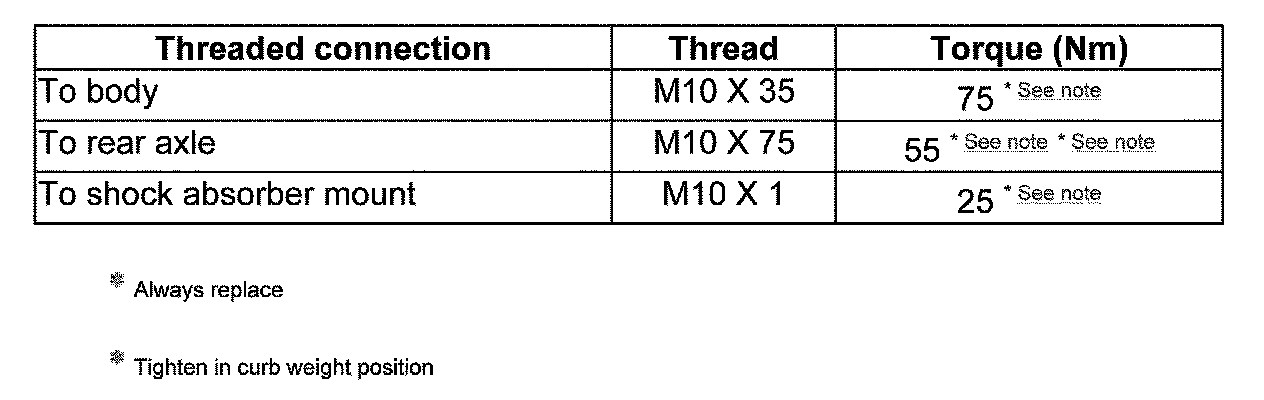

Rear axle

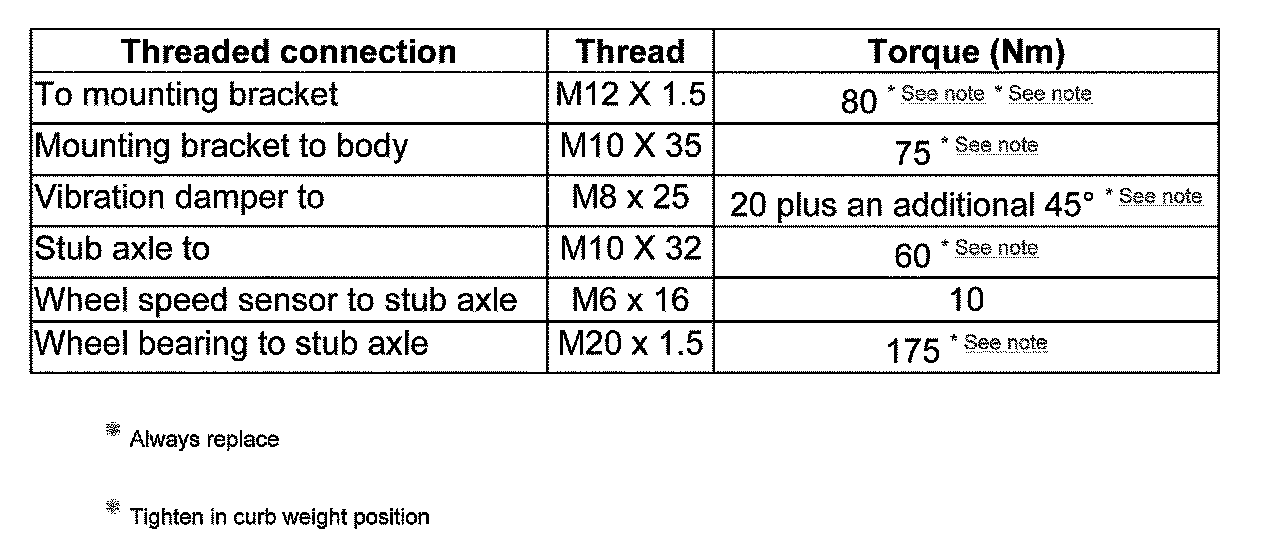

Shock absorbers

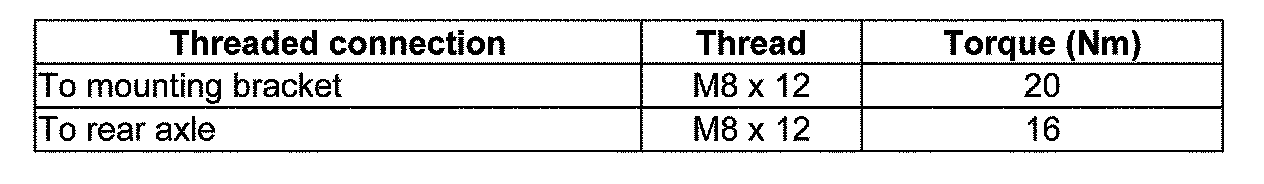

Left Rear Level Control System Sensor G76 on rear axle
