Rear Wheel Alignment

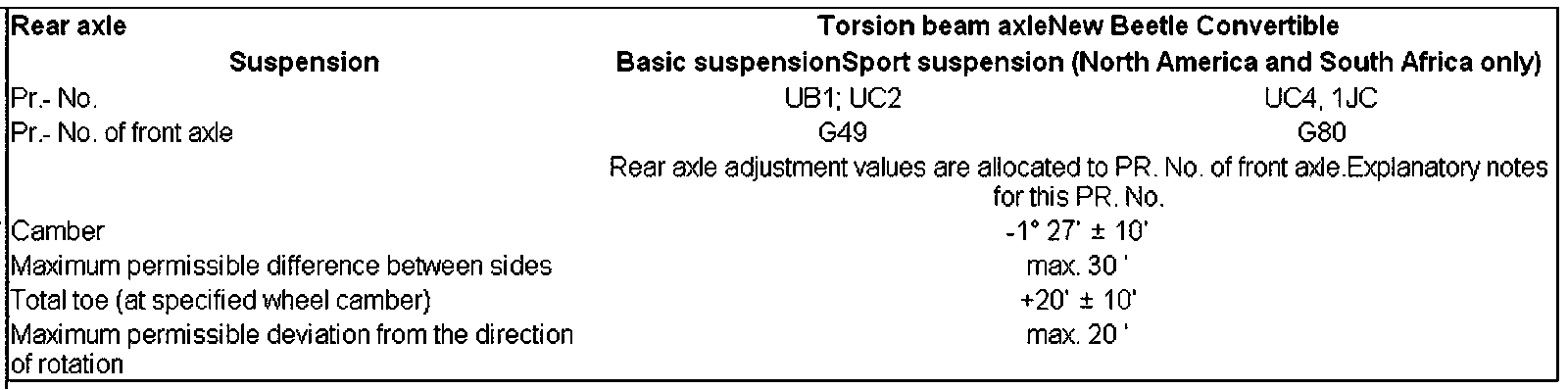

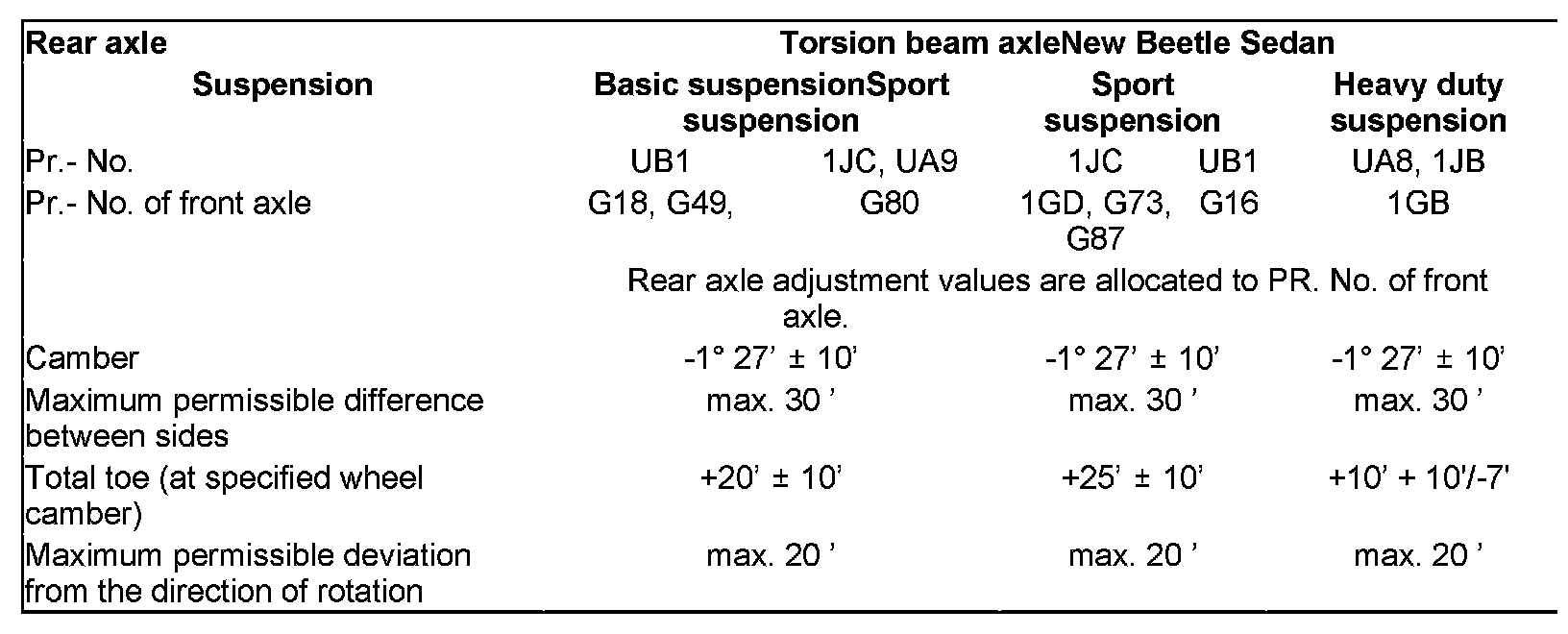

Rear Wheel Alignment Specifications

Note: Camber is not adjustable. Only slight corrections are possible by moving the subframe. Adjustment range approx. 10' to 15'
