Home >> Volkswagen >> 2005 >> New Beetle Convertible (1Y1) L4-2.0L (BEV) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Fuel Delivery and Air Induction >> Turbo Boost Sensor >> Locations

Turbo Boost Sensor: Locations

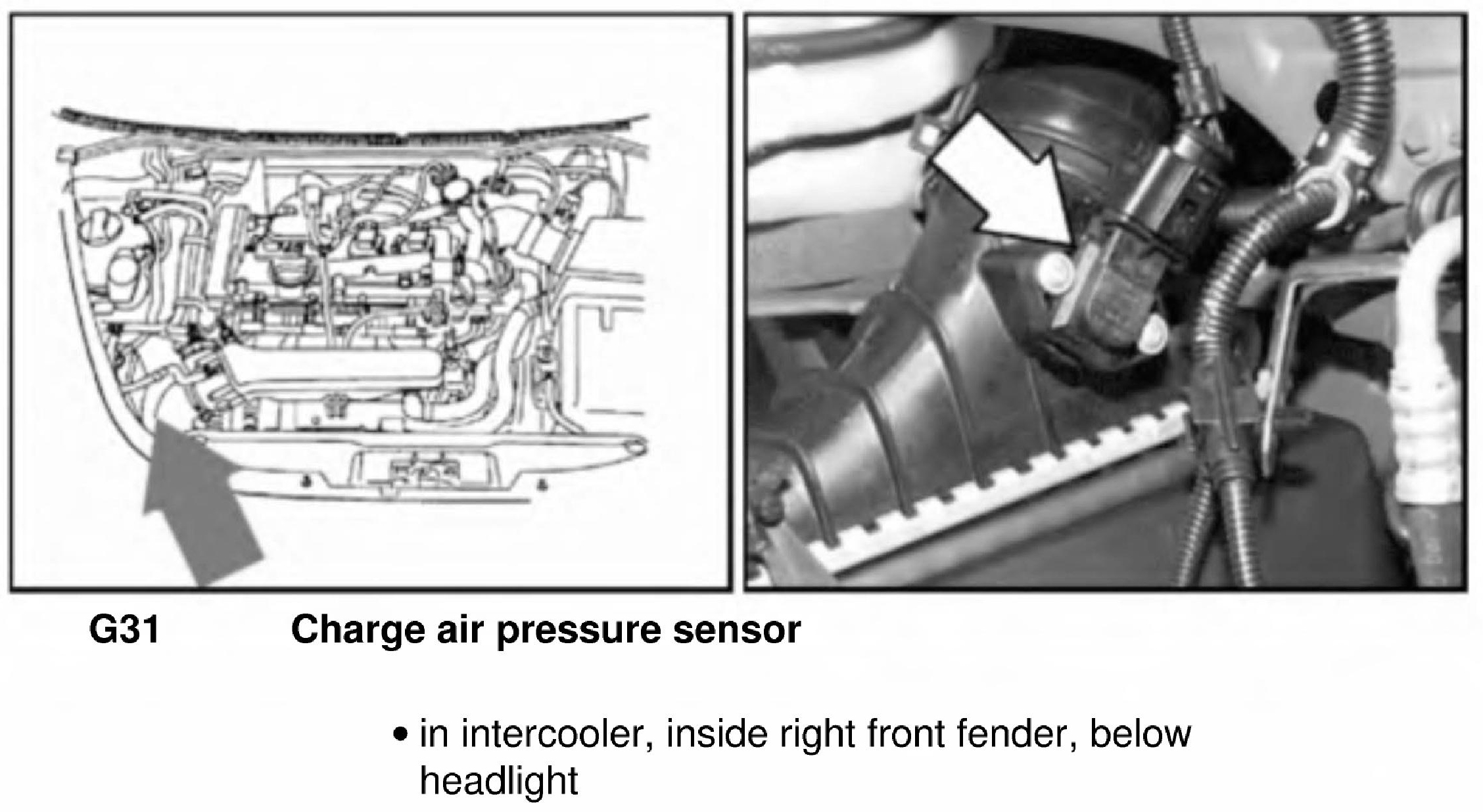

Charge Air Pressure Sensor G31:
