Vehicle Speed Sensor: Service and Repair

Vehicle Speed Sensor (VSS) (Vehicles With 01 M Transmission), Replacing

Recommended special tools and equipment

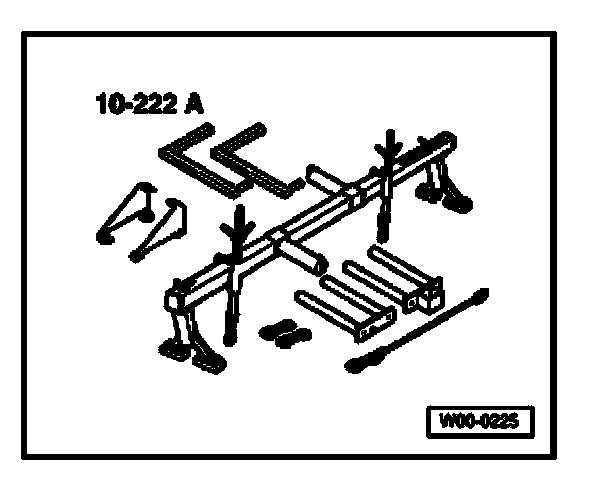

- 10-222A Engine support bridge

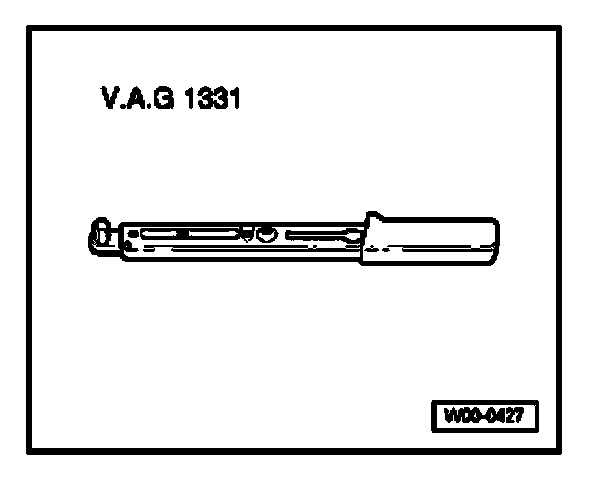

- V.A.G 1331 Torque wrench (5 to 50 Nm)

Requirements
- Selector lever must be in -P- position.
- Parking brake must be engaged or else daylight driving lights will be switched on.
- Ignition switched off.

Work procedure
- Determine whether a coded radio is installed. In this case, determine the anti-theft coding.
- Switch ignition off and disconnect battery Ground (GND) strap.
- Remove battery.
- Remove battery holder.

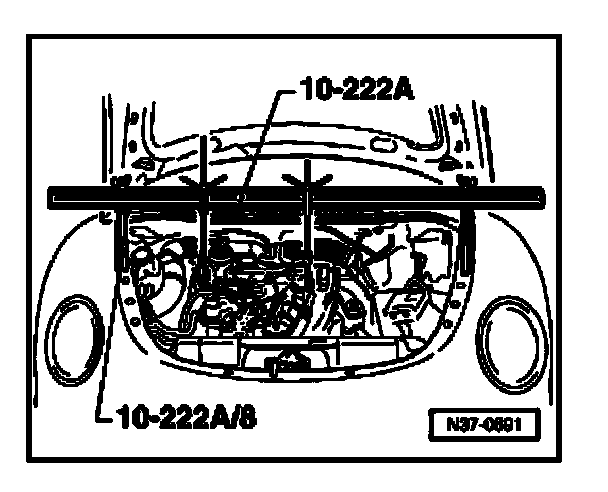

- Position 10-222A engine support bridge with 10-222A/8 brackets as shown and support engine/transmission in this position.
- Remove bracket for power steering pressure line.

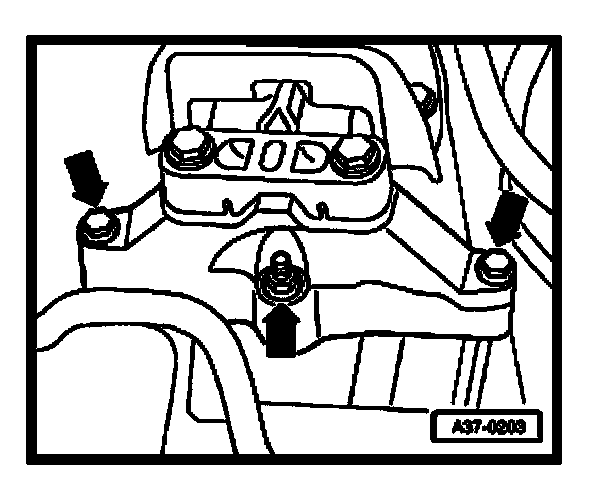

- Remove mounting bolts (arrows) from transmission holder.

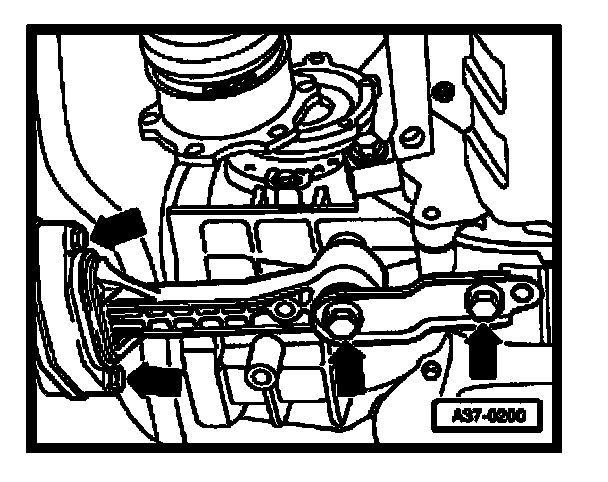

- Remove mounting bolts (arrows) for pendulum support and remove pendulum support.







- Lower transmission approx. 60 mm -dimension a-.

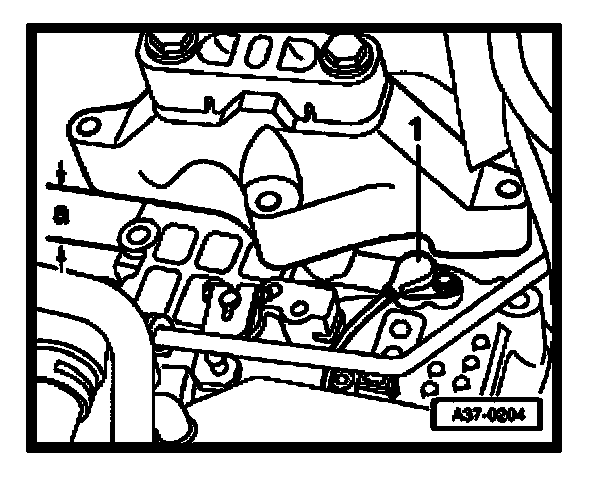

- Remove mounting bolt and remove sensor -1- from transmission.
- Disconnect harness connector from Vehicle Speed Sensor (VSS) -G68-.

Installation is performed in reverse order of removal.
- Replace O-ring.
- Install sensor and tighten to 10 Nm.

Tightening torques of transmission holder and pendulum support.
- Erase DTC memory of Transmission Control Module (TCM). Diagnostic mode 4: Reset/erase diagnostic data.
- Generate readiness code.
