Headlamp Switch: Service and Repair

Light Switch -E1-, Removing and Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.







- Turn rotary knob of light switch to "0" position.

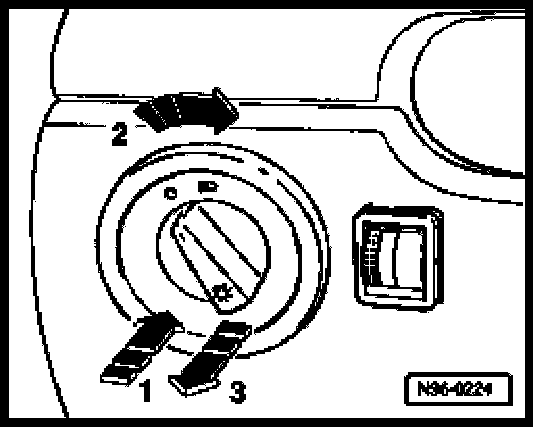

- Press rotary knob inward (arrow -1-) and turn slightly to right (arrow -2-).
- Hold rotary knob in this position and by pulling on rotary knob remove light switch out of instrument panel (arrow -3-).
- Disconnect electrical connection.

Installing
- Connect electrical connection.

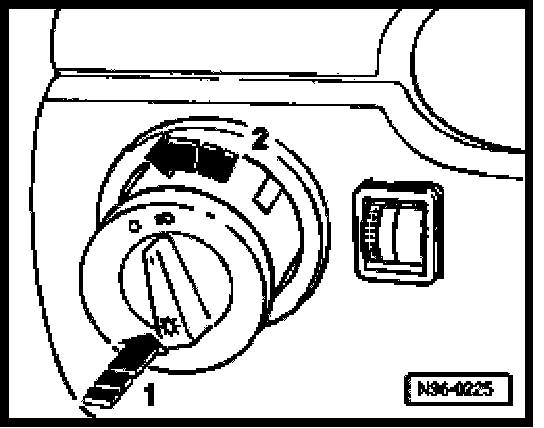

- Hold light switch and press rotary knob inward (arrow -1-) and turn slightly to left (arrow -2-).







- Hold rotary knob in this position and slide light switch into instrument panel.
- Turn rotary knob to "0" position, release and engage switch.
