Connections With Valve For Switches on Refrigerant Circuit
Switches And Sensors On Refrigerant Circuit And Corresponding Connections
NOTE: Switch pressures, removing and installing switches as well as switch arrangement and version, refer to vehicle specific refrigerant circuit.
Connections with valve for switches on refrigerant circuit
CAUTION:
- There is a danger of ice-up.
- Refrigerant may leak out if refrigerant circuit is not discharged.
- Refrigerant must be extracted before removing valve - C -.
- Different threads for switch on high pressure and low pressure sides.
- Only valves and O-ring seals that are resistant to refrigerant R134a and refrigerant oil must be installed.

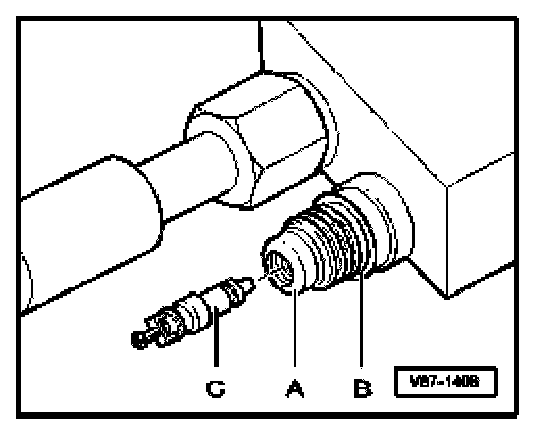

A - Connection (soldered in)
B - O-ring seal
C - Valve (with O-ring seal)
