ABS ITT Mark 20 IE

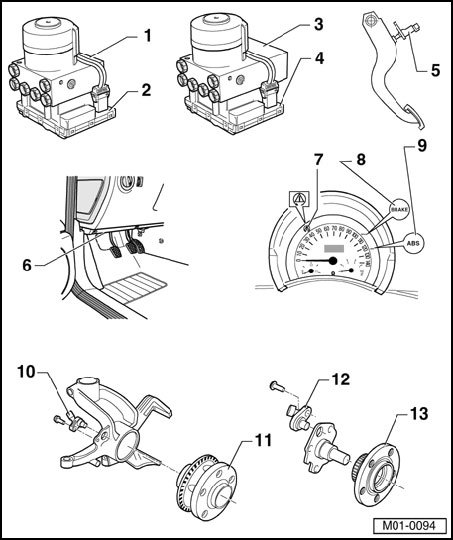

Electrical/electronic components and installation locations





10- ABS wheel speed sensors -G45-/-G47- (front)
^ Checked by On Board Diagnostic (OBD)
^ Before inserting sensor clean inner surface of sensor mounting and coat with lubricating paste G 000 650
^ When connecting wheel speed sensor wire make sure it is not twisted in wheel housing
^ Securing bolt tightening torque -10 Nm (7 ft lb)

11- Wheel hub with wheel speed sensors rotor (front)
12- ABS wheel speed sensor -G44-/-G46- (rear)
^ Checked by On Board Diagnostic (OBD)

13- Wheel hub with wheel speed sensor rotor (rear)
