Power Mirror Switch: Service and Repair

Mirror Adjustment Switch -E43- With Mirror Selector Switch -E48-, Removing and Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove door trim.
- Disconnect electrical connection.

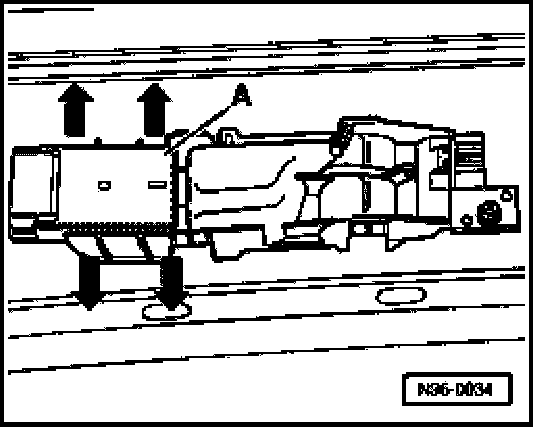

- Pry mounting frame on long switch side -A- outward and remove switches from mounting frame.

Installing
- Insert switch -A- in mounting frame and engage.
- Connect electrical connection.
- Install door trim.
