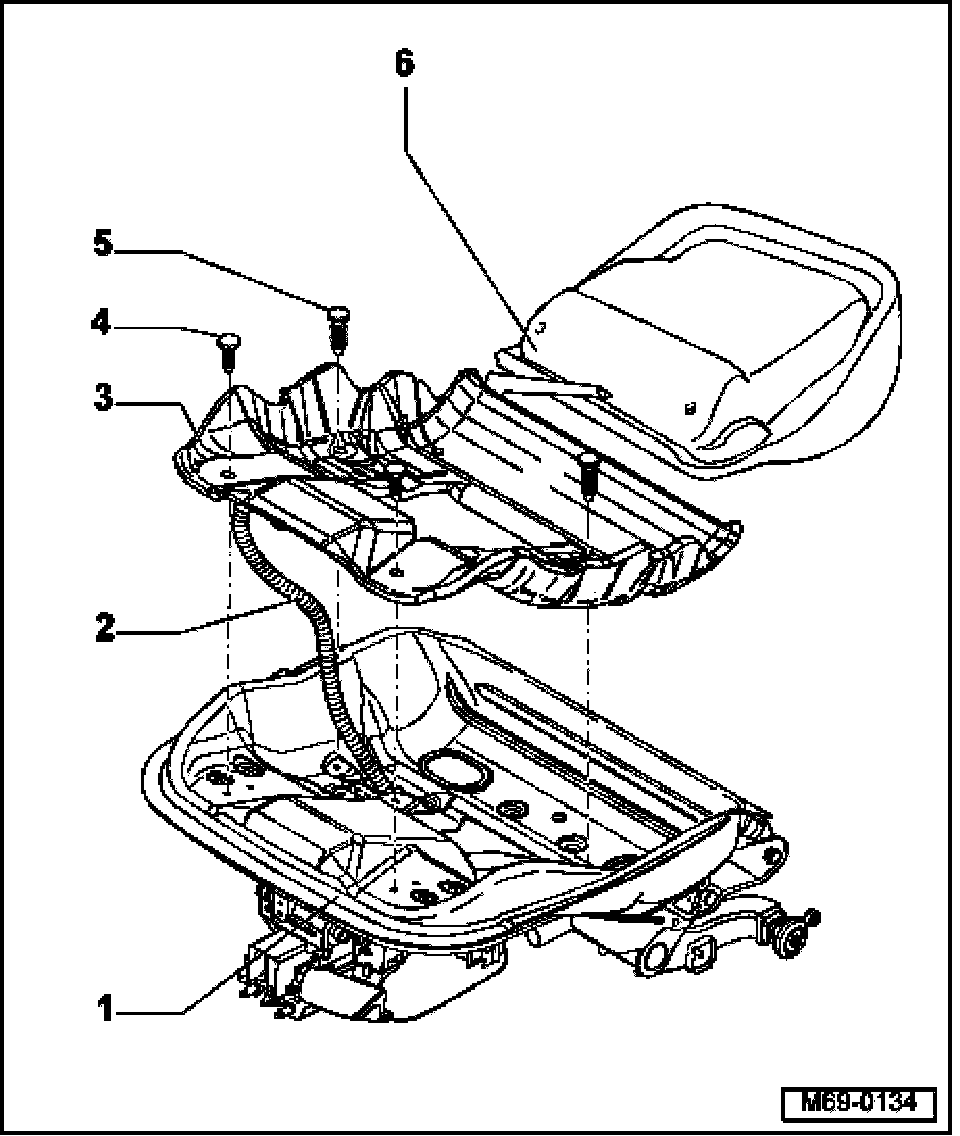

Passive Occupant Detection System (PODS) (USA), Upper View Assembly Overview

Passive Occupant Detection System (PODS) (USA), Upper View Assembly Overview







1. Seat frame
2. Pressure Transfer Hose
3. Sensor mat
- Sensor mat and seat padding are one unit and must not be separated.
4. Clip, forward
- Qty. 2
- Replace clips included in replacement kit
5. Clip, rear
- Qty. 2
- Replace clips included in replacement kit
6. Seat padding
- Sensor mat and seat padding are one unit and must not be separated.
