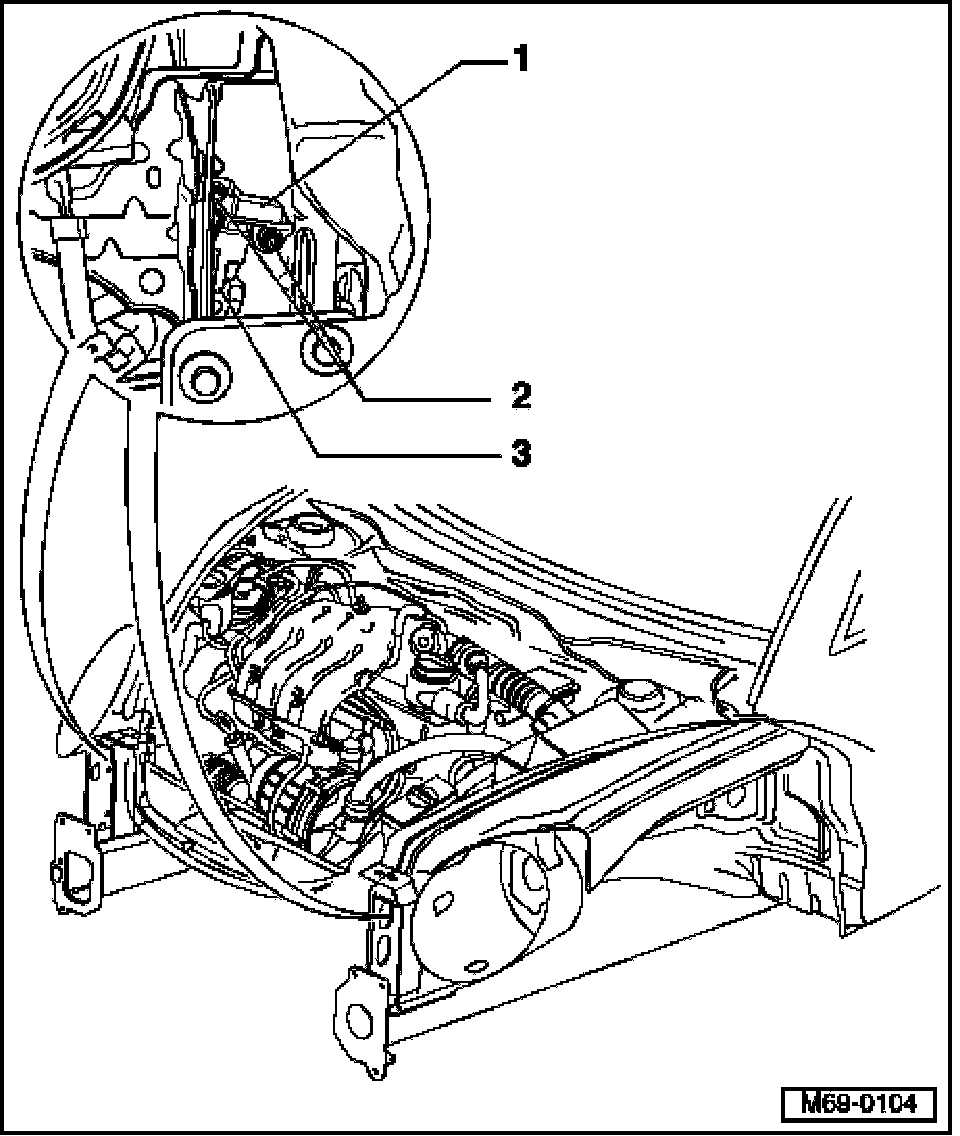

Driver Front Airbag Crash Sensor -G283- and Passenger Front Airbag Crash Sensor -G284-, Assembly Overview



Driver Front Airbag Crash Sensor -G283- and Passenger Front Airbag Crash Sensor -G284-, Assembly Overview







1. Drivers Front Airbag Crash Sensor -G283- and Passengers Front Airbag Crash Sensor -G284-
- In front longitudinal member
2. Combi-nut
- 6 Nm
3. Connector
