Rear Seatbelts - Assembly Overview

Rear Seatbelts - Assembly Overview

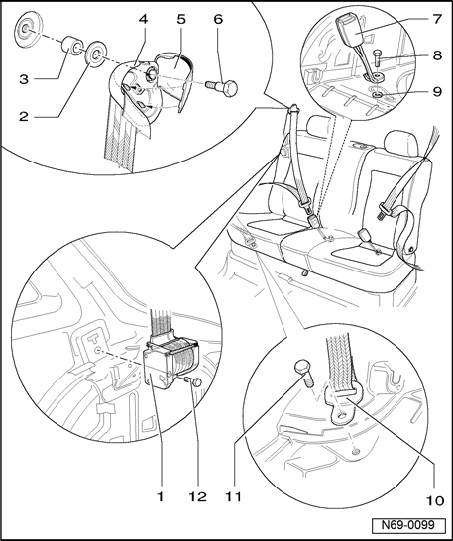

1 - Belt inertia reel
- Retaining tabs determine position of automatic belt retractor.
- Removing:
- Remove side trim.
- Remove automatic belt retractor, belt relay and lower fitting.

2 - Tension disc
3 - Spacer sleeve
4 - Belt relay
5 - Cover cap
6 - Hex bolt
- 40 Nm

7 - Rear belt latch
8 - Hex bolt
- 40 Nm

9 - Gasket
10 - Lower fitting
11 - Hex bolt
- 40 Nm

12 - Hex bolt
- 40 Nm
