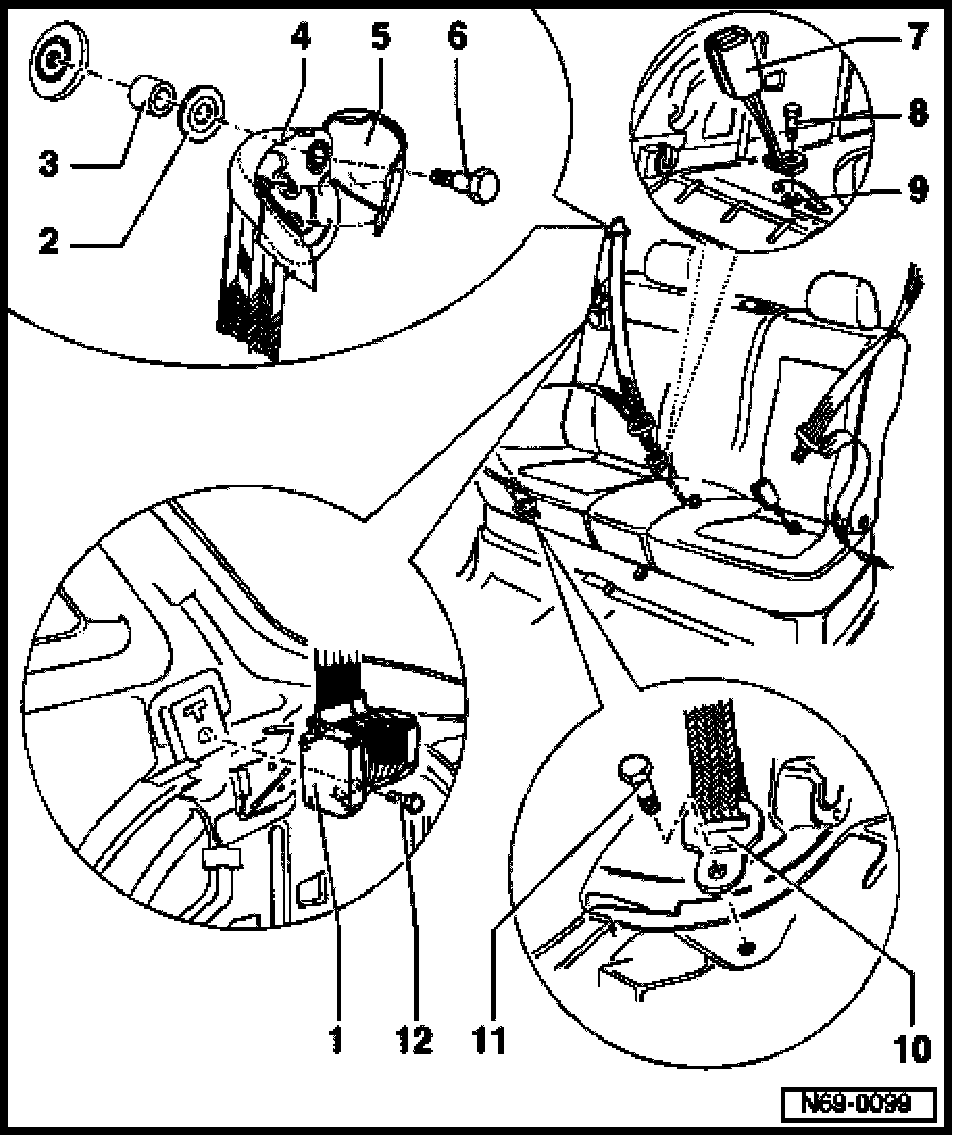

Rear Seat Belts, Assembly Overview

Rear Seat Belts, Assembly Overview







1. Belt tensioner
- Retaining lugs determine position of belt inertia belt
- Removing:
- Remove side panel trim.
- Remove belt tensioner -1-, belt relay fitting-4- and lower anchorage -10-.
2. Special washer
3. Spacer sleeve
4. Belt relay
5. Cover cap
6. Hex bolt
- 40 Nm
7. Rear seat belt buckle
8. Hex bolt
- 40 Nm
9. Seal
10. Lower anchorage
11. Hex bolt
- 40 Nm
12. Hex bolt
- 40 Nm
